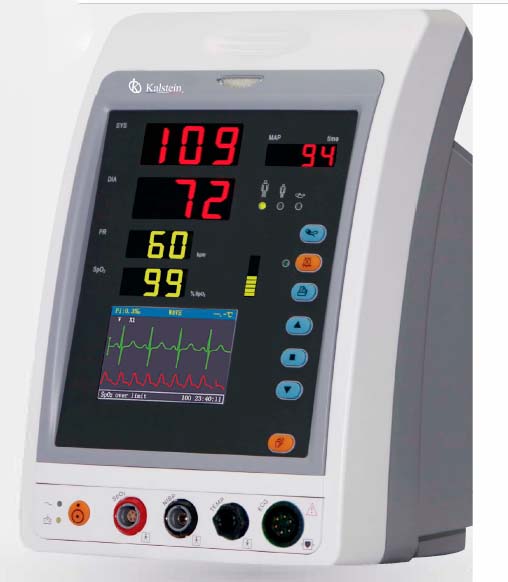

A pediatric vital signs monitor or also called a child monitor is an electronic equipment that allows to detect, process and continuously display the vital signs of the pediatric patient such as: breathing rate, blood pressure, body temperature and pulse.
Vital signs refer to the external manifestation of basic vital functions such as breathing, circulation and metabolism. Its variations express changes that are generated in the body, some of physiological origin and others of pathological origin.
A pediatric vital signs monitor works differently for each vital sign in the case of heart rate amplifying the electrical potentials of the heart, in the case of respiratory rate magnifies the chest respiratory movements, and blood pressure and oxygen saturation will depend on the intensity of the pulse.
Pantalla LCD de alta resolución de 12,1 pulgadas; Pantalla táctil de 35 millones de clics de larga duración con tecnología Accutouch; Máximo 168 horas de...
15 inch high-brightness touch screen; triple color eye-catching alarm light; concealed buttons; built-in lithium battery. With the rapid development of medical...
Adult, kid and newborn monitoring are supported;Slim body with a hidden handle, easy to move...
7 inch TFT Screen;Digital display and waveform oscilloscope of twins’s heart rate (FHR), uterine contraciton pressure (Toco) value and fetal movement;High...
A patient monitor is a medical device that collects and stores the vital signs of the patient, which together with alarm systems, process and record the parameters of the same. They are teams capable of provide operating facilities for medical staff and modern medical practice. Currently, these patient monitors collect information of different physiological parameters, in addition to store trends and events of arrhythmias.

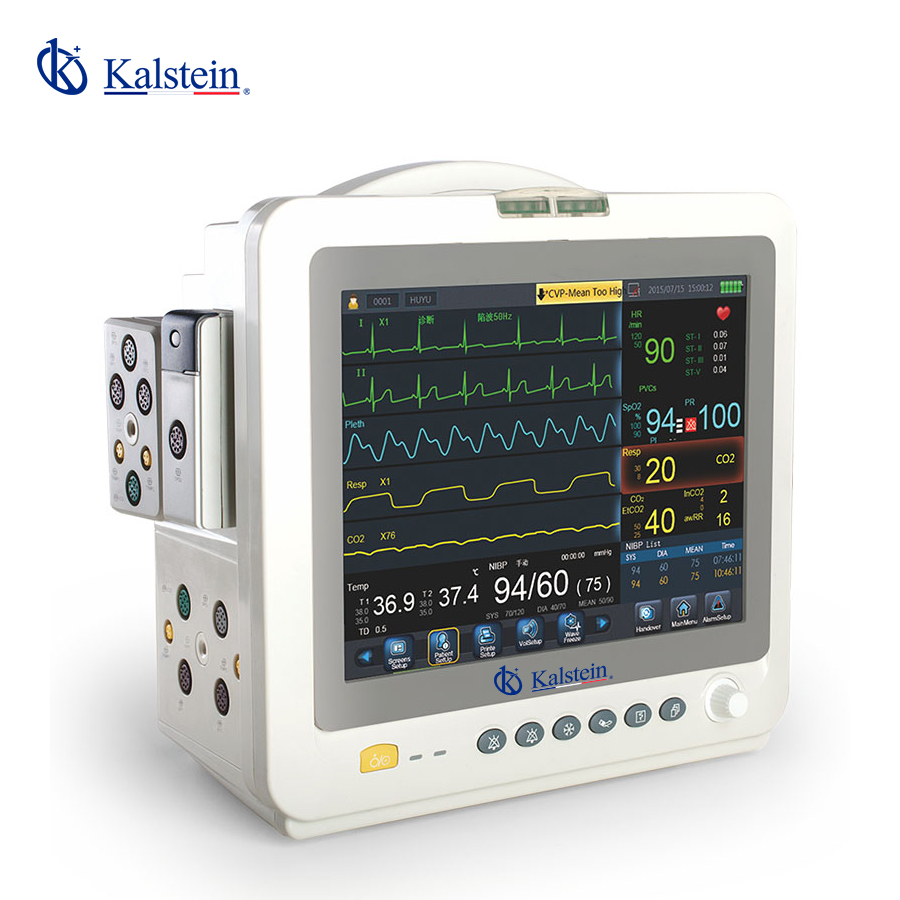

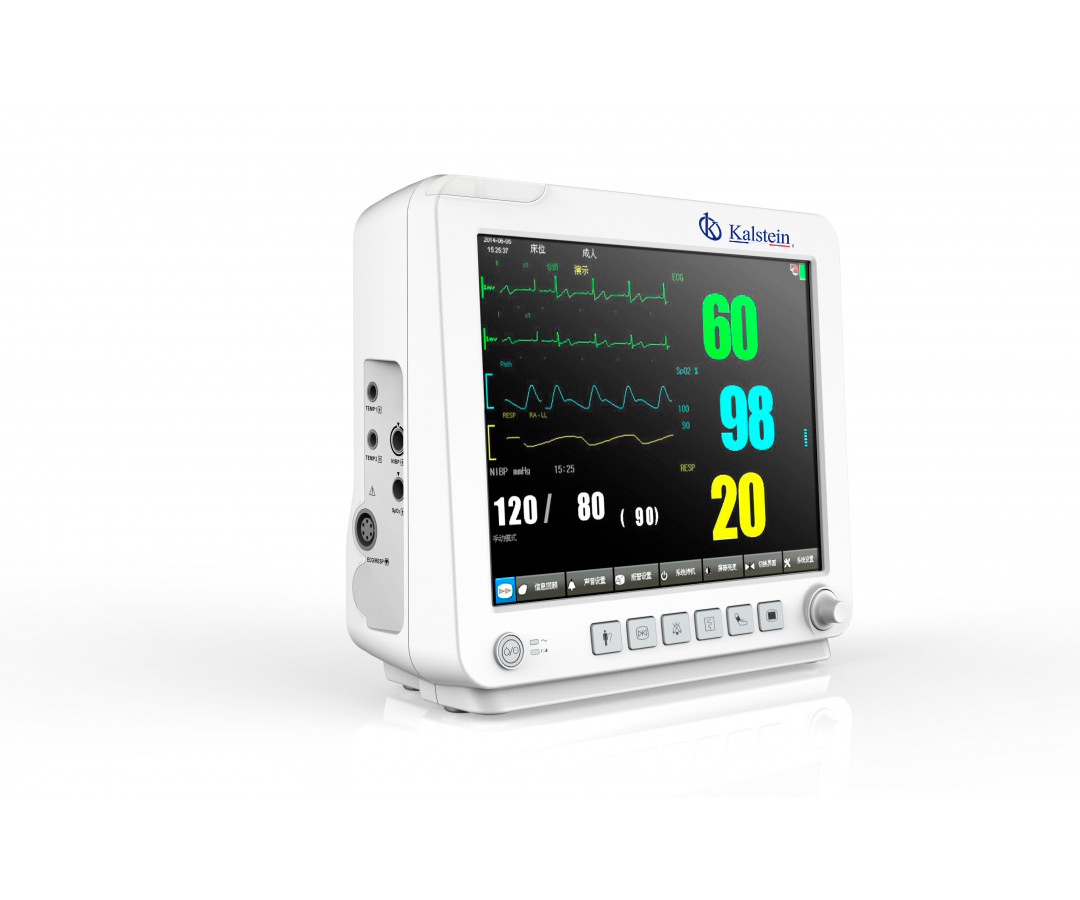

| Modelo | YR02178 | YR02179
|
|
| Aporte
|
3 derivaciones o 5 derivaciones seleccionables | ||
| Cable de 3 conductores: RA; LA LL o R: L; F | |||
| 5 Cable conductor: RA: LA: RL: LL: V o R: LN: F: C | |||
| Selección de clientes potenciales
|
3 derivaciones: 1, 1, 111 | ||
| 5 derivaciones: 1, Il, Il, AR, AVL, AVF. V | |||
| Forma de onda de ECG | 2 canales | ||
| Ganar selección | x0.25, x0.5.x1, x2.x4, Automático | ||
| Velocidad de barrido | 12,5 mm / s, 25 mm / s, 50 mm / s | ||
| Ritmo cardiaco | para recién nacidos 15-350BPM | ||
| Ritmo cardiaco | para AdulVPediatric 15-300BPM | ||
| Precisión | 1 lpm o 1%, lo que sea mayor | ||
| Resolución | 1 lpm | ||
| Filtrar
|
Modo de diagnóstico: 0.05-100Hz | ||
| Modo de monitor: 0.5-40Hz | |||
| Modo quirúrgico: 1.0-25Hz | |||
| Proteccion
|
Soporta voltaje de 4000VAC / 50Hz en aislamiento | ||
| Contra interferencia electroquirúrgica y desfibrilación | |||
| Rango de alarma | 15-350 lpm | ||
| Detección de segmento ST
|
Rango de medición: -2,0 mv a 2,0 mv | ||
| Rango de alarma: -2,5 mv a 2,5 mv | |||
| Análisis de arritmia | sí | ||
| Alarma | alarma sonora y visual, evento de alarma recuperable | ||
| Detección de ritmo | sí | ||
| Cálculo de la dosis de fármaco | sí | ||
| Modo de espera | sí | ||
| Respiración | |||
| Método | Impedancia Tooraclc | ||
| Rango de medicion
|
Recién nacido / pediátrico: 0-150 RPM | ||
| Adulto: 0-120 RPM | |||
| Alarma de apnea | Sin alarma, 10 s, 15 s, 20 s, 25 s, 30 s, 35 s 40 s seleccionable | ||
| Alarma | Alarma audible y visual, eventos de alarma recuperables | ||
| ETCO2 (opcional) | |||
| Rango de medicion | 0-99 mmHg | ||
| Precisión
|
0 a 40 mmHg ± 2 mmHg | ||
| 41 a 76 mmHg ± 5 mmHg | |||
| 77 a 99 mmHg ± 1 0 mmHg | |||
| Tasa de flujo de muestra
|
Mínimo: 50ml / m-7.5ml / m | ||
| Máximo: 50ml / m + 15ml / m | |||
| Lima de puesta en marcha
|
<1 min, una vez que el módulo se inicia, alcanza ISO | ||
| Después de 1 minuto, ingrese al modo de precisión total | |||
| Ritmo respiratorio | 0 a 120 rpm | ||
| Precisión de la frecuencia respiratoria | ± 2 rpm | ||
| Tiempo de respuesta | <240 ms (10% a 90%) | ||
| Características adicionales | Pantalla de 10,4 », ECG, SpO2, RESP, NIBP, TEMP & PR | Pantalla de 12 », ECG, SpO2, RESP, NIBP, 2 * TEMP & PR | |
The vital signs reading allows a comprehensive analysis of the physiological conditions of the patient and are ...
Through the control and management of vital signs, it is necessary to obtain information about the physiological state of the...
According to the versatility and use of vital signs monitors existing in all health centers, for the care of patients, are applied in the...
The patient monitor is a computer used in all health centers, which records the electrical activity of the same...
