Rotary Evaporator
Rotavaporators, or rotary evaporators, are highly sophisticated laboratory apparatus designed to perform evaporations in an efficient and controlled manner. They are widely used in chemistry, and their main focus is on reducing the time required for the evaporation process and minimizing personnel exposure to volatile chemicals.
Types of Rotary Evaporator that a Laboratory may need

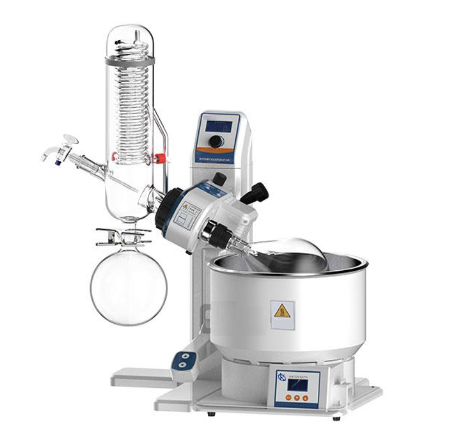

Rotary Evaporator YR02306
It is suitable for experiment of evaporation, distillation or separation of chemicals. It usually works with water circulating vacuum pump and recirculating chiller as a whole system to meet the production and experimental requirements...

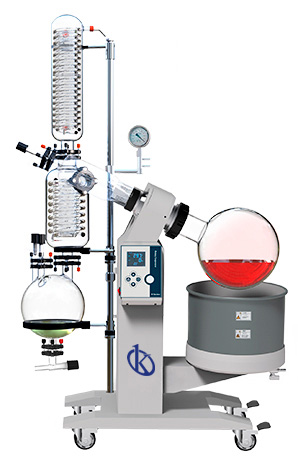

Rotary Evaporator YR02307 // YR02310
Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, and solvent evaporates more efficiently under vacuum conditio...
Our best-selling Rotavaporator

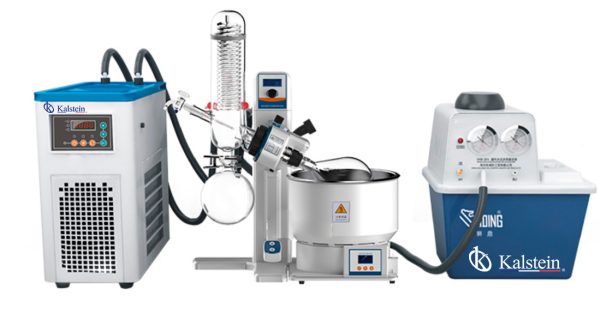

It is suitable for experiment of evaporation, distillation or separation of chemicals. It usually works with water circulating vacuum pump and recirculating chiller as a whole system to meet the production and experimental requirements.
Advantages
- Patented technology of double sealing of Teflon(PTFE) AND FV rubber can ensure the negative pressure level.
- Wide power supply range of main machine from 100V to 240V～，50/60Hz.
- PID controller ensures precise temperature control.
- Patented designed structure, the tilt angle of the evaporating flask is adjustable.
- Quick lock button on rotation axis makes it easier to be installed or removed.
- Motorized lift keeps lifting more smoothly.
- Synchronous belt drive mechanism can running smoothly, ultra-low noise during rotation process.
| Model | YR02306 | |
| Rotaion Speed | 10~280 rpm | |
| Pressure rise rate of vacuum system | <=0.33kPa/min | |
| Temperature Range | RT+5~95℃ | |
| Temperature Stability | ±1℃ | |
| Temperature Control | Keypad input, digital display | |
| Speed Control | Knob setting, digital display | |
| Lifting | Motorized lift | |
| Lifting Distance | 150mm | |
| Lifting Speed | 10mm/s | |
| Rotary Motor Power | 40W | |
| Heating Power | 1300W | |
| Condensing Area | 0.126m2 | |
| Evaporating Flask | 500ml, 1000ml | |
| Receiving Flask | 1000ml | |
| Vacuum Sealing | Double sealing rings made of Teflon+ Viton materials | |
| Water Bath size ·Capacity | 250×130mm·6.5L | |
|
Evaporating Speed
|
Water | 23ml/min |
| Ethanol | 26ml/min | |
|
Power Supply
|
Main Machine | 100V~240V, 50/60Hz |
| Water Bath | 110V~, 60Hz or 220-240V~, 50/60Hz | |
| Ambient temperature | 5~35℃ | |
| Environment Relative Humidity | <=70 | |
| Protection Class of Shell | IP20 | |
| Pollution Prevention Grade | Grade 2 | |
| Dimensions | 595W*390D*680Hmm | |
|
Net Weight
|
Main Machine | 10KG |
| Water Bath | 3.9KG | |
Catalog of models of Rotavaporators on offer
-

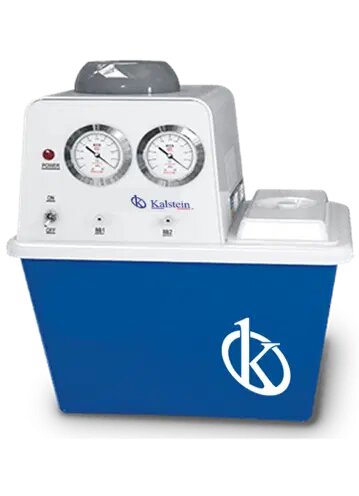

Water Circulating Vacuum Pump YR05158
-
Rotary Evaporator YR02306
-
Rotary Evaporator YR02307 // YR02310
Select options This product has multiple variants. The options may be chosen on the product page
Guides for you to become an expert in Rotary Evaporator
Laboratory Rotary Evaporator: What is it used for?
A rotary evaporator or rotary evaporator is a laboratory equipment used to remove or recover low pressure solvents (reduced pressure...
Rotavaporators: Engineering Focused on Efficiency
They are powerful, versatile and efficient tools that have revolutionized modern chemistry. From organic synthesis and pharmaceutical...
Safety Considerations in the Use of Rotavaporators
Manufacturer’s recommendations for safety should always be followed, these recommendations vary by manufacturer, but usually...
Construction of a Prototype Rotavaporator for Chemical Experiments
Rotavaporator prototypes are commonly used in chemical experiments in forensic sciences, material sciences, pharmaceutical sciences and in other types of experiments, such prototypes...
Rotavaporators videos in operation
In this section you can find, our Rotary Evaporator in operation, packaged, receiving service, etc.
Process of using a Rotary Evaporator
The rotary evaporator has become an increasingly popular piece of equipment in laboratories around the world, its ease of use and ability to perform various evaporation tasks quickly and accurately making it an invaluable tool in the laboratory.
But as the use of rotary evaporators has expanded, safety considerations have been put in place to make the equipment safe for users to
Frequently asked questions about Rotavaporators from our customers
How to know the prices of Rotary Evaporator?
To know the price of Rotavaporators we invite you to send us an email with your request through the contact form.
What are the delivery times for Rotavaporators?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to purchase the Rotavaporators?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
