Dissolved oxygen meters
Let's talk about dissolved oxygen (DO); it is the amount of gaseous oxygen that is dissolved in water, all aquatic life depends on the oxygen dissolved in water, the greatest amount of oxygen is obtained from the atmosphere, there are a variety of factors that influence the concentration of dissolved oxygen in water are: the atmospheric pressure, the content of salts in water and the temperature of the water.
To know the concentration of dissolved oxygen in the water two methods are commonly used: iodometric method and the technique of membrane electrodes; a high content of dissolved oxygen in the water is favorable in a water supply, since this means that the water is better, the levels of DO can vary from 0 - 18 parts per million (ppm), however, when the temperature rises decreases the amount of dissolved oxygen in the water.
In Kalstein you can find the Dissolved oxygen meters ideal for your lab
Online Dissolved Oxygen Controller
Economy online dissolved oxygen controller, 1 or 2 points calibration, 4 to 20mA outputs. The meter is suitable for monitoring the...

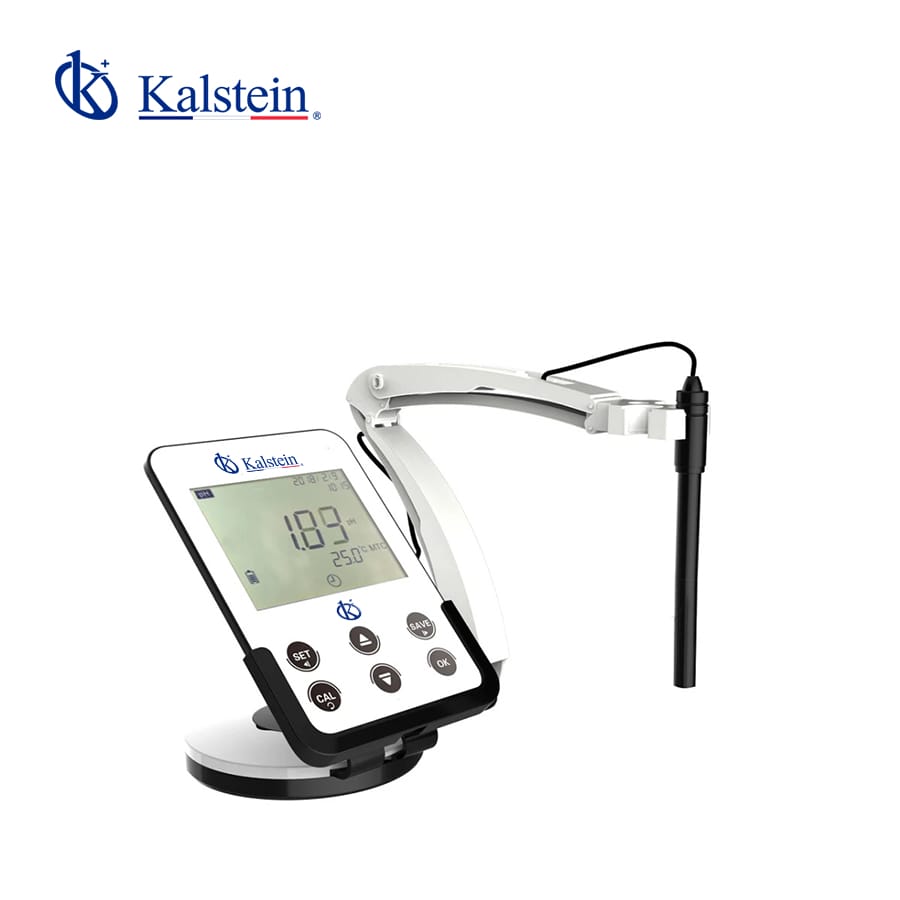

Conductivity / Dissolved Oxygen Meter
High-accuracy multiparameter water quality meter contains 15 options, the meter is suitable for measuring the pH, ORP, ion concentration...

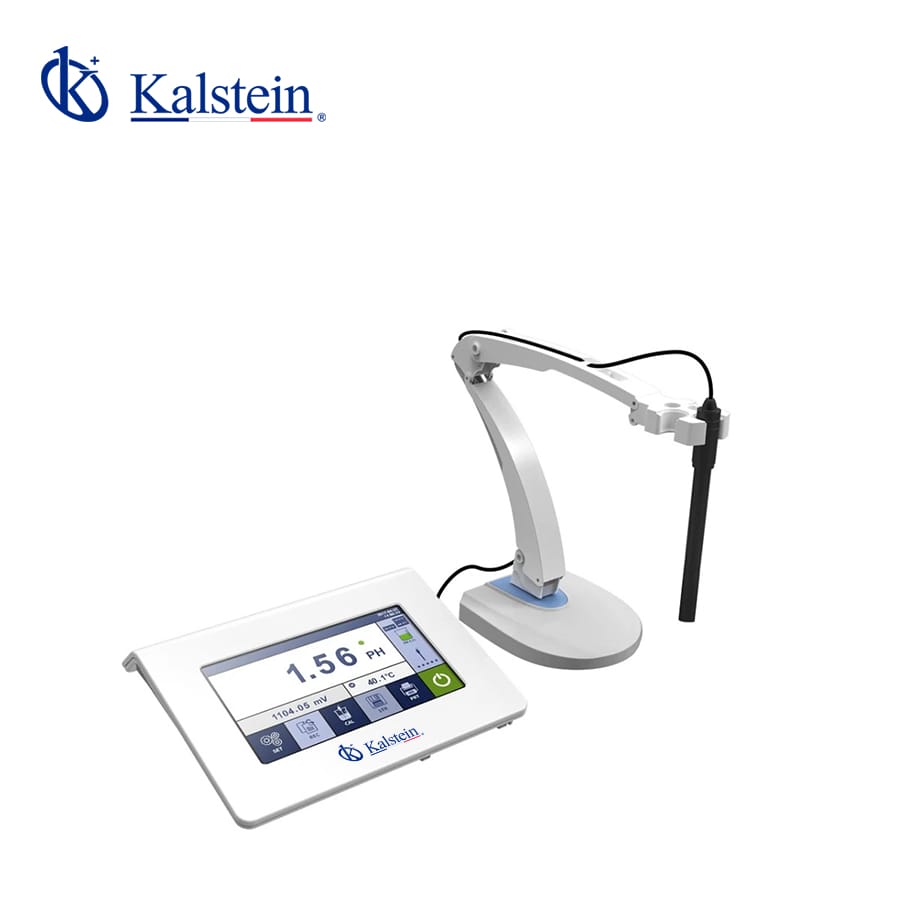

Benchtop DO / BOD / OUR / SOUR Meter
Professional benchtop dissolved oxygen meter, 7 inch TFT display, stores up to 1000 data sets. The meter is suitable for measuring...
Benchtop Dissolved Oxygen Meter
Precision laboratory dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 9 options, accuracy: 0.2mg/L...
Our Best Selling Dissolved Oxygen Meter
Multiparameter water quality meter is equipped with a large backlit LCD display. 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.Automatic electrode diagnosis shows the pH slope and offset..1 point offset calibration allows adjusting the displayed value to a known standard.Relative and absolute millivolt modes ensure the reliable ORP measurements. 2 to 5 points calibration, including the 8 concentration points can be selected.Direct ion concentration readout simplifies the measurement process. Automatic electrode diagnosis shows the calibration points and slopes. Selectable concentration units (ppm, mg/L, mol/L, mmol/L) and ionic valency.
Model | YR01835 |
pH | |
Range | -2.000 to 20.000pH |
Resolution | 0.001, 0.01, 0.1pH, selectable |
Accuracy | ±0.002pH |
Calibration Points | 1 to 5 points |
pH Buffer Options | USA, NIST, DIN, 2 custom buffers |
ORP | |
Range | ±1999.9mV |
Resolution | 0.1, 1mV, selectable |
Accuracy | ±0.2mV |
Calibration Points | 1 point |
Measurement Modes | Relative or absolute mV |
Ion Concentration | |
Range | 0.001 to 19999 (deponding on the range of ISE) |
Resolution | 0.001, 0.01, 0.1, 1 |
Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) |
Calibration Points | 2 to 5 points |
Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 |
Measurement Units | ppm, mg/L, mol/L, mmol/L |
Conductivity | |
Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
Resolution | 0.001, 0.01, 0.1, 1 |
Accuracy | ±0.5% F.S. |
Calibration Points | 1 to 5 points |
Calibration Solutions | 10µS, 84µS, 1413µS, 12.88mS, 111.8mS |
Temperature Coefficient | Linear (0.0 to 10.0%/°C), pure water |
Reference Temperature | 20/25°C |
Cell Constant | K=0.1, 1, 10 or custom |
TDS | |
Range | 0.00 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt |
Resolution | 0.01, 0.1, 1 |
Accuracy | ±1% F.S. |
TDS Factor | 0.1 to 1.0 (default 0.5) |
Salinity | |
Range | 0.00 to 80.00ppt, 0.00 to 42.00psu |
Resolution | 0.01 |
Accuracy | ±1% F.S. |
Resistivity | |
Range | 0.00 to 20.00MΩ |
Resolution | 0.01 |
Accuracy | ±1% F.S. |
Dissolved Oxygen | |
DO Range | 0.00 to 20.00mg/L |
Resolution | 0.01, 0.1mg/L, selectable |
Accuracy | ±0.2mg/L |
% Saturation of Oxygen | 0.0 to 200.0% |
Resolution | 0.1, 1%, selectable |
Accuracy | ±2.0% |
Calibration Points | 1 or 2 points |
Pressure Correction | 60.0 to 112.5kPa/450 to 850mmHg, manual |
Salinity Correction | 0.0 to 50.0g/L, manual |
Temperature | |
Range | 0 to 105°C/32 to 221°F |
Resolution | 0.1°C/0.1°F |
Accuracy | ±0.5°C/±0.9°F |
Offset Calibration | 1 point |
Calibration Range | Reading ±10°C |
General Specifications | |
Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
Stability Criteria | Low or high |
Calibration Due Alarm | 1 to 31 days or off |
Memory | Stores up to 500 data sets |
Output | USB communication interface |
Connector | BNC, 6-pin nimi-DIN, 3.5mm jack socket |
Display | Custom LCD (125×100mm) |
Power | DC5V, using AC adapter, 220V/50Hz |
Dimensions | 210(L)×188(W)×60(H)mm |
Weight | 1.5kg |
Order Code | Accessories |
YR01835
|
E201-BNC pH electrode |
CON-1 conductivity electrode | |
DO100 dissolved oxygen electrode | |
TP-10K temperature probe | |
pH4.01/7.00/10.01 buffer sachets | |
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm | |
DO electrolyte solution | |
DO membrane cap | |
USB cable | |
DC5V power adapter | |
YR01835-1 | P11 glass pH electrode |
K10 conductivity electrode | |
DO100 dissolved oxygen probe | |
TP-10K temperature probe | |
pH4.01/7.00/10.01 buffer sachets | |
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm | |
DO electrolyte solution | |
DO membrane cap | |
USB cable | |
DC5V power adapter |
|
Analysis of the best Dissolved Oxygen Meters for your Laboratory
How is an oxygen meter used?
An oxygen meter is a laboratory equipment that is used to determine the amount of dissolved oxygen in liquids this uses a specialized probe that detects oxygen...
pH meter vs. dissolved oxygen meter
The pH is the unit of measurement that describes the degree of acidity or alkalinity and is measured on a scale...
Laboratory oximeters. Operation and applications
This is an indispensable equipment that can be used inside or outside the laboratory, there are table...
Dissolved oxygen meter: How should it be used?
Oxygen meters are devices that use the amount of oxygen that is dissolved in or carried in a fluid, i.e. a multi-capacity...
Dissolved Oxygen Meters Model Catalog on Sale
Guides to becoming an expert in Dissolved Oxygen Meters

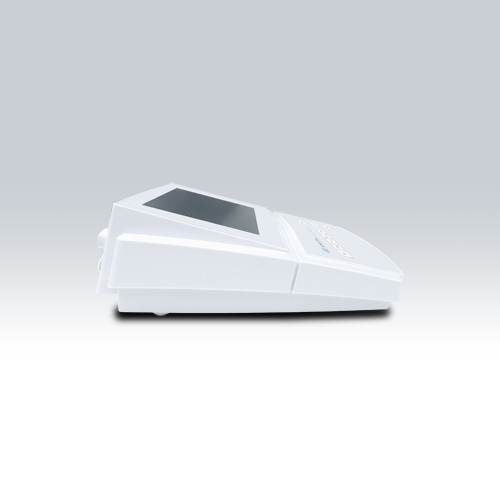

Dissolved Oxygen Meter: How It Works
Let’s talk about dissolved oxygen (DO); it is the amount of gaseous oxygen that is dissolved in water, all aquatic life depends on the oxygen dissolved in water...

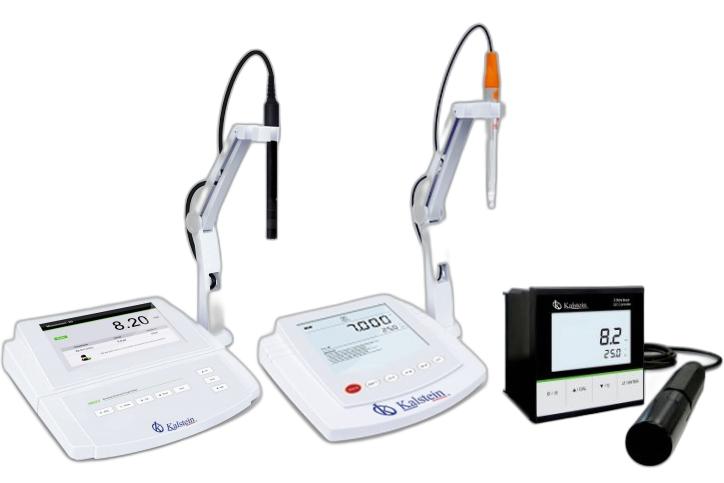

Dissolved oxygen: How to measure it accurately?
