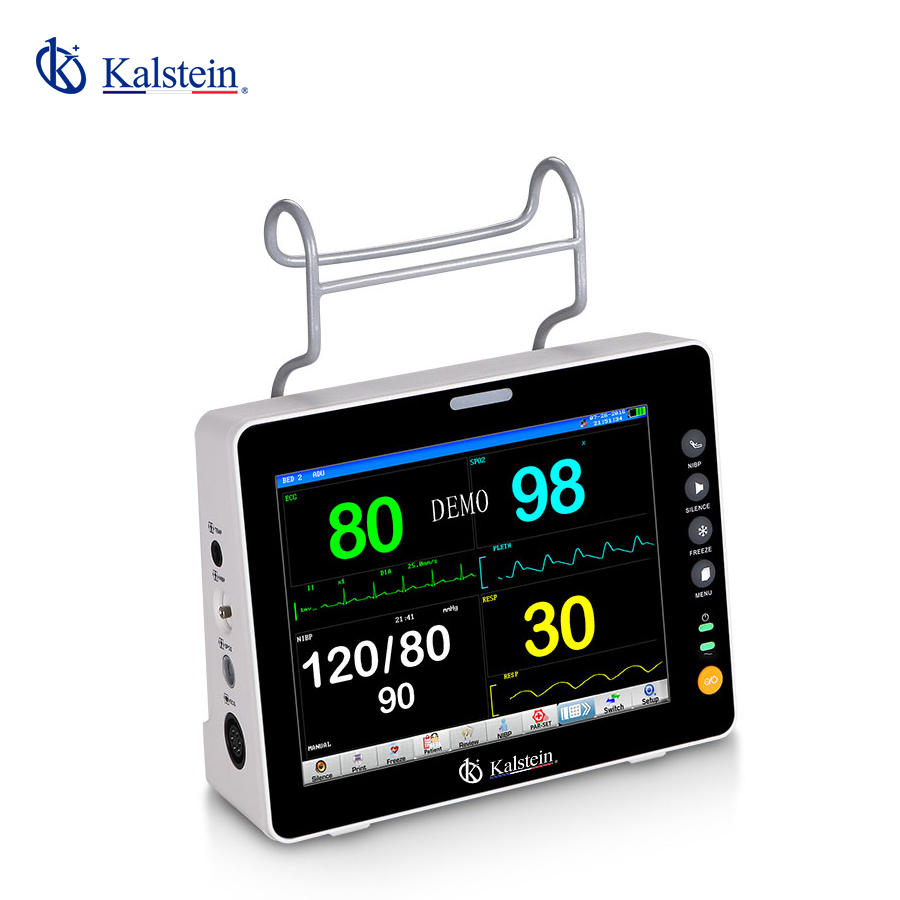

Patient Monitors YR02170 // YR02171 // YR02172

Manufacturer: Kalstein

Description

NICU Monitor. Devised specillay for neonatal. 8.4 inch touch screen,ECG (3 lead), Suntech NIBP, Masimo SpO2 , RESP, singal TEMP, HR/PR,Multiple display interface, respiratory asphyxia analysis, 112mm printer, lithium battery.

  • 8.4 inch TFT touchscreen, light weight & compact design;
  • Weak current detection up to 0.1mv of ECG ensures monitoring performance on neonates;
  • Anti-movement technology using on SpO2 and NIBP ensures accurate reading;
  • Unique adjustable respiration lead for raising neonatal patient monitoring accuracy;
  • 112mm built-in printer maximum output 7 waveforms simultaneously
Model YR02170 YR02171 YR02172
ECG
Input
3 leads or 5 leads selectable
3-conductor cable: RA; THE; LL or R: L; F
5-conductor cable: RA; THE; RL; LL, V or R; L; N; F; C
Selection of potential clients
3 leads: 1,1, 1
5 leads: I, Il, Ill, AVR, AVL, AVF, V
ECG waveform 2 channels
Win selection x0.25.x0.5, x1, x2, Automatic
Sweep speed 12mm / s, 25mm / s, 50mm / s
Heart rate for newborns 15-350 BPM
Heart rate for kids 15-J00BPM
Precision lbpm or 1%, whichever is greater
Resolution 1 bpm
Filter
Diagnostic mode: 0.05-100Hz
Monitor mode: 0.5-40Hz
Surgical mode: 1.0-25Hz
Protection
Supports voltage of 5000VAC / 50Hz in isolation
Against electrosurgical interference and defibrillation
Alarm range 15-350 bpm
ST segment detection
Measurement range: -2.0 mv to 2.0 mv
Alarm range: -2.0 mv to 2.0 mv
Arrhythmia analysis Yes
Alarm Yes, visual and audible alarm, recoverable alarm event
Rhythm detection Yes
Apnea Analysis Diagram display
Calculation of drug dose Yes
Standby mode Yes
Breathing
Method Thoracic impedance
Measuring range Newborn: 0-150 rpm
Apnea alam Yes, no alarm, 1 Os, 15 s, 20 s, selectable
Alarm Yes, audible and visual alarm, recoverable alarm events
Method Car manual
Standby mode Yes
NIBP
Method Oscillometric
Measurement modes Manual / Automatic / Continuous
Displayed parameters Systolic, diastolic and MAP (mean arterial pressure)
Automatic measuring lime Adjustable
Unit of measurement mmHg / kPa selectable
Type of measure Systolic, diastolic, medium
Systolic pressure range Newborn: 40-135 mmHg
Diastolic pressure range Newborn: 10-100 mmHg
Medium pressure range Newborn: 20-110 mmHg
Precision ± 6 mmHg
Resolution 1 mmHg
Alarm Systolic, diastolic, medium
Overpressure protection Double safety protection
SpO2
Measuring range 0% -100%
Resolution 0.01
Precision ± 2% (70% -100%); unspecified (0-69%)
Alam range 0% -100%
Pulse rate
Range: 20bpm-254bpm
Resolution: 1 bpm
Accuracy: ± 3 bpm
Alarm range: 0 ~ 254 bpm
Additional characteristics 8.4 »touch screen, ECG, SpO2 (Massimo), RESP, NIBP (Suntech), TEMP & PR, & built-in thermal printer, 112mm 8.4 »touch screen, ECG, SpO2 (Massimo), RESP, NIBP, TEMP & PR 8.4 »touch screen, ECG, SpO2, RESP, NIBP, TEMP & PR

Additional information

Weight 6 kg
Model

YR02170, YR02171, YR02172
