Color Light Box
A color evaluation box is a device for measuring the color quality of an image. It is commonly used in the photographic industry, where a high degree of accuracy is required and large images are involved. The color evaluation box allows photographers and lab technicians to measure the degree of color saturation, brightness level, contrast and hue of an image. Other aspects of the image, such as size and shape, can also be measured.
Any company that manufactures products that are sold to the public wants to ensure that those products meet the highest possible standards of quality and safety. One way to do this is to use a color evaluation chart. And at Kalstein, we have the right equipment using ultraviolet light to optically detect and evaluate the quality of samples.
Types of Color Evaluation Boxes that a Laboratory may require
Color test station light box YR05548
Color Controller Color Viewer color light box is widely applied to printing
industry....
Standard color light box YR05532
The sample is one color under this light, but will show another color when another light source changes. With ultraviolet light, close to...
Color Evaluation Box
YR05545
We offer standard light sources commonly used in the printing industry to comply with the most stringent standards for...
Color Light Box
YR05520
The leading designer and manufacturer of color matching instrument products for the graphic arts, photography, textile...
Our Best Selling Color Evaluation Box
YR05530 The six light source light box adopts fully computer-controlled touch buttons to switch light sources at will and can permanently record the name of each light source, the time of use and the number of times it is turned on. It has the function of testing the effect of metamerism. It is implemented according to international standards (ISO, ASTM, DIN, BSI, ANSI, CIE) and passes national measurement inspection with authoritative test report.
| Model | YR05530 |
| Project | parameters |
| Configuration | F, D65, TL84, UV, CWF/TL83, A in Total Six Light Sources |
| Weight | 28Kg |
| Size(L*W*H) | 71 0x530x570 mm |
| Optional Accessory | Light source diffuser, 45 degree standard stand |
Light source
| Name | Color Temperature | Power |
| D65 International standard Artificial Daylight | 6500K | 18W |
| TL84 Applied to stores in Europe, Japan and China | 4000K | 18W |
| CWF (Cool White Fluorescent) American Standard | 4150K | 18W |
| F “Sun-setting Light Yellow” incandescent light source
(imitation of sunset) |
2700K | 40w |
| UV Viewing under ultraviolet light to detect and evaluate
optical brighteners or fluorescent pigments |
365mm | 18w |
| A American shopwindow spotlight | 2856K | 60w |
| TL83 Warm White Fluorescent European Standard | 3000K | 18w |
Catalog of Color Evaluation Box models on offer
-
Color Light Box YR05524 // YR05529
Select options -
Color Proof Station Color Viewer Light Box YR05542 // YR05544
Select options -
Standard Color Light Box YR05530
Select options -
Standard Color Light Box YR05531
Select options -
Color Proof Station Light Box with Drawers YR05539 // YR05541
Select options -
Color Light Box YR05520 // YR05523
Select options -
Color Proof Station Light Box YR05536 // YR05538
Select options -
Standard Color Light Box YR05532
Guidelines for you to become an expert in Color Evaluation Boxes
Analyze the color of tissues in medical laboratories with the Color Evaluation Box
Medical laboratories are key elements in preventing, diagnosing and treating many diseases

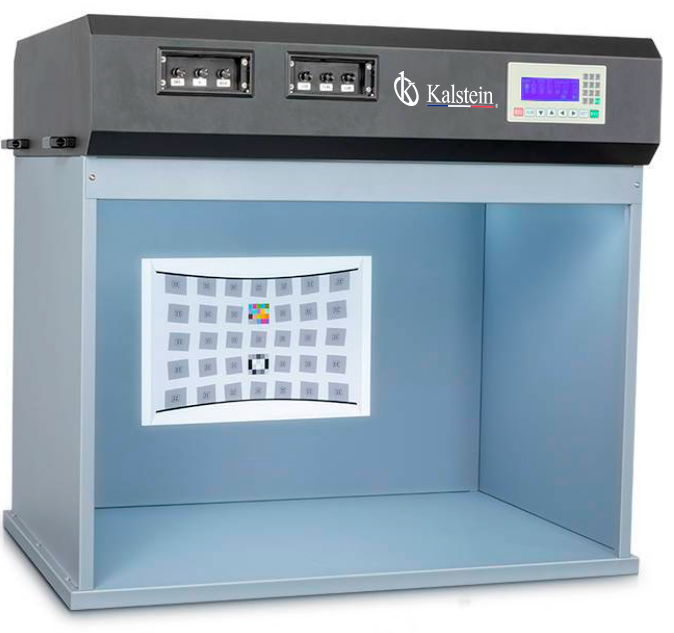

Color Evaluation Box, the ideal solution for analysis in medical laboratories
The color evaluation box is a unique and highly sophisticated device that has
What is
a Color
Evaluation
Box?
The color evaluation box is a suitable tool for all industries and applications, where
Objective color assessment for medical laboratories with Color Evaluation Box
Objective color assessment is an important issue for medical laboratories. The color of laboratory test results affects the accuracy and
Frequently Asked Questions from our customers about Color Evaluation Boxes
How to know the prices of the Color Evaluation Boxes?
To know the price of the Color Evaluation Boxes we invite you to send us an email with your request using the contact form.
What are the delivery times of the Color Evaluation Boxes?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to purchase Color Evaluation Boxes?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
