Spectrophotometers
A spectrophotometer is a piece of equipment used to measure the absorbance of a sample, as a function of the wavelength of electromagnetic radiation. There are several types of spectrophotometers. These are grouped according to the type of sample analyzed; There are atomic absorption and molecular absorption (commonly known as a UV-VIS spectrophotometer).
Spectrophotometers are used in laboratories to determine what the beam of electromagnetic radiation or light is and thus identify, qualify and quantify what its intensity is like. In the same way, it allows determining its efficiency, sensitivity, resolution and spectral range. Which will depend on the variabilities of the design and the choice of the optical components it contains
Types of Spectrophotometers that may be needed in a Laboratory
Handheld Spectrophotometer
Spectrophotometry is a technique that has the ability to evaluate and measure how much light can be absorbed by a substance, either solid or liquid, this technique seeks to measure the luminous intensity of the sample when a beam of light passes through it. Spectrometry is based on the Beer-Lambert law, this law explains that there is an exponential interaction between the transmission of light through a substance and the concentration of the same, this foundation allows it to be used in different areas both medical and scientific.
Spectrometry has several applications in different areas, such as biology, medicine and chemistry, among the functions of this technique is to analyze quantitatively and qualitatively the problem or unknown samples in research laboratories.
Multi Angles Spectrophotometer
- Multi-angle measurement
- Adopt 3 light sources, 1 receiver to measure 3 measuring angles at the same time.
- More intuitive display The touch screen can display all angle measurement results, a more intuitive view of the complete data.
- Touch screen can display all angle measurement results, more intuitive view of complete data.
- 256" dual-matrix CMOS imaging element image sensor
- Higher optical resolution ensures the measurement speed, accuracy, stability and consistency of the instrument.
- Core technology makes it the same platform with international standards and full compatibility.
In Kalstein you can find the ideal spectrophotometers for your Laboratory
Benchtop Spectrophotometer YR05476
YR053406 is a benchtop grating spectrophotometer which is developed by Kalstein independently with independent intellectual property. YR053406 has...

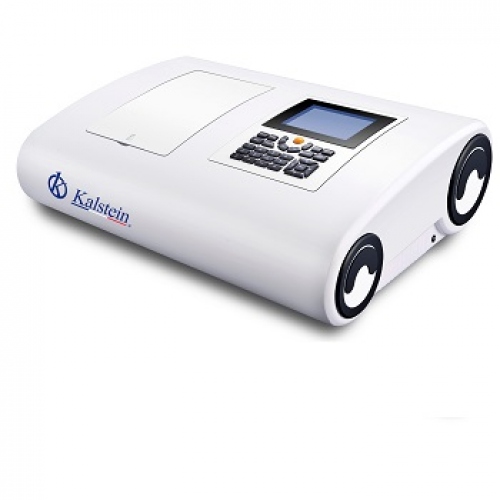

Double beam UV / VIS spectrophotometer c- YR01863 // YR01865
series are wide screen double beam spectrophotometer.They adopt double beam long light path design to ensure...

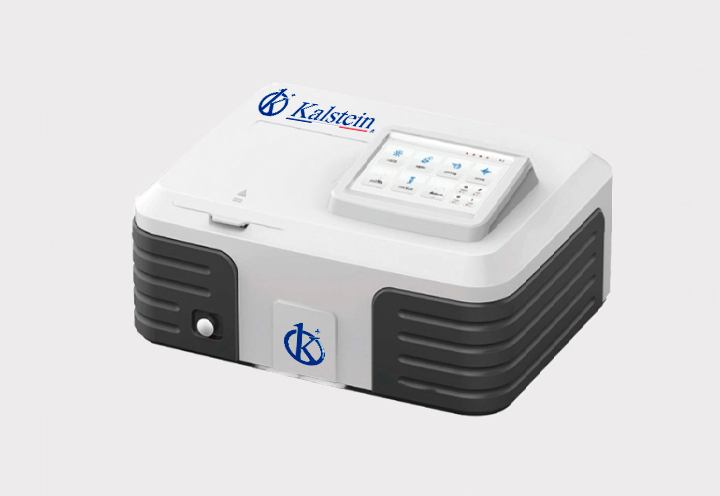

Double Beam UV / Vis Spectrophotometer – YR01862
Dual optical path, dual beam optical system, dual detector, with imported high performance grating, lower stray light, higher stability, reliability, more accurate analysis...
UV VIS Spectrophotometer with Ultraviolet-Visible
YR01857 spectrophotometer equipped with 6 inches LCD display, is an ideal and advanced analytical instrument for laboratory to realize wavelength...
Our Best Selling Spectrophotometer
spectrophotometer is equipped with three measuring aperture of φ 8 mm, φ 4 mm, 1×3 mm, more adaptability, accurate color measurement, stable performance, in plastic electronics, paint coating, textile printing and dyeing, paper products printing, automotive, medical, Cosmetics and food industries, in scientific research institutions, laboratory fields are widely used.
YR05493 // YR05494 series grating spectrophotometer is a Kalstein company spent 3 years, carefully designed, fully with independent intellectual property rights grating spectrophotometer. The instrument uses 1000 precision bright grating lines as optical divider, built-in silicon photodiode array sensor (40 double-row groups), imported white board, repeatability delta E * AB easily controlled within 0.03, the use of long-life full-spectrum LED as light source, optical resolution in the visible range is less than 10 nm.
Model |
YR053420 |
Optical Geometry |
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) |
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source |
|
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
|
Characteristic |
double apertures for accurate color analysis and transmission in laboratory |
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. |
|
Integrating Sphere Size |
Φ40mm |
Light Source |
Combined full spectrum LED light source, UV light source |
Spectrophotometric Mode |
Flat Grating |
Senso |
Silicon photodiode array (double row 40 groups) |
Wavelength Range |
400~700nm |
Wavelength Interval |
10nm |
Semiband Width |
10nm |
Measured Reflectance Range |
0-200% |
Measuring Aperture |
MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
Specular Component |
SCI&SCE |
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell (C/2) |
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE (Hunter) |
Other Colorimetric Index |
WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
YI(ASTM D1925,ASTM 313), |
|
Metamerism Index MI, |
|
Staining Fastness, Color Fastness, Color Strength, Opacity, |
|
8° Glossiness,555 tone classification |
|
Observer Angle |
2°/10° |
Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9, F10(TPL5),F11(TL84),F12(TL83/U30) |
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
Measuring Time |
About 1.5s (Measure SCI & SCE about 3.2s) |
Repeatability |
Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
|
Inter-instrument Error |
MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) |
Measurement Mode |
Single Measurement, Average Measurement(2-99times) |
Locating Method |
Camera Locating,stabilizer cross position |
Dimension |
L*W*H=129X76X217mm |
Weight |
Approx 600g |
Battery |
Li-ion battery, 3.7v, 5000mAh, 6000 measurements within 8 hours |
Illuminant Life Span |
5 years, more than 3 million times measurements |
Displayed Data |
3.5-inch TFT color LCD, Capacitive Touch Screen |
Data Port |
USB, Bluetooth 4.2 |
Data Storage |
Standard 1000 Pcs, Sample 30000 Pcs |
Language |
Simplified Chinese, English, traditional Chinese |
Operating Environment |
0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
Storage Environment |
-20~50℃, 0~85%RH (no condensing) |
Standard Accessory |
Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture |
Optional Accessory |
Micro Printer, Powder Test Box |
Notes |
The specifications are subject to change without notice. |
Analysis of the best Spectrophotometers for your laboratory
What is Spectrofluorometry?
Spectrofluorometry is the science that analyzes the fluorescence of a sample. This science, is applied by a device called Fluorometer...
What is a Spectrophotometer?
A spectrophotometer is a device that is used in laboratories to determine what the beam of electromagnetic...
Fluorometer vs. Spectrophotometer
A fluorometer is a piece of equipment that allows the analysis, identification and quantification of chemical ...
What are the uses of a spectrophotometer?
Spectrophotometry quantifies the concentration of a specific substance that is present in a sample by comparing...
Catalog of models of Spectrophotometers on offer
-

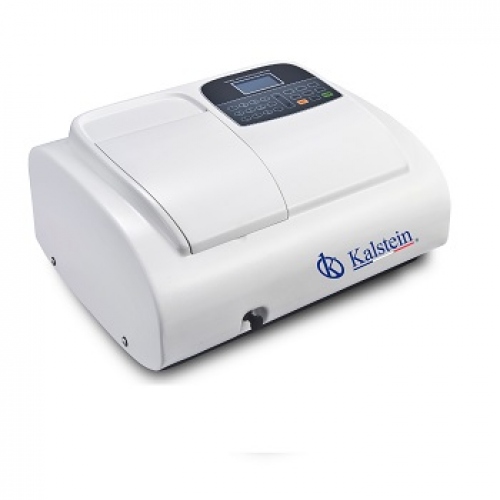

UV VIS Spectrophotometer- YR01852
-
Micro-Spectrophotometer YR06035
-
UV VIS Spectrophotometer with Ultraviolet-Visible Scanning Software- YR01857
-
Handheld Color Spectrophotometer YR05496
-
Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489
Select options This product has multiple variants. The options may be chosen on the product page -
Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492
Select options This product has multiple variants. The options may be chosen on the product page -
Portable Desktop spectrophotometer YR05484
-
Spectrophotometer – YR01850
Guides to becoming an expert in Spectrophotometers
When to calibrate my Spectrophotometer?
The spectrophotometer is a piece of equipment used in the laboratory in order to determine the concentration of a substance in a solution, thus allowing quantitative analysis to be carried out.
What is it? and How is it used? a Spectrophotometer
A spectrophotometer is a piece of equipment that measures how much light a substance absorbs. Its efficiency, resolution...
Spectrophotometers: care and maintenance
A spectrophotometer is an instrument used in laboratories to measure the absorbance of a sample, as a...
How to keep your spectrophotometer in good condition?
The spectrophotometer is one of the main diagnostic and research instruments developed by humans. It is used in the laboratory in order to determine the concentration of a substance in a solution, thus allowing quantitative analysis...
Spectrophotometer operating
A spectrophotometer, commonly known as a UV/VIS spectrophotometer, is a device used to measure the absorption of radiation in the visible and ultraviolet light spectrum. It is an instrument used by scientists in laboratories to investigate materials that reflect, absorb and emit light.
These instruments are used in both industry and research to identify and quantify chemical compounds in a sample. Spectrophotometers detect a range of wavelengths from ultraviolet to visible light.
