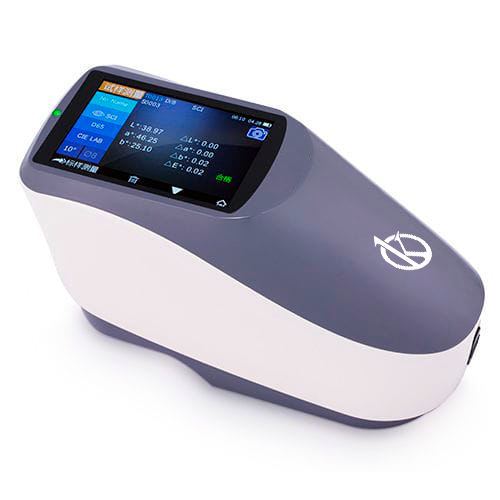

Grating Spectrophotometer with UV SCI/SCE Bluetooth YR05500 // YR05502
Manufacturer: Kalstein
Product Description
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YR05500 // YR05502 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
YR05500 // YR05502 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YR05500 // YR05502 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Features
- Perfect combination of beautiful appearance and the human body mechanics structural design;
- D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
- Use long life and low power consumption combined LED light source, including UV/excluding UV;
- Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
- Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
- High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
- USB/Bluetooth 2.1, dual mode, widely useful;
- Super stain-resistant and stable standard white calibration plate;
- Large capacity storage space, over 20,000 measurement data;
- Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers’ demand for color measurement;
- Camera Locating Function, better position;
- PC software has a powerful function extension.
Technical Specification
| Model Items | YR05500 | YR05501 | YR05502 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) | ||
| Integrating Sphere Size | 48mm | ||
| Light Source | Combined LED Light, UV Light | Combined LED Light | |
| Spectrophotometric Mode | Concave Grating | ||
| Sensor | 256 Image Element Double Array CMOS Image Sensor | ||
| Wavelength Range | 400-700nm | ||
| Wavelength Interval | 10nm | ||
| Semiband Width | 10nm | ||
| Measured Reflectance Range | 0-200% | ||
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm | Customized Aperture: 8mm/4mm/1×3mm | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE | ||
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB | ||
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) | ||
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter),YI(ASTM D1925, ASTM 313),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness | WI(ASTM E313, CIE/ISO, AATCC, Hunter),YI(ASTM D1925, ASTM 313),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity | WI(ASTM E313, CIE/ISO, AATCC, Hunter),YI(ASTM D1925, ASTM 313),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | ||
| Data Port | USB, Bluetooth 4.0 | USB | |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs | ||
| Language | English, Chinese | ||
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | ||
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover | ||
| Optional Accessory | Micro Printer, Powder Test Box,Universal Test Components | ||
| Notes: The specifications are subject to change without notice. | |||
Additional Information
| Weight | 3 kg |
|---|---|
| Model | YR05500, YR05501, YR05502 |
