Climatic Chamber
The climatic chamber is a unit capable of building the will of stable situations of temperature and relative humidity, to provide controlled climatic states, in order to have a reliable measurement standard in the measuring instrument. It is elaborated by a hermetic structure, able to provide pressures between the inside and the outside, being its main components, an access hatch, means to humidify and condition the air inside the chamber, sensors and temperature controllers.
Types of Climatic Chambers that a Laboratory may require
Artificial Climate Chamber
Variable climate chambers: is developed using homogeneous, available conditions of high climatic change, to meet demanding material tests. Determines the lower and upper temperature limit of component failure, climatic range for operation, transport conditions, storage and use in accordance with the provisions and hidden design defects. Tests include extreme and rapid temperature and humidity changes to cause accelerated aging to destruction.
Illumination Drug Stability Test Chamber
Stability test chambers are used in the pharmaceutical, food and cosmetics sector, capable of storing products such as biological samples, reagents, serums, vaccines, insulin, some antibiotics, eye drops and ophthalmic ointments, to be kept between 2°C and 8°C, and not lose their properties, by means of temperature conservation, with advanced technology, as part of a productive or regulatory process.
The stability test chamber is distinguished by its ability to handle complex environmental conditions, extreme temperatures and adequate humidity levels. In fact, it is developed to maintain controlled temperature conditions for a very long period of time.
In Kalstein you can find the ideal Climatic Chambers for your Laboratory.
Strong Illumination Stability Test Chamber YR05353 // YR05353-2
Strong illumination stability test chamber for pharmaceutical companies to evaluation of drug failure, accelerated testing...
Climate Simulation Chamber YR05347 // YR05349
Simulate the day and night light changes and climate conditions, to meet the multi segment ladder programming controlled; can be long-term culture experiment...
Environmental Chamber YR05340 // YR05346-1
The Environmental chamber is produced with imported parts with excellent performance, beautiful appearance and good reliability. It is an ideal choice for Laboratory environmental...
Artificial Climate Incubator YR05328 // YR05330
Quality compressor with delay protection function; without fluorine refrigerant high efficient, more energy saving; built-in tempered glass viewing window and...
Our best-selling Climatic Chamber
Balanced refrigeration, automatic defrost, environmental protection without fluorineR134 refrigerant, LCD display, microcomputer intelligent PLD control, illumination five can be adjusted, built-in tempered glass viewing door.
Applies to plant seed germination, seeding, bacteria, microbes, animals and insects feeding, product quality testing and other uses of light, constant temperature experiments.is an ideal environment test equipment for such as biology, medicine, agriculture and animal husbandry, forestry, environmental science research departments.
|
Product name
|
Illumination (Ray radiation) incubator YR series
|
||
|
Model
|
YR05331 | YR05332 | YR05333 |
|
3Temp range ℃
|
With illumination 10~50℃，With no illumination 5~60℃
|
||
|
Temperature uniformity values ℃
|
±1
|
±1.5
|
|
|
Illumination LX
|
0~10000
|
0~15000
|
0~15000
|
|
Illumination set range
|
Five level（20%、40%、60%、80%、100%）
|
||
|
Timing range
|
0~99h
|
||
|
Power W
|
900
|
1000
|
1200
|
|
Voltage V
|
220
|
||
|
Accuracy ℃
|
±0.1
|
||
|
Volume L
|
150
|
250
|
350
|
|
Inner size （mm）（H*W*D）
|
800*500*380
|
1000*550*450
|
1000*580*600
|
|
Overall dimension
（mm） （H*W*D） |
1525*735*680
|
1775*785*750
|
1775*815*900
|
|
Packing size (mm)
(H×W×D) |
1680*810*760
|
1925*860*830
|
1925*890*980
|
|
Net weight (KG)
|
120
|
155
|
188
|
|
Shipping weight (KG)
|
128
|
165
|
198
|
Catalog of Climatic Chambers models on offer
-

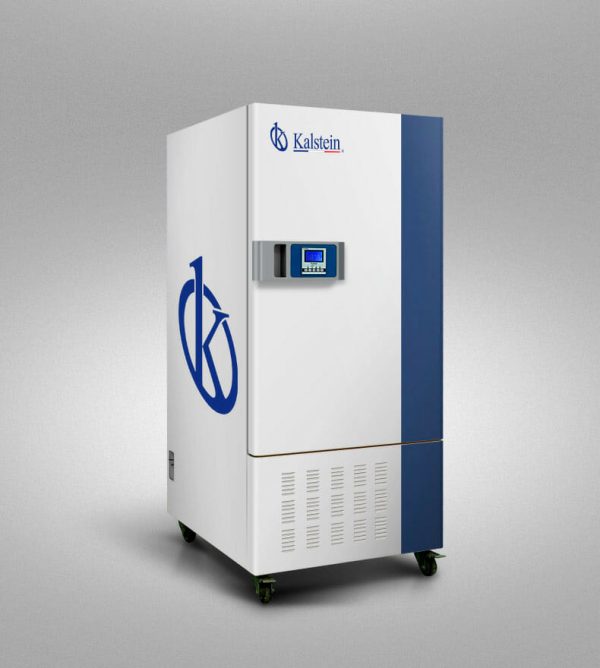

Constant Climate Chamber YR05334 // YR05339
Select options -
Illumination (Ray radiation) Incubator YR05331 // YR05333
Select options -
Drug Stability Test Chamber YR05350 // YR05352
Select options -
Artificial Climate Incubator YR05328 // YR05330
Select options -

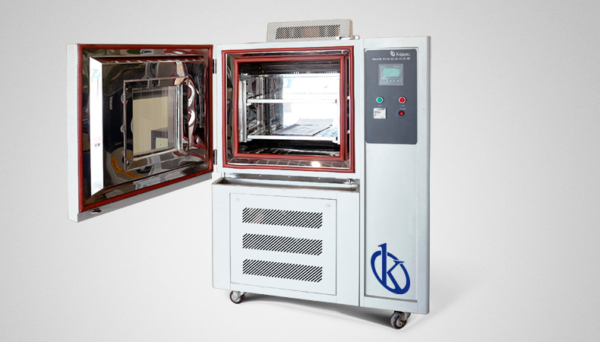

Environmental Chamber YR05340 // YR05346-1
Select options -
Climate Simulation Chamber YR05347 // YR05349
Select options -
Comprehensive Drug Stability Test Chamber YR05354 // YR05356
Select options -

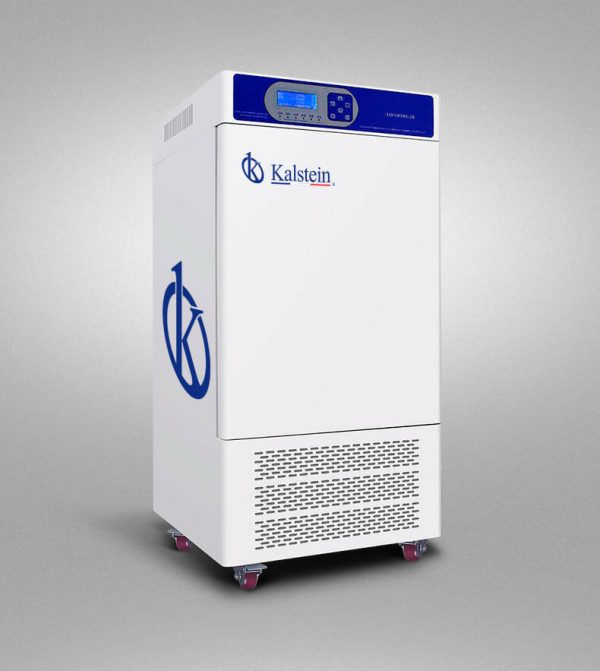

Humidity Chamber YR05802 // YR05807
Select options
In Kalstein you can find the ideal Climatic Chambers for your Laboratory

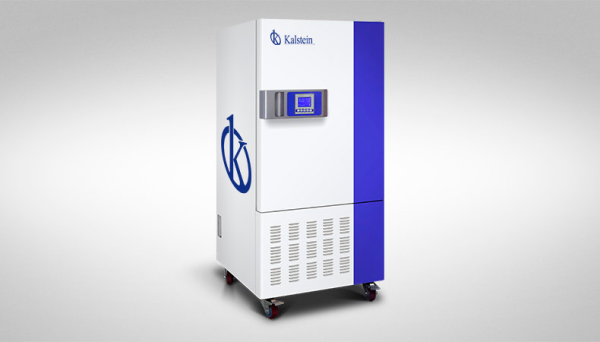

What are the benefits of Laboratory climatic Chambers?
Laboratory climate chambers are one of the most important technologies used in laboratories around the world today. This form of...
Use of Climatic Chambers in Chemical
The use of climatic chambers in chemical experiments is a useful tool for the isolation of chemicals from external environmental...
Climate Chambers for measuring the quality of food products
The shelf life of a food product can be defined as the period during which, this food is acceptable and meets quality specifications...

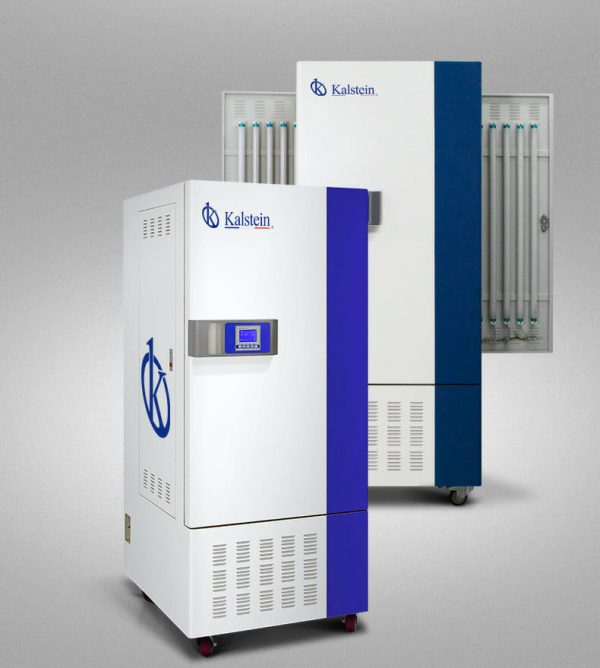

Applications of Climatic Chambers in Scientific Laboratory Experiments
Climatic chambers are an invaluable tool for scientific laboratories, these high-precision measuring units, also known as cooling...
Climatic Chambers FAQs from our customers
How do you know the prices of the Climatic Chambers?
To know the price of the Climatic Chambers we invite you to send us an email with your request through the contact form
What are the delivery times of the Climatic Chambers?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of the Climatic Chambers?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
