Heating Mantle / (Stirrer)
Thermal Mantles is an equipment used in laboratories to supply a certain stable temperature uniformly and safely to various containers, whose base is round. It is mainly used to provide a stable temperature to volumetric balloons.
Its design makes the transfer effective thanks to the uniform distribution of temperature throughout the contact area with the container and the materials for which it is made; as it works on the principle of heat transfer by conduction. The blanket is the best option for the user due to its fast heating and thermal response, since the heat provided can be adjusted or regulated with a transformer, varying according to the required needs. Thus, this equipment is frequently used in chemistry and biology laboratories of basic and higher education to heat and temper organic liquids, which need to enter a boiling, evaporation, distillation or extraction process; in addition to its use in quality control analysis.
Types of Heating mantles (Stirrers) that a Laboratory may require

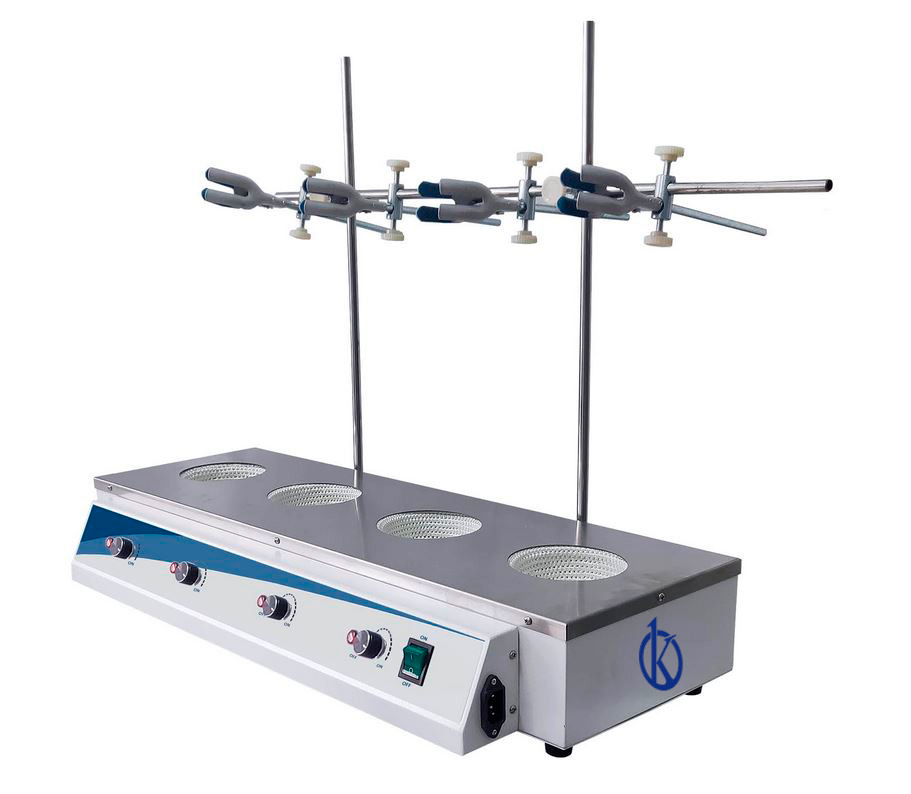

Multi Heating Mantle YR05049 // YR05058
YR multi heating mantles are designed for repetitive extraction (Kjeldahl, Soxhlet and other extraction procedures), laboratory reflux...

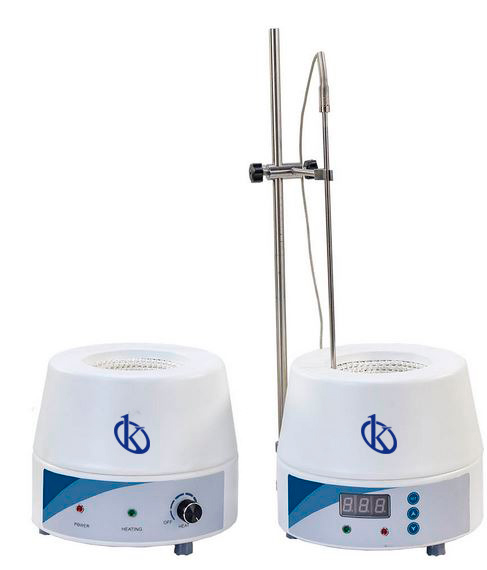

Heating Mantle YR05021 // YR05036
Digital type single position mantles are with outer sensor, multi position mantles are with inner sensor, outer sensor optional..
Heating Mantle YR05039 // YR05048
Digital type single position mantles are with outer sensor, multi position mantles are with inner sensor, outer sensor optional...

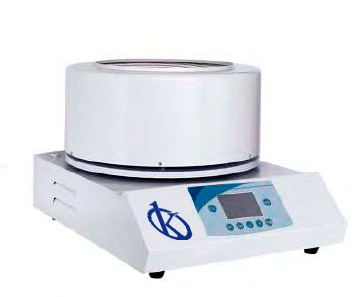

Heating Mantle YR05055 // YR05058
Large heating area, heating uniform and heating fast, and the maximum temperature can be 380°C...
Best-selling Heating Mantle
- Space saving design of the extraction mantle
- Independ and separate temperature control at each different condition
- Inner heating element consists soft glass fiber, protected from damage of flask
- Precise PID temperature control meets high accuracy experiment needs
| Type | Analog | |||||
| Model | YR05049 | YR05050 | YR050501 | YR05052 | YR05053 | YR05054 |
| Capacity (ml) | 3 x 250 ml | 3 x 500 ml | 3 x 1 000ml | 6 x 250 ml | 6 x 500 ml | 6 x 1 000ml |
| Voltage (V) | 200 – 240V / 50- 60Hz or 100 – 120V / 50 – 60Hz | |||||
| Max use Temperature (°C) | 380 | |||||
| Power (W) | 150×3 | 250×3 | 350×3 | 150×6 | 250×6 | 350×6 |
| Working Time | Continuous | |||||
| Exterior Size | 500 x 290 x 120 | 650x350x120 | 900x290x120 | 1 200x350x120 | ||
| Packing Size (mm) | 550 x 440 x 170 | 700x500x170 | 950x440x170 | 1 250x500x170 | ||
| Net Weight (Kg) | 8 | 14 | 8 | 14 | ||
| Gross Weight (Kg) | 10 | 16 | 10 | 16 | ||
Catalog of Models of Heating Mantles on offer
Guides to becoming an Analyser expert
How to solve problems with Heating Cloths?
Heating cloths are an important tool for controlling temperature in a laboratory. They are designed to provide uniform heat, although this..
How do you keep the Heating Cloths in the Laboratory?
Heating cloths are laboratory devices that are used to maintain a constant temperature. These devices are extremely useful for various..
Heating and Stirring Plates- Types And Uses
It is a laboratory equipment that adapts to multiple experiments that require temperature and agitation frequently used in laboratories; the...
Laboratory Heating Mantles: choice and proper use in your research?
Laboratory heating mantles allow you to control the temperature, either to maintain it at a preset level or to locate an exact temperature range during a chemical reaction...
Heating Mantles in operation
The heating blanket is the best option for the user due to its fast heating and thermal response, since the heat provided can be adjusted or regulated with a transformer, varying according to the needs required.
Thus, this equipment is frequently used in basic and higher education laboratories of chemistry and biology for heating and tempering organic liquids, which need to enter a boiling, evaporation, distillation or extrusion process, in addition to its use in quality control analysis.
Frequently asked questions from our customers about Heating Mantle / (Stirrer)
How to know the prices of What are the delivery times for Heating Mantle / (Stirrer)?
To know the price of the Mantos calefactores we invite you to send us an e-mail with your request using the contact form.
What are the delivery times for Heating Mantle / (Stirrer)?
El tiempo de entrega de su producto Kalstein dependerá de lo siguiente:
- Si el equipo de su interés se encuentra en stock o si por el contrario debe ser fabricado.
- El tipo de flete que haya escogido, este podrá ser; aéreo o marítimo.
- Equipos en stock:
– Tiempo de Entrega (Aereo): 15-30 dias.
– Tiempo de Entrega (Maritimo): 45-60 dias.
- Equipos que no estan en stock:
– Tiempo de Entrega (Aereo): 30-60 dias.
– Tiempo de Entrega (Maritimo): 60-90 dias.
What are the delivery times for Heating Mantle / (Stirrer)?
You can make your purchase through:
By e-mail: [email protected]
By phone: +33 (0) 1 78 95 87 02
E-commerce: Through the official Kalstein website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “Terms and Conditions ” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our channel Youtube (Kalstein English). HERE
Can I request a quote online?
Of course, you can ask for a quote by the Kalstein team of your interest, directly from our website official. U Once you have identified the model of your preference, make click k HERE
