Nitrogen Tanks
There are now many products that contain gases or use gases for their production, so it is necessary to store these gases in cylinders or tanks under pressure, as in the case of nitrogen. Most gases are classified as compressed gases, according to some international standards.
The pressure at which the gases are compressed inside the tank is between 40 psi (pounds per square inch) up to 2,200 psi, although this is a function of temperature. Compressed gases pose a risk, since any damage to the device used to store the gas can cause it to be released violently even explosively
Types of Nitrogen tanks that the Medical Sector may need
Self-pressurized Series for Storege or Supply (Round Canisters)
The LN2 storage and supply liquid nitrogen supplement series incorporates the latest innovation, its unique design uses the pressure generated by the vaporization of a small amount of liquid nitrogen to discharge LN2 into other containers. Storage capacities range from 5 to 500 litres.
- 5 year vacuum warranty
- Decantation valves
- liquid storage
- stainless steel construction
- pressure rise
- Comprehensive Security Mechanisms
Medium Sizes Storege- Smart Liquid Nitrogen Containers
- Heavy duty lockable enclosure offers excellent security
- Compatible with all major cryobox brands
- Durable aluminium construction
- Liquid or vapour phase option available
- High thermal eff iciency
- 5 year vacuum warranty
- Ultra-low evapouration loss
In Kalstein you can find the ideal Nitrogen Tanks for the Medical Sector
Small Sized Storage Series (Square Racks) YR05371 // YR05382
Widely used within many laboratories, this small-sized storage series features low LN₂ consumption and dual handle design...
Biomedical Liquid Nitrogen Storage Solutions Dryshipper Series for Transportation
Dryshipper Series for Transportation (Round Canisters) is designed for safe sample transportation under...
High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392
Narrow neck design and excellent thermal conduc-tivity reduces evapouration loss of liquid nitrogen to extend ...
Medical Medium Sized Storage Series YR05365 // YR05370
Medium Sized Storage Series (Square Racks) features low LN2 consumption and relatively small footprint for medium capacity ...
Our Top Selling Nitrogen Tank
Liquid Nitrogen Supplement Series for LN2 Storage and Supply incorporates the latest innovation, its unique design utilises the pressure generated from the vapourisation of a small amount liquid nitrogen to discharge LN2 into other containers. Storage capacities range from 5 to 500 litres.
- 5 Year Vacuum Warranty
- Decant Valves
- Liquid Storage
- Stainless Steel Construction
- Pressure Raising
- Integral Safety Mechanisms
Model | YR053352 | YR053353 | YR053354 | YR053355 | YR053356 | YR053357 | YR053358 | YR053359 |
Performance | ||||||||
LN volume (L) | 5 | fifteen | 30 | fifty | 100 | 150 | 200 | 300 |
Static Evaporation (L/Day) | 0.15 | 0.38 | 0.75 | one | 1.3 | 1.95 | 2.4 | 3.3 |
LN output (l/min) | two | two | 3 | 3 | 4 | 6 | 8 | 8 |
Dimensions | ||||||||
Height (mm) | 510 | 750 | 879 | 991 | 1185 | 1188 | 1265 | 1459 |
Outer diameter (mm) | 329 | 404 | 454 | 506 | 606 | 706 | 758 | 857 |
Curb weight (kg) | fifteen | 23 | 32 | 54 | 75 | 102 | 130 | 202 |
Complete weight (kg) | 19.1 | 35.3 | 56.6 | 95 | 157 | 225 | 296 | 448 |
Shipping weight (kg) | 28 | 3. 4 | 47 | 63 | 98 | 132 | 164 | 232 |
Pressure parameters (MPA) | 1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Pressure gauge range 0~0.25 |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Gauge range 0-0.25, 6. Rupture disc bursting pressure 0.47 . |
||||||
Model | YR053360 | YR053361 | YR053362 | YR053363 | YR053364 | YR053365 | YR053366 | |
Performance | ||||||||
LN volume (L) | 500 | 100 | 200 | 240 | 300 | 500 | ||
Static Evaporation (L/Day) | 5.5 | 1.3 | 2.4 | 2.9 | 3.3 | 5.5 | ||
LN output (l/min) | 10 | 4 | 8 | 8 | 8 | 10 | ||
Dimensions | ||||||||
Height (mm) | 1576 | 1185 | 1265 | 1350 | 1459 | 1576 | ||
Outer diameter (mm) | 1008 | 606 | 758 | 758 | 857 | 1008 | ||
Curb weight (kg) | 255 | 75 | 130 | 148 | 202 | 255 | ||
Complete weight (kg) | 665 | 157 | 296 | 350 | 448 | 665 | ||
Shipping weight (kg) | 324 | 98 | 164 | 177 | 232 | 324 | ||
Pressure parameters (MPA) |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Gauge range 0-0.25, 6. Rupture disc bursting pressure 0.47 . |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Pressure gauge range 0~0.25 |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Gauge range 0-0.25, 6. Rupture disc bursting pressure 0.47 . |
Analysis of the best Nitrogen tanks for the Medical Sector

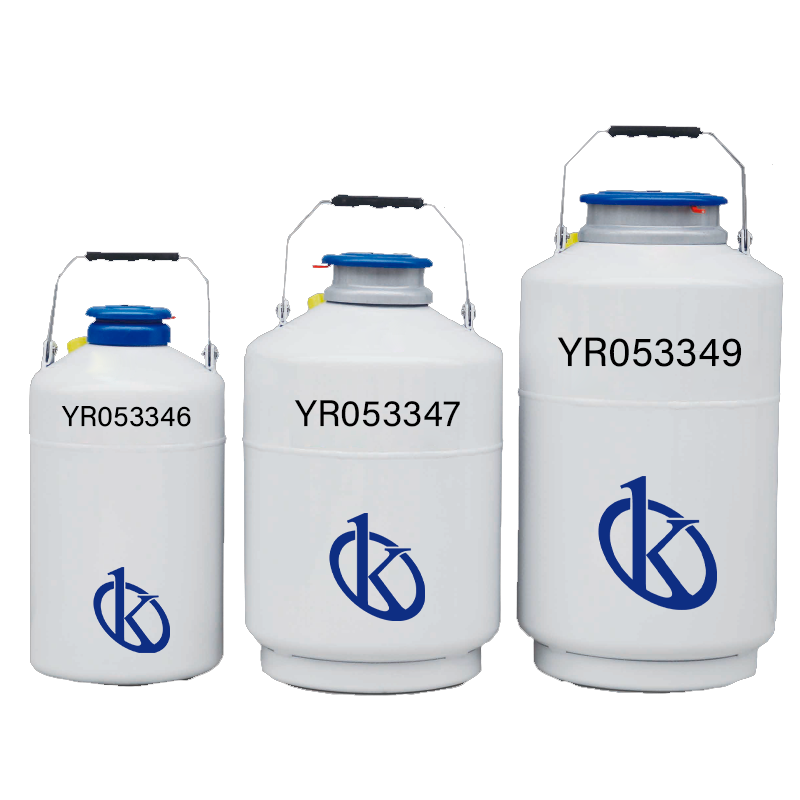

Nitrogen tanks and artificial insemination?
Nitrogen tanks are essential equipment for the application of the artificial insemination (AI) technique, since they...
Use of Nitrogen Tanks for the Wine Sector
Wine is a beverage that is associated with the history of mankind, since archeologists have found evidence that ...
Importance of Nitrogen Tanks
There are now many products that contain gases or use gases for their production, so it is necessary to store these gases in cylinders or tanks under pressure...
How should a tank of liquid nitrogen be handled?
Nitrogen is a chemical element found in group 15 and period 2 of the periodic table and, in addition, its atomic number...
Catalog of models of Nitrogen Tanks on offer
-
Biomedical Liquid Nitrogen Storage Solutions YR05423 // YR05437
Select options -
High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392
Select options -
Biomedical Liquid Nitrogen Storage Solutions Dryshipper Series for Transportation (Round Canisters) YR05417 // YR05422
Select options -
Medical Medium Sized Storage Series YR05365 // YR05370
Select options -
High Capacity Series for Storage or Transport (Round Canisters) YR05393 // YR05402
Select options -
Medical Medium Sized Storage Series YR05357 // YR05364
Select options -
Small Sized Storage Series (Square Racks) YR05371 // YR05382
Select options -
High Capacity Series for Storage or Transport (Round Canisters) YR05403 // YR05416
Select options
Guides to becoming an expert in Nitrogen Tanks
Nitrogen Tanks for the Conservation of Biological Samples
Liquid nitrogen, which is more expensive than dry ice, is generally used for biological sample conservation and there...
How are Nitrogen Tanks used for food preservation?
The preservation of food is a key stage in the production and consumption chain, since it prolongs the shelf life of the ...
Importance of Liquid Nitrogen for Fire Extinguishers
Fires are undoubtedly one of the least desired events, because of the risk it poses to life and the material good...
What are Liquid Nitrogen tanks and what are they used for in a Laboratory?
Liquid nitrogen tanks are units used for the conservation of laboratory samples at very low temperatures. Due to fast freezing, it prevents damage to structures and protects processes from moisture, oxidation and contamination...
