Operation Lamp
The lighting of an operating room is one of the essential aspects to consider to achieve success in any of the surgical procedures carried out in these places. This illumination is done through the operation lamps that are special lamps designed to illuminate the surgical area, thus providing a bright and uniform illumination centered on the operating table during the surgical act.
Operating lamps provide the correct illumination during a surgical procedure. The light from these lamps is white, because in the operating room the doctor needs to observe clearly the color of any organ or tissue, as this is an indicator of the patient's condition and health. In turn, they also have the ability to emit hours of bright light without overheating the patient or health care personnel involved in the intervention.
![YR02122.jpg](https://www.kalstein.pk/wp-content/uploads/2024/03/YR02122.jpg)
Types of Operating Lamp that your Operating Room needs
![YR02109.jpg](https://www.kalstein.pk/wp-content/uploads/2024/05/YR02109-250x250.jpg)

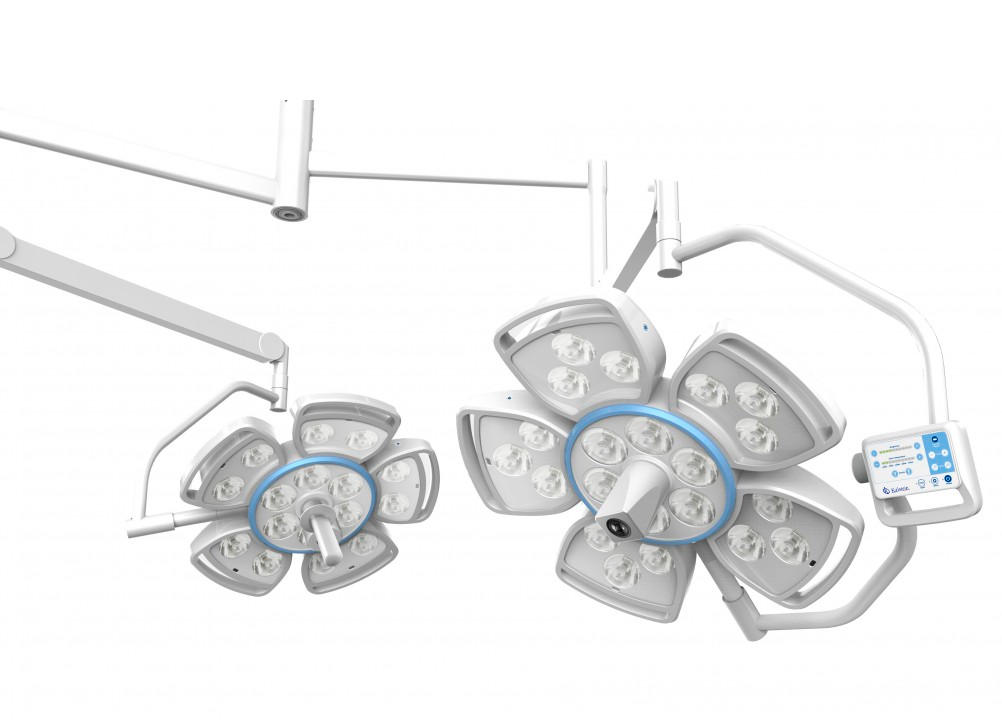

Operation Lamp YR02106 // YR02112
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable...
![YR02118.jpg](https://www.kalstein.pk/wp-content/uploads/2024/05/YR02118-250x250.jpg)

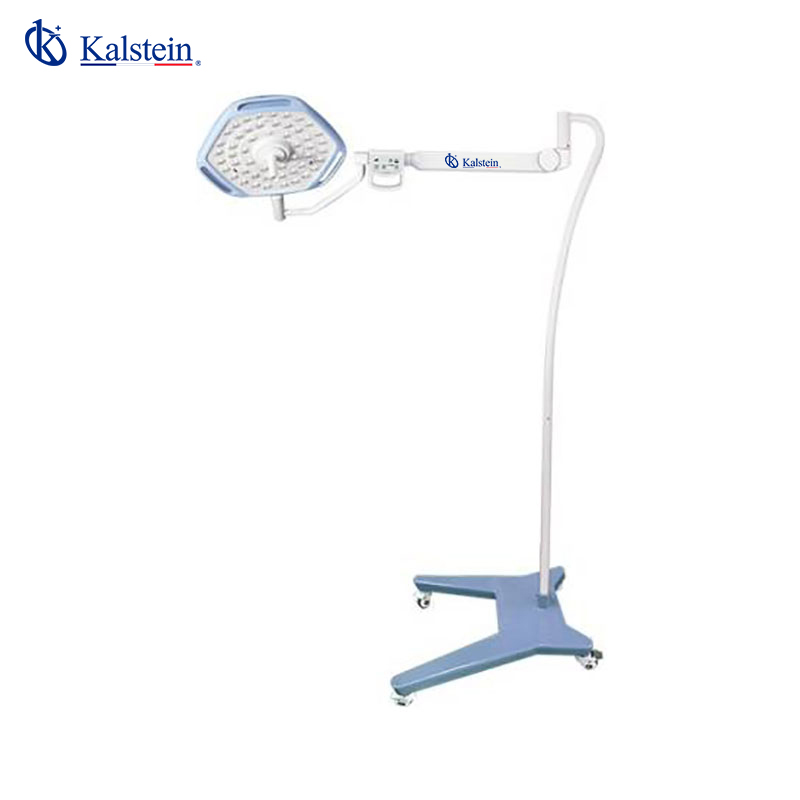

Operation Lamp YR02115 // YR02123
Light focus controlled by the sterile handle. One button for max. illuminance. Endo mode. Optional adjustable color temperature...
![YR02130.jpg](https://www.kalstein.pk/wp-content/uploads/2024/05/YR02130-250x250.jpg)

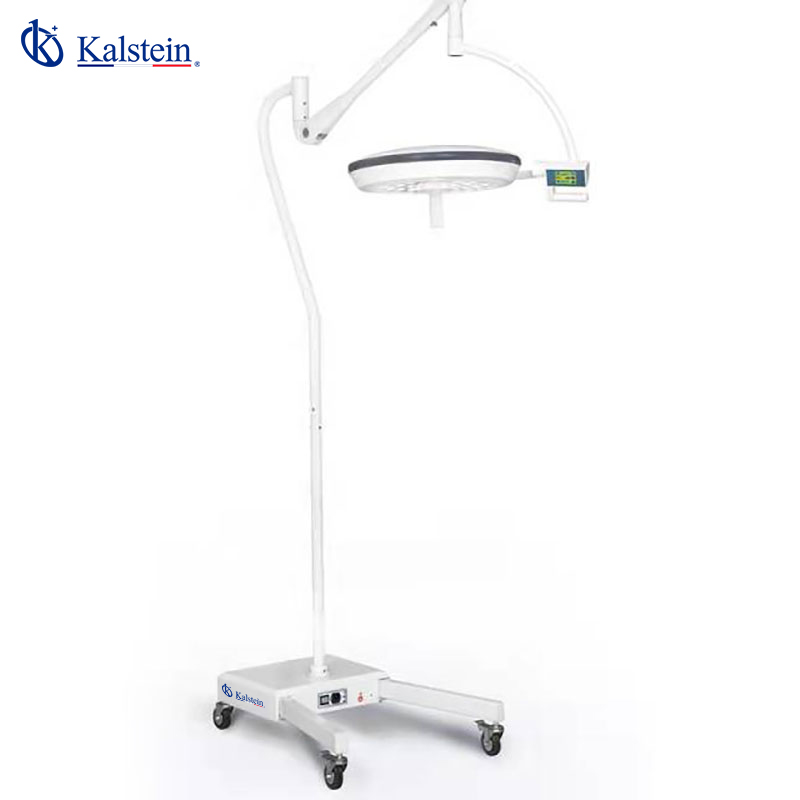

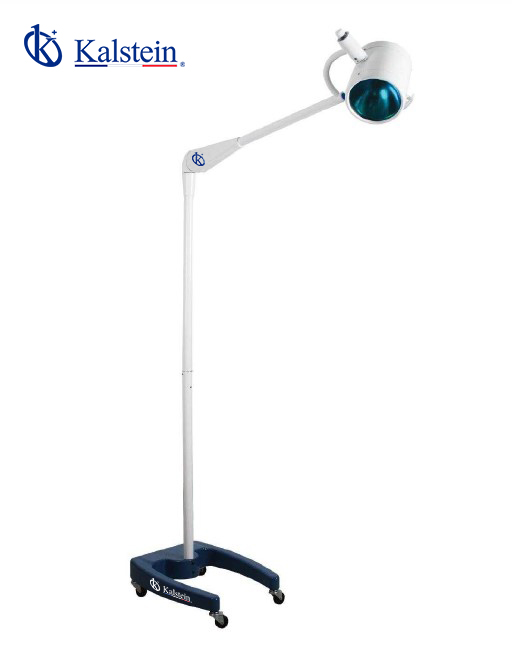

Operation Lamp YR02125 // YR02140
Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team...
![YR05996.jpg](https://www.kalstein.pk/wp-content/uploads/2024/05/YR05996-250x250.jpg)
Operation Lamp YR05996 // YR06004
Cold light operation lamp meets the requirements of lighting for surgical operations in special circumstances...

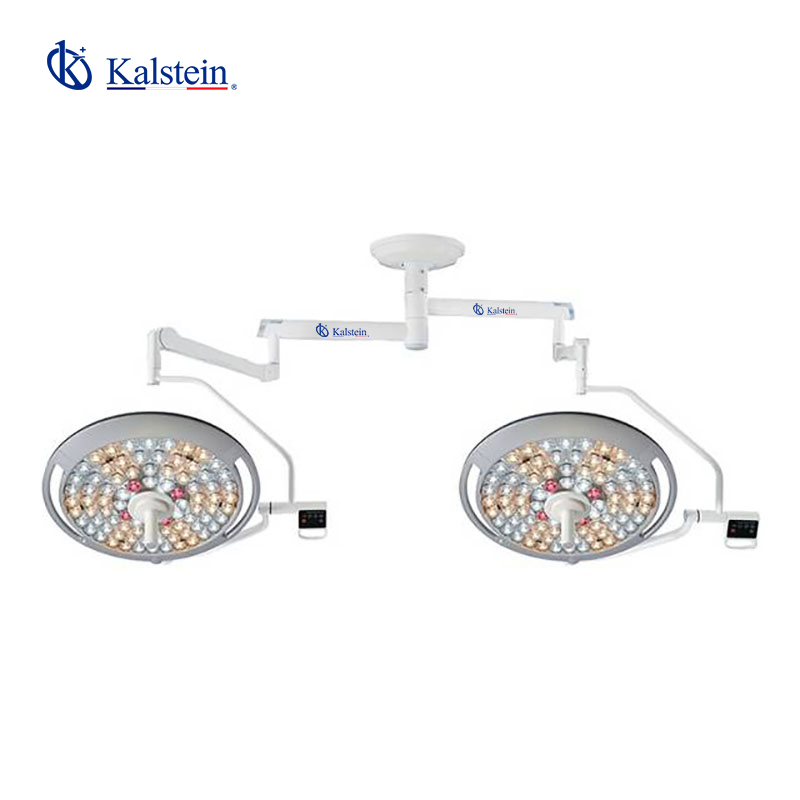

Our Best Selling Operating Lamp
Adopt imported LED cold light source.
Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect.
Intelligent touch control screen.
The removable handle sheath can be cleaned and disinfected.
The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely.
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.
Adjustable temperature, R9 features that enhance the red color rendering index.
The service life of LED shadowless lamp is long (50,000h).
Model | YR02106 | YR02107 | YR02108 | YR02109 | YR02110 | YR02111 | YR02112 |
Illumination at 1m(lux) | 160000/160000 | ||||||
Illumination at 1m on Endo model(lux) | 15000 | ||||||
Light field diameter D10 mm | 180±40/180±40 | 180-300 | |||||
D50 mm | 110±35/110±35 | 180-300 | |||||
Depth of illumination L1+L2 mm | 150 | >1000 | |||||
Color rendering index(Ra) | 100≥Ra≥85 | ≥97 | |||||
Red color index R9 | R9≥97 | ≥97 | |||||
Optional color temperature(K) | 6700K ≥Tc≥3500k | 6700K ≥Tc≥3000k | 4500K±500K | ||||
Average bulb life (hours) | 50000h | >50000h | |||||
Heat-to-light ratio(mW/m ²lx) | <6 | ||||||
Power supply | 110-240V | AC110-240V 50/60Hz | |||||
Input power(VA) | 150W/150W | ||||||
Ceiling height for installation(cm) | 270-320 cm | 260 cm |
![YR02106.jpg](https://www.kalstein.pk/wp-content/uploads/2024/05/YR02106-350x350.jpg)
Analysis of the best Operating Lamp for your operating room
![Closeup of modern medical/surgical lamp in operation room in the](https://kalstein.net/es/wp-content/uploads/2022/08/closeup-of-modern-medical-surgical-lamp-in-operati-2021-09-03-04-19-53-utc-scaled.jpg)
Surgical lamps: models and applications
Proper lighting in an operating room is so important, as it offers a number of benefits to the doctor and the patient...
![Male surgeon getting ready for surgery, fixing lamps and adjusting light in operation room](https://kalstein.net/es/wp-content/uploads/2022/08/male-surgeon-getting-ready-for-surgery-fixing-lam-2021-08-26-15-28-03-utc-scaled.jpg)
Surgical lamp: How should it be used?
Surgical lamps are devices used to illuminate the surgical field for a long time allowing an optimal visualization of small...
![Surgical Lights in an Operation Room](https://kalstein.net/es/wp-content/uploads/2022/08/surgical-lights-in-an-operation-room-2021-08-26-16-38-06-utc-scaled.jpg)
What is the name of the lamp of an operating room?
Surgical lamps, are those whose primary function is to illuminate the field of surgery and facilitate the visibility of the environment...
![professional-medical-team-performing-surgical-oper-2021-10-28-21-20-14-utc](https://kalstein.net/es/wp-content/uploads/2022/08/professional-medical-team-performing-surgical-oper-2021-10-28-21-20-14-utc-scaled.jpg)

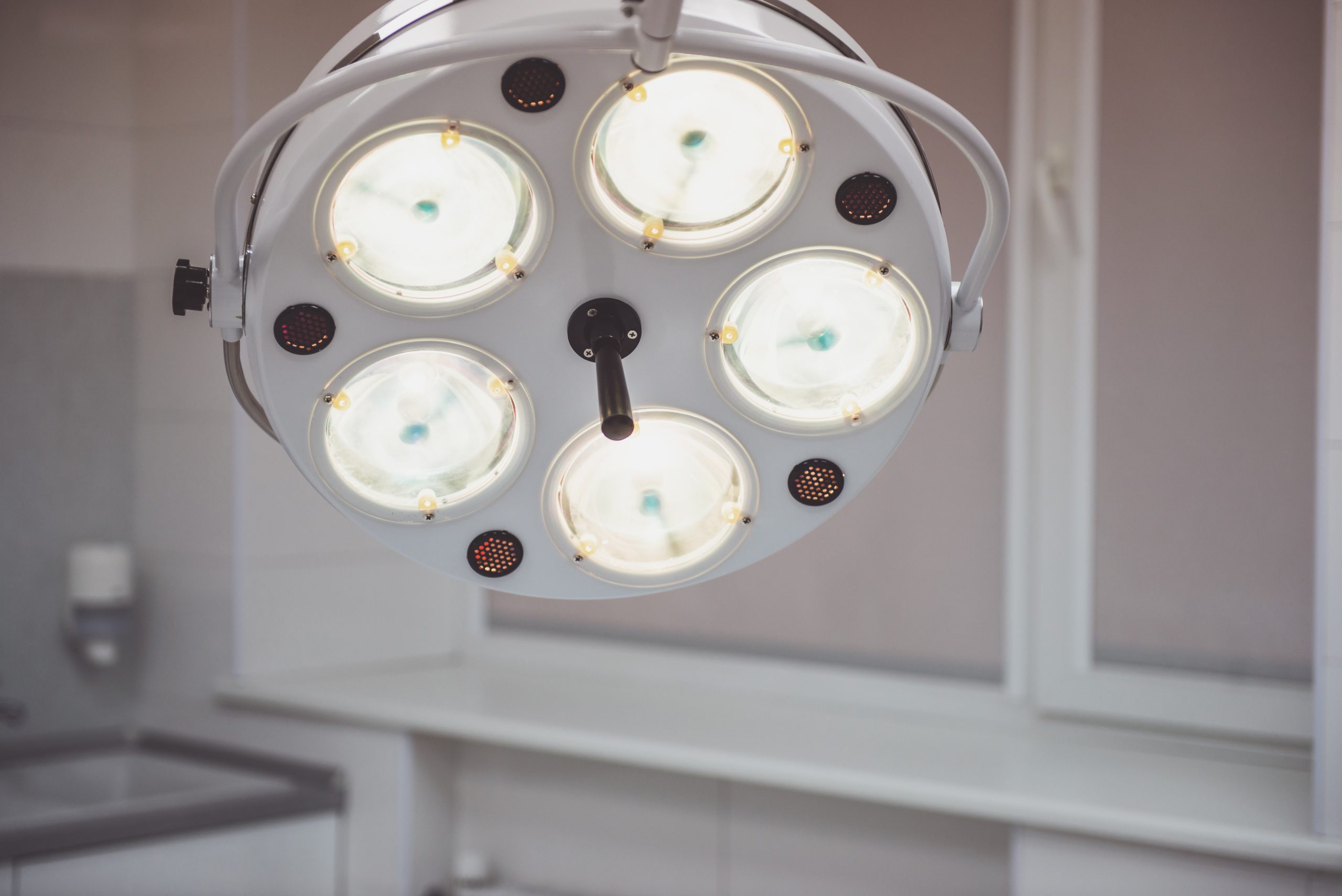

Different Kinds of Surgical Operation Lamps
The lamps used in the operating room are conditioned to provide optimal lighting during the operation process...
Catalog of models of Operation lamp on offer
-

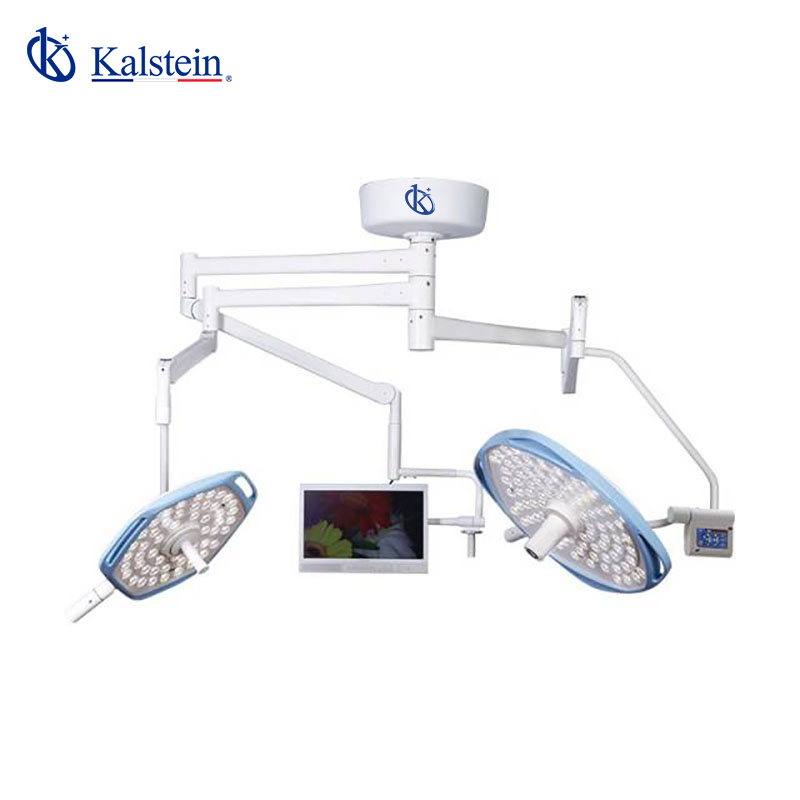

LED Surgical Light YR02113 – YR02114
Select options This product has multiple variants. The options may be chosen on the product page -

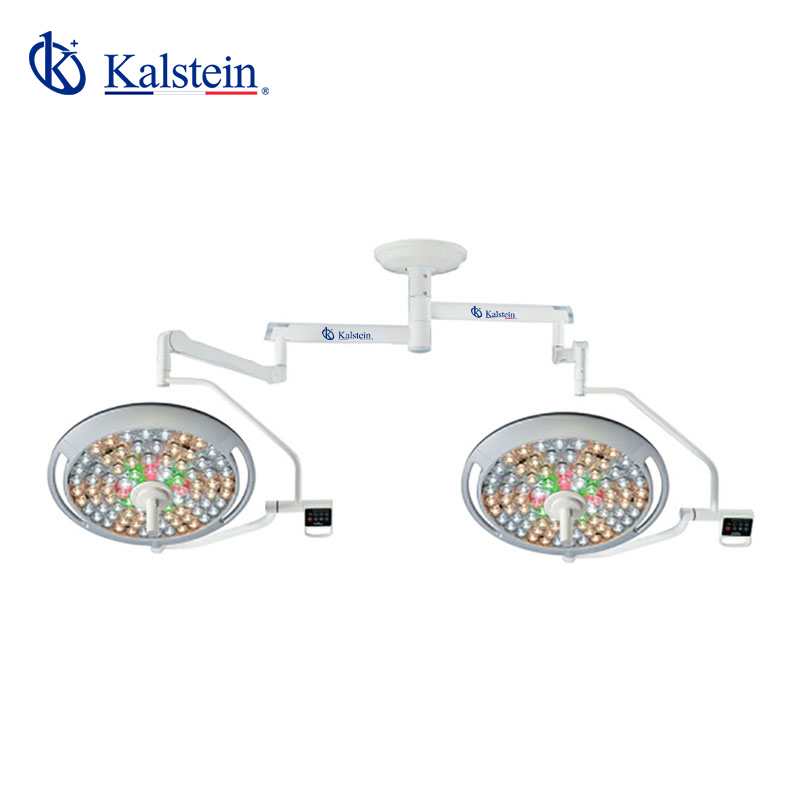

LED Surgical Light YR02104 – YR02105
Select options This product has multiple variants. The options may be chosen on the product page -
Operation Lamp YR02106 // YR02112
Select options This product has multiple variants. The options may be chosen on the product page -
Operation Lamp YR02125 // YR02140
Select options This product has multiple variants. The options may be chosen on the product page
Guides to becoming an expert in Operating Lamp
What kind of lighting should there be in an operating room?
The operating room is the place where surgical interventions are carried out in hospitals or clinics, this place requires...
Operating lights How should an operating room be lit?
Lighting in an operating room is considered one of the key elements for the success of surgical procedures carried...

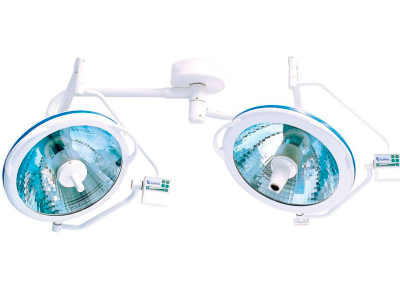

Why is an operating lamp in an operating room essential?
Lighting inside an operating room is considered one of the fundamental factors to obtain successful and uncomplicated...
Operating lamp: what color should the lighting have in an operating room?
One of the aspects that is important that is part of the needs of a surgeon at the time of operating, is lighting; in operating rooms certain basic elements are needed for the surgeon to do his job such as: a sterilized environment, gowns and surgical material; operating table...
