Product Description

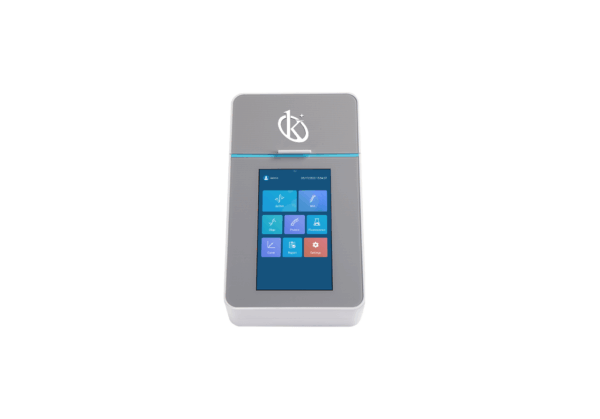

YR06062 is used for high sensitivity quantitative analysis of DNA, RNA and protein. YR06062 is available to do the fluorescence detecting for 8 samples in simultaneous. High precision detection method reduces the variation effectively. Easy and humanized software, intuitive user interface and rapid test method greatly shorten the testing time.
Technical Specifications
| Model | YR06062 |
| Light source | LED |
| Excitation filter | Blue: 460±20 nm Red: 625±20 nm |
| Emission filter | Green: 525-570 nm (45 nm) Red: 670-725 nm (55 nm) |
| Detector | Photodiode |
| Throughput | 8 |
| Sample tube type | 0.2 mL tube strip |
| Linear | R²≥0.995 |
| Linear range | 4 orders of magnitude |
| Sensitivity (detection limit) | <1 pg/uL (dsDNA HS) |
| Measurement time | ≤6 s/8 samples |
| Input power | 24 V 2 A |
| Operating voltage | 100-240 V@50-60 Hz |
| External port | USB (Type A) ×2, USB (Type B) ×1, LAN ×1 |
| Display | 7-inch touch screen |
| Size (D×W×H) | 286×161×75 mm |
| Weight | 2 kg |
| Storage capacity | 20000 programs |
Additional Information
| Weight | 9 kg |
|---|
