Description
Applied to animals of different weights and sizes
The non-breathing circuit interface is designed at the front of the machine, which is convenient for anesthetizing small animals
With pressure, volume, manual and other breathing modes, meet different clinical needs
The built-in high-precision sensor and valve control technology ensure the safety, stability and accuracy of pressure,flow and volume monitoring and control
Features
- Equipped with high-precision anesthesia vaporizer, three-year warranty
- Import of core parts and components from the international origin
- Equipped with 8-inch high-definition touch screen
- Triple visual and audio security alarm system to ensure safety during surgery
- Built-in proportional valve control system
- Integrated circuit, easy to install and remove
- Dome light system provides better vision for doctors Built-in battery, can last more than two hours
- Just set the weight, other parameters are automatically calculated
Technical Specifications

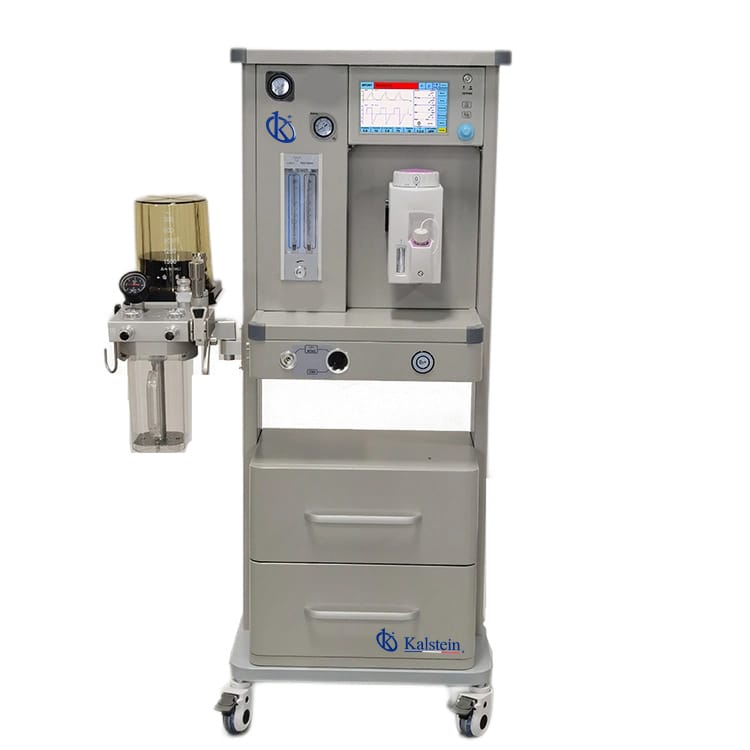

| Model | YR06100 |
| Working Mode | Closed,Semi-closed,, semi-open system,Open |
| Driven mode | Pneumatically driven manual controlled |
| Application | 0.5-100kg animal |
| Anesthesia gas source switch | start or stop the gas source control |
| Alarm parameter | Upper tidal volume alarm,low oxygen alarm,Apnea,Power failure |
| Oxygen flush | 25L/min~75L/min |
| Airway pressure | O2:0.25Mpa~0.65Mpa |
| Concentration range | Halothane: 0.2 to 5% lsoflurane: 0.2 to 5% Sevoflurane: 0.2 to 8% |
| Flow rate range | 0.2 to 15L/min0.2 to 10L/Min (normal application) |
| Anesthetic volume | 340ML (dry cavity) 300ML (wet cavity) |
| Suspension type | Selectatec international standard type |
