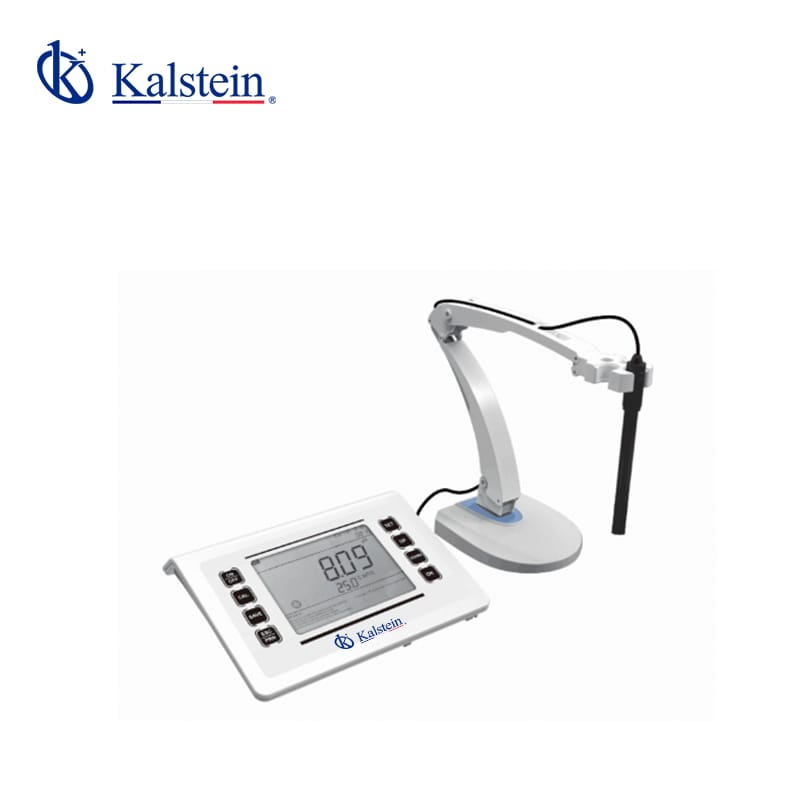

YR01828 Benchtop Conductivity / TDS / Salinity / Resistivity Meter
Manufacturer: Kalstein
Product Description
Professional benchtop conductivity meter contains 4 measurement modes, the meter is suitable for measuring the conductivity, TDS, salinity and resistivity, accuracy: 0.5% F.S.
Features:
• Professional benchtop conductivity meter is equipped with a 7 inch TFT display.
• 1 to 3 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant, reference temperature, TDS factor, linear/non-linear/pure water
compensations, percentage/seawater/practical salinity measurement modes.
• Automatic temperature compensation corrects conductivity measurment to reference
temperature.
• Auto-Read function senses and locks the measurement endpoint.
• Timed Interval Readings sends the measurement data to a PC or printer.
• Limit Alarm automatically alerts when reading exceeds the specified range.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Calibration report shows the date, time, calibration point and factor.
• Password protection prevents the unauthorized calibration and settings.
• Expanded memory stores or recalls up to 1000 data sets.
• Reset function automatically resumes all settings back to the factory defaults.
| Model | YR01828 |
| Conductivity | |
| Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Accuracy | ±0.5% F.S. |
| Calibration Points | 1 to 3 points |
| Calibration Solutions | 10µS, 84µS, 1413µS, 12.88mS, 111.8mS |
| TDS | |
| Range | 0 to 10.00, 100.0, 1000mg/L, 10.00, 200.0g/L |
| Resolution | 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| TDS Factor | 0.1 to 1.0 (default 0.5) |
| Salinity | |
| Range | 0.00 to 80.00ppt, 0.00 to 42.00psu, 0.00 to 8.00% |
| Resolution | 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| Resistivity | |
| Range | 0.00 to 30.00MΩ |
| Resolution | 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| Temperature | |
| Range | 0 to 105°C/32 to 221°F |
| Resolution | 0.1°C/0.1°F |
| Accuracy | ±0.5°C/±0.9°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C |
| General Specifications | |
| Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
| Temperature Coefficient | Linear (0.0 to 10.0%/°C), non-linear, pure water |
| Reference Temperature | 20/25°C |
| Cell Constant | 2-pole electrodes (K=0.1, 1, 10) or 4-pole electrode |
| Hold Function | Manual or auto-endpoint |
| Stability Criteria | Standard or high-accuracy |
| Calibration Due Alarm | 1 to 31 days or off |
| Interval Readings | 10, 30, 60 seconds, 10, 30 minutes or off |
| Password Protection | 4 digits |
| Memory | Stores up to 1000 data sets |
| Output | USB communication interface |
| Connector | 6-pin nimi-DIN, 3.5mm jack socket |
| Display | 7” TFT LCD |
| Power | DC12V, using AC adapter, 220V/50Hz |
| Dimensions | 240(L)×220(W)×80(H)mm |
| Weight | 1.7kg |
| Order Code | Accessories |
|
YR01828
|
CON-1 conductivity electrode |
| TP-10K temperature probe | |
| Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm | |
| DC12V power adapter | |
|
YR01828-2
|
CON-0.1 conductivity electrode |
| CON-1 conductivity electrode | |
| TP-10K temperature probe | |
| Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm | |
| DC12V power adapter | |
|
YR01828-1
|
CON-1 conductivity electrode |
| CON-10 conductivity electrode | |
| TP-10K temperature probe | |
| Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm | |
| DC12V power adapter |
Additional Information
| Weight | 1,7 kg |
|---|---|
| Modelo | YR01828, YR01828-2, YR01828-1 |
