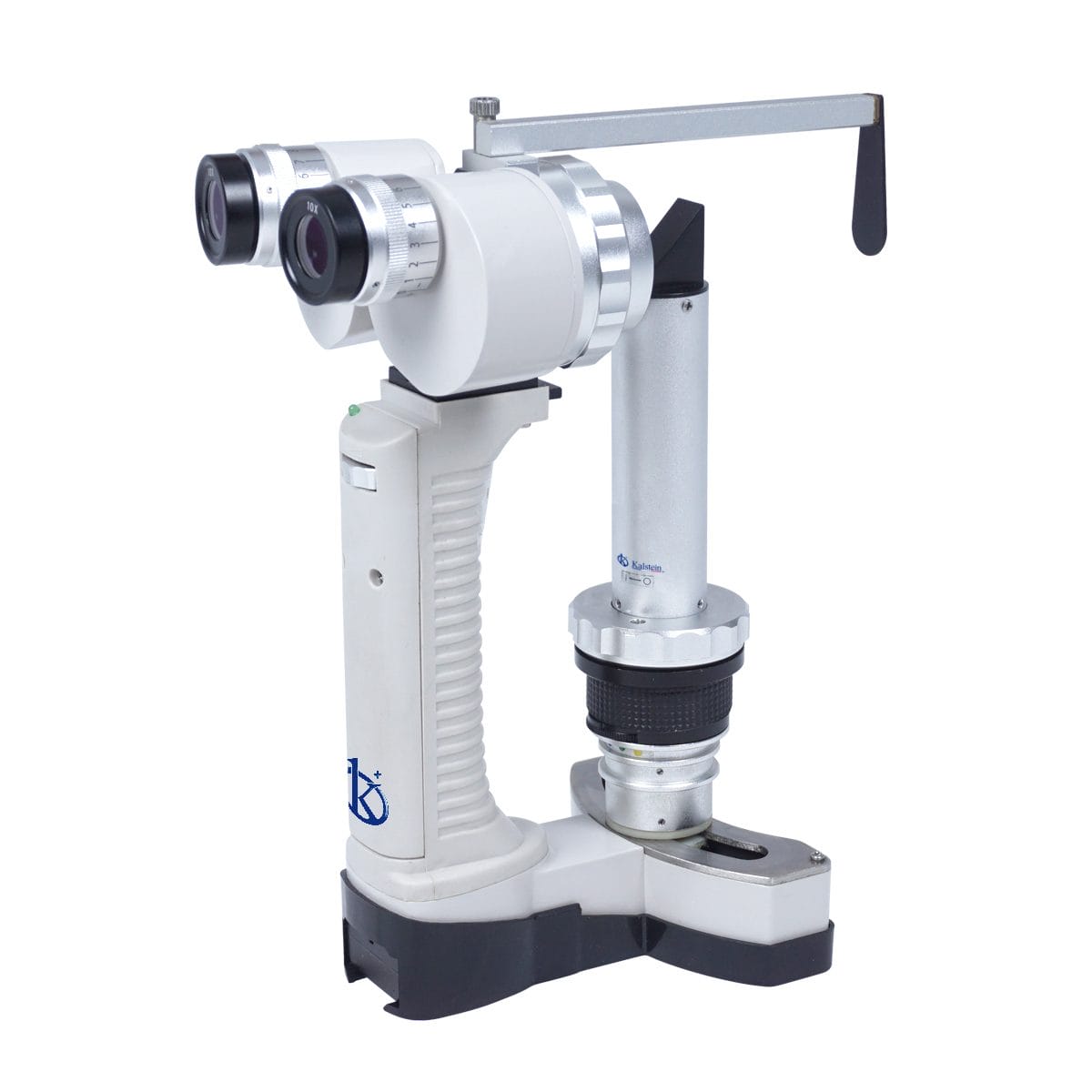

Veterinary Handheld Slit Lamp (2-Magnification) YR06199



Portable slit lamp adopts high-brightness, cold-light illuminator, without external power supply.

High-brightness LED, cold-light illuminator, its brightness up to 15000 LUX, service lift more than 50000 hours

Sharp slit, the width can be adjusted continuously

Telescopic forehead-rest, easier to observe and adjust the diopter.

Easier to adjust the magnification by revolvable objective lens

Small and light, only 700g including battery

Different filter, Heat filter, light-reducing filter, red filter and cobalt filter

Full power supplied by battery can drive the slit lamp for 5-6 hours.

Technical Specifications
Model Item YR06199
Microscope Type Converging
Objective Lens 1.0X、1.6X
Eyepiece 10X
Total Magnifications 10X、16X
Working Distance 81mm
Intraocular Distance 45mm―78mm
Diopter Adjustment -8D―+8D
Slit Width 0―12mm Continuous
Slit Height 1-12mm
Slit Angle ф0.2mm,ф1mm,ф5mm,ф12mm
Filters Heat Absorption; Yellow; Redfree(Green); Cobalt Blue
Illumination Bulb High-Brightness White LED
Brightness ≥30000Lux
LED Working Voltage d. c. 3 V
Battery Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously
Weight and Dimension
Dimension 169.5mm×109.5mm×228.5mm
Weight ≤4kg (Including Battery)

Additional information

Weight 5 kg
