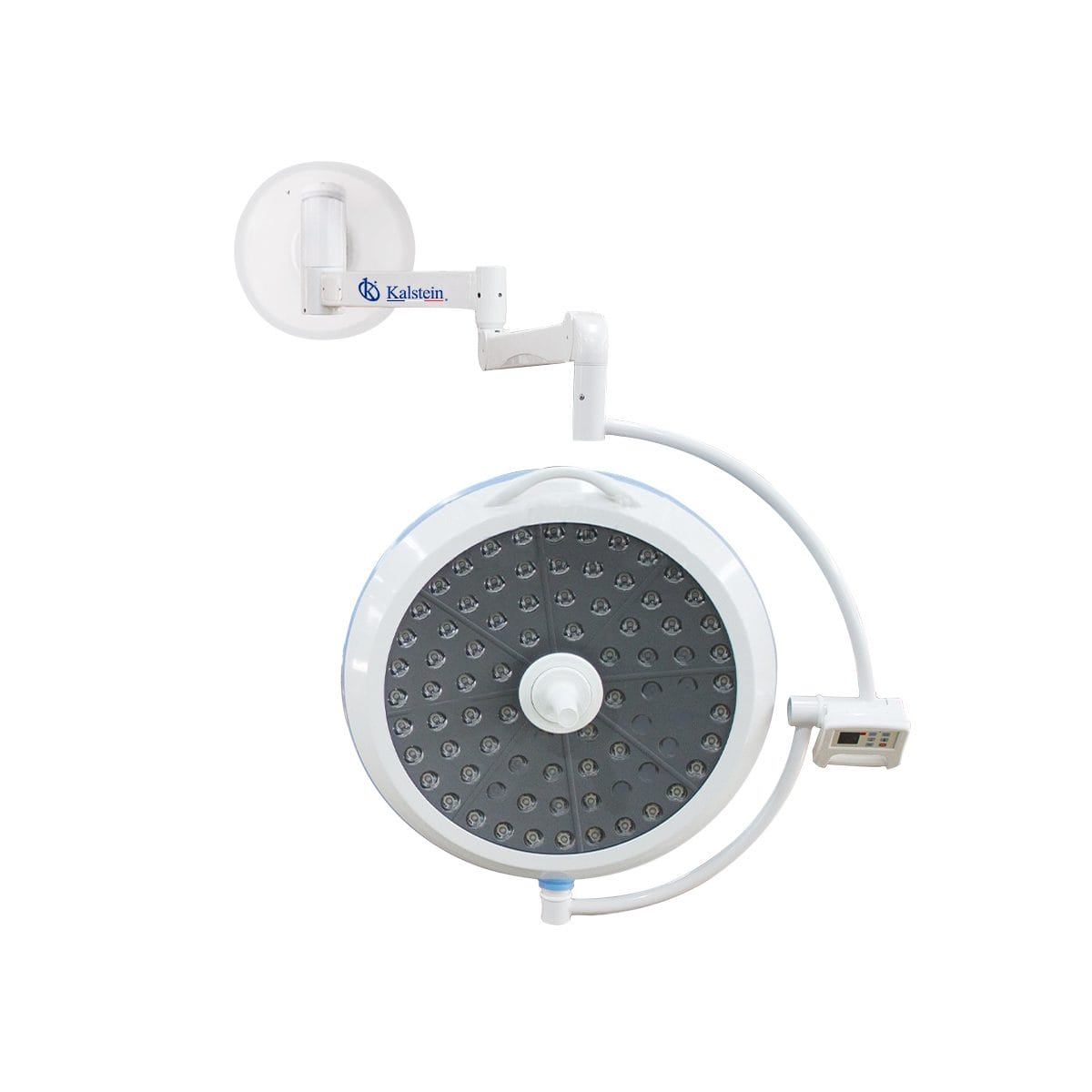

LED Shadowless Operating Lamp YR06118



Ideal appearance design to comply with purification requirements

The design of fully enclosed and streamlined light head conforms to the aerodynamics principle, which thoroughly eliminates the flow dead corners in the purified air and meets the high-standard laminar requirements and aseptic requirements in modern operation rooms.

The light head contains sterilization handle and handrail, so veterinary staff can move and position the light head flexibly at any angle.

  • Perfect cold light effect: Using LED cold light source, it contains no ultraviolet or infrared rays in the spectrum, which brings neither heat nor radiation. The temperature rise above doctor’s head and wound area is not more than 1℃.
  • Extra-long service life: The novel LED cold light source supports to the working time of 60,000 hours without changing bulbs.
  • Good suspension system: Lightweigh suspension system contains balance arm, six groups of universal joints, linkage, 360ºrotary light heads, sterilized handle, fence handrail, etc.
  • Sophisticated focusing system: Manual focusing technology enables simple operations and realizes stepless focusing function. The detachable handle can be sterilized by high temperature (≤134℃).
  • Ultra-strong deep lighting: The overall design of LED light head concentrates the light beam into a high-brightness uniform light column, thereby ensuring the deep focusing effect and the high-brightness surgery lighting requirements.
Technical Specifications
Model YR06118
Mounting Wall-mounted
LED bulbs 80pcs
Illuminance 40000~160000Lux
Color temperature 3000~6700K adjustable
Diameter of light spot 160-280mm
Dimming system Continuous dimming system
Color rendering index ≥96
Lighting depth ≥600mm
Temperature rises at operator’s head ≤1℃
Temperature rises at operating field area ≤2℃
Color rendering index (CRI) ≥96
Color rendition index ≥97
Voltage 220V, 50Hz
Optimum installation height 3.0m
Lowest installation height 2.8m

Additional information

Weight 45 kg
