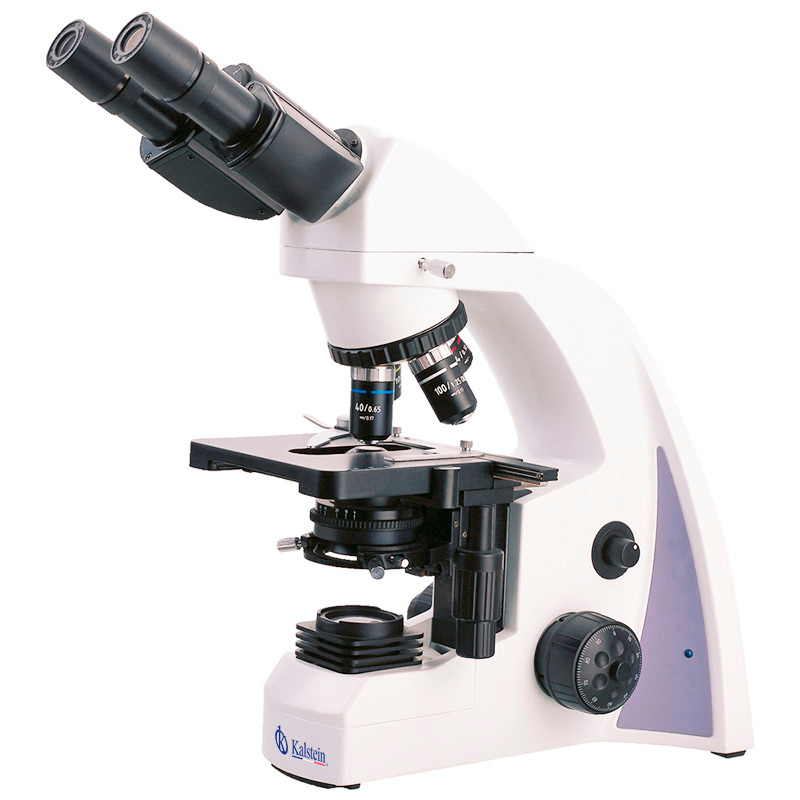

Laboratory Microscope YR0237



  • Binocular Head, WF 10x/18mm Eyepieces
  • Infinity Semi-Plan Achromatic Objectives
  • Sliding-in Center Adjustable Condenser N.A1.25
  • Confortable coarse & fine focusing Knob
  • Brigthness control Knob
  • Power Indicator Light
Technical Specifications
Model YR0237 YR0237-1

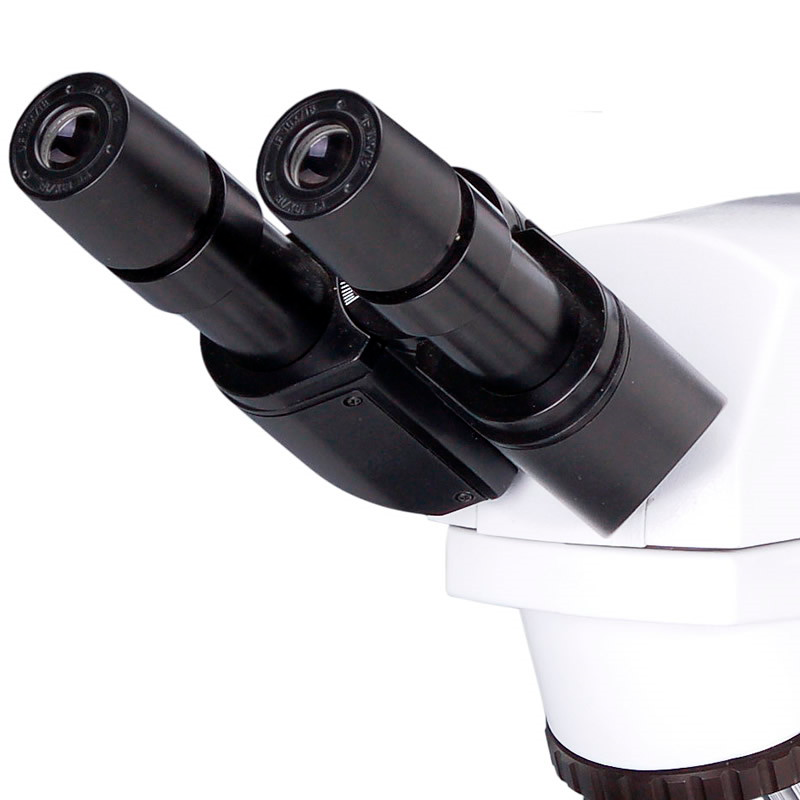

Head Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down o
Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down o
Eyepiece Wide Field Eyepiece WF10x/18mm

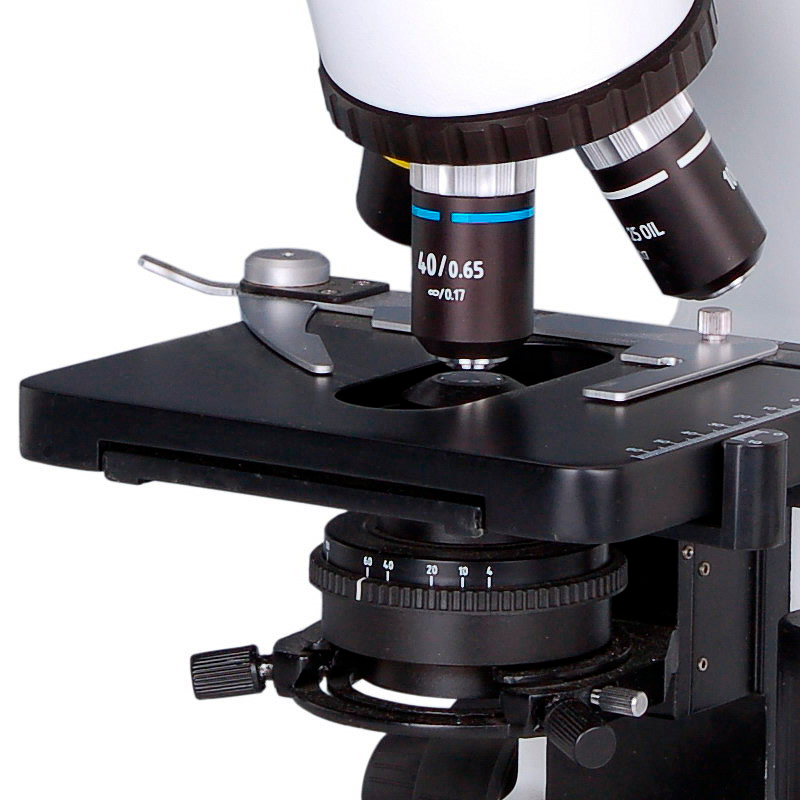

Objective Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x
Nosepiece Backward Quadruple Nosepiece
Stage Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm
Condenser Sliding-in Center Adjustable Condenser N.A.1.25

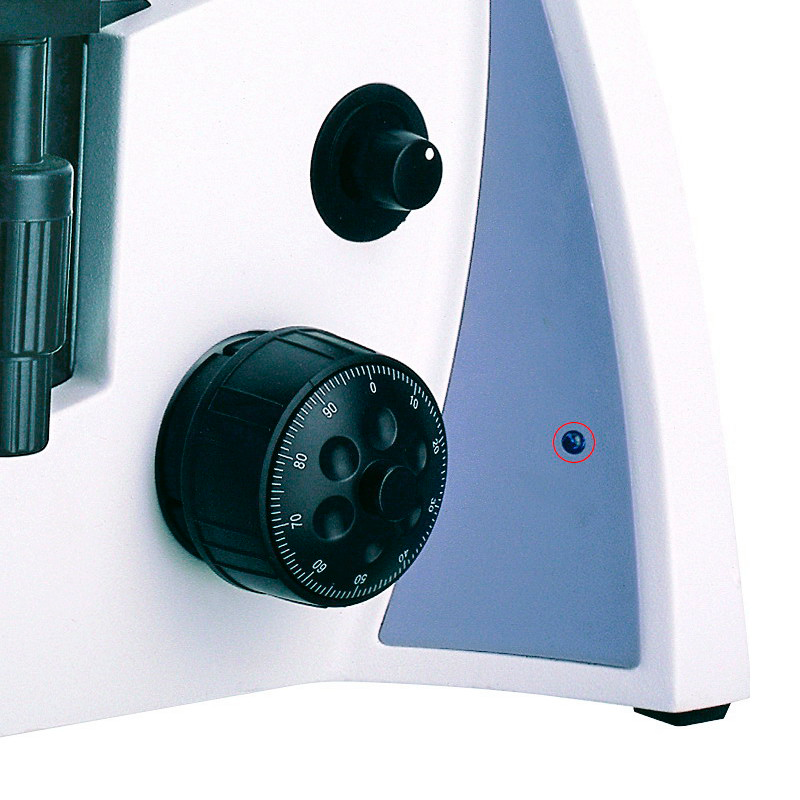

Focusing Coaxial Coarse & Fine Adjustment, Moving Range 20mm
Illumination S-LED Illumination, Adjustable Brightness
Laboratory Biological Microscope Optional Accessories
Eyepiece WF10x/20mm, Diopter Adjustable YR0237-1-op1
Objective Infinity Plan Achromatic Objective 4x YR0237-1-op2
Infinity Plan Achromatic Objective 10x YR0237-1-op3
Infinity Plan Achromatic Objective 40x YR0237-1-op4
Infinity Plan Achromatic Objective 100x YR0237-1-op5
Illumination 6V20W Halogen Lamp, Brightness Adjustable YR0237-1-op6
Dark Field Dark Field Condenser, Dry, N.A.0.7~0.9 YR0237-1-op7
Dark Field Condenser,Immersion, N.A.1.25~1.36 YR0237-1-op8
Dark Field Objective, Infinity Plan 100X, YR0237-1-op9
ForImmersion Dark Field Observation
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm YR0237-1-op10
ForImmersion Dark Field Observation
Phase Contrast Infinity Plan Turret Phase Contrast Set YR0237-1-op11
–Infinity Plan Turret Phase Contrast Condenser
–Ininity Plan Phase Contrast Objective 4x,10x,40x,100x
–Centering Telescope 10x
Infinity Achromatic Turret Phase Contrast Set YR0237-1-op12
–Infinity Achromatic Turret Phase Contrast Condenser
–IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x
–Centering Telescope 10x
LED EPI-Fluorescent Kit EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 YR0237-1-op13
EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 YR0237-1-op14


Additional information

Weight N/A

YR0237, YR0237-0-1 Infinity Plan, YR0237-1, YR0237-1-1 Infinity Plan
