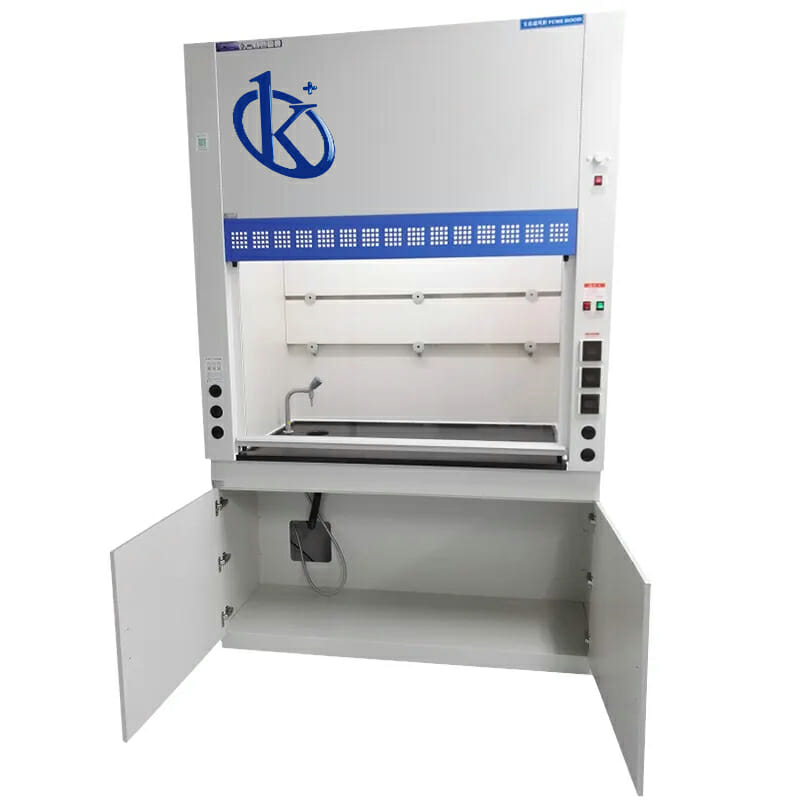

Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05817 // YR05819

ManufacturerKalstein

Description

  • Front Panel
  • Liner and guide baffles 5mm thick anti melamine board
  • (Window) 5mm thick tempered glass
  • Laboratory dedicated PP Cup
  • Built.in drain pioe
  • Lower Side Plate
  • Lower back plate
  • Lower Movable floor
  • Built in axial fan, air collector and anti-corrosion hose
  • With wind regulator
  • Upper side panel (1.2mm thick galvanized steel plate, epoxy sprayed outiside)
  • Built in LED tube
  • Fan and lamp switch
  • Multifunctional splash proof socket
  • 12.7mm corrosion proof solid core, physical and chemical board mesa
  • Door frames and door panels
  • Adjusting foot
Technical Specifications
Model YR05817 YR05818 YR05819
External Size (W*D*H) (mm)  1200*800*2350 1500*800*2350 1800*800*2350
Internal Size (W*D*H) (mm)  950*700*1150 1250*700*1150 1550*700*1150
Work Surface  Height  800mm
Max Opening of window   750mm
Air Velocity/Exhaust air volume  0.4-0.6m/s,800-1000m³/h
Noise  ≤60dB
LED Lamp  10W*1
Blower  Built-in axial flow blower;Speed adjustable.
Front Window  Manual,5mm toughened glass,height adjustable.
Power Supply  AC220V±10%,50/60Hz;
Consumption  100W
Material Main Body 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner Side 5mm thickness compact,resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard  Accessory   LED lamp,Built-in axial flow blower with speed adjustable.
Waterproof socket*3
3 meter PP duct,Diameter:250mm
Optional  Accessory epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink
Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight   235

265

300

Additional information

Weight N/A
Model

YR05817, YR05818, YR05819
