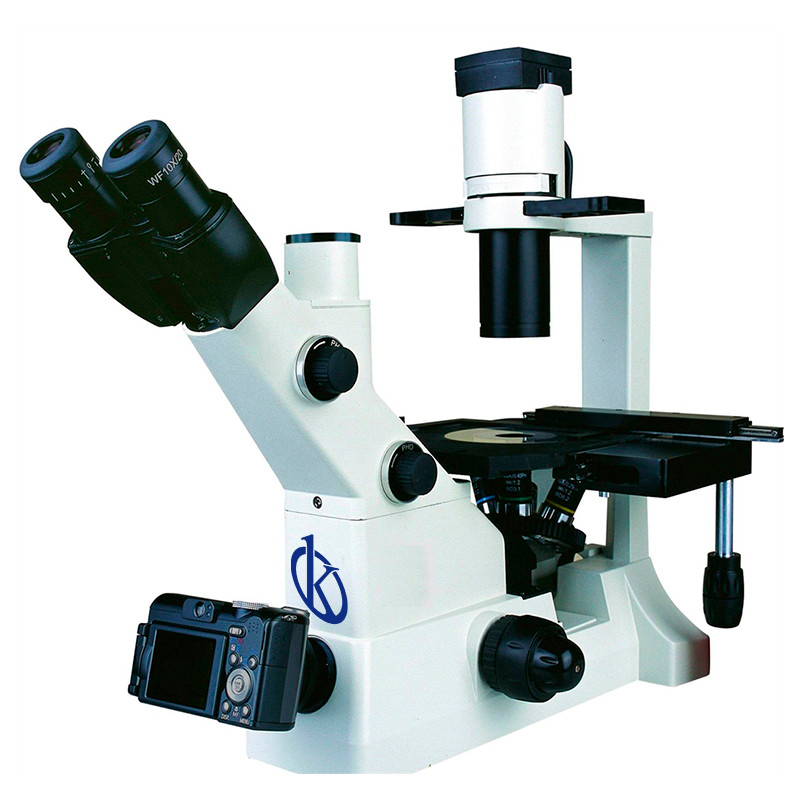

Inverted Microscope YR0245

ManufacturerKalstein

Product Description

The optical microscope or organic microscope is an instrument equipped with a lens and an eyepiece to enhance the image of an object to perceive details. This is the perfect tool for your infinitely small conquest.

The laboratory microscope is used for routine use. It enables the infinitely small to be visualized with great precision and impeccable image quality.

Therefore, our selection highlights efficient, ergonomic and robust microscopes, essential features for high-quality observation.

Technical Specifications
Modelo YR0245
Optical System Infiniy Optical System
Head Siedentopf Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary 48-75mm
Eyepiece Wide Field Eyepiece WF10×/22,Eyepiece Tube Diameter 30mm
Nosepiece Backward Quintuple Nosepiece
Objective LWD Infinity Plan Achromatic Objective 4x//0.10 W.D.=22
LWD Infinity Plan Phase Contrast Objective 10x/0.25 W.D.=6
20x//0.4 W.D.=3.1
40x/0.55 W.D.=2.2
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving Range Up 4.5mm / Down 4.5mm
Condenser ELWD Condenser N.A.0.3, Long Working Distance 72mm,
Without Condenser Reach 150mm Enough For Petri Dish
Phase Contract Centering Telescope (φ30mm)
Phase Annulus Plate 10x,20x,40x (Adjustable)
Working Stage Large Plain Working Stage 230×170mm
Glasse Insert
Attachable Mechanical Stage,X,Y Coaxial Control,Moving Rang 80×120mm
Auxiliary Stage
Terasaki Holder
Petri Dish Holder φ38
Petri Dish Holder φ54
Illumination 6V/30W Halogen Lamp, Brightness Adjustable
Filter Blue,Green, Frosted Glass, DIa. 45mm
Optional Accessories Item No.
Eyepiece Wide Field Eyepiece WF15x/16 YR0245-op1
Wide Field Eyepiece WF20x/12 YR0245-op2
Objective Lamp House Adjustment Objective YR0245-op3
Adapter 1.0x C-Mount YR0245-op4
0.5x C-Mount YR0245-op5

Additional Information

Weight 15 kg
