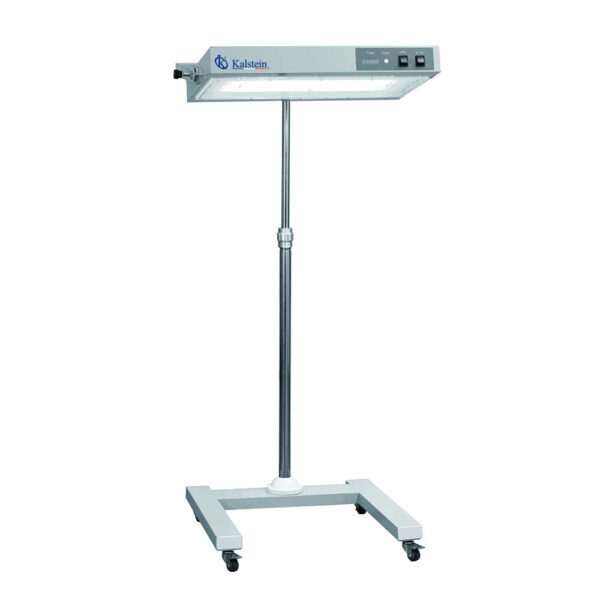

Infant Bilirubin Phototherapy Unit YR02194

Manufacturer: Kalstein

Product Description

The newborn patients with hyperbilirubinemia all need best care for threating jaundice. Our line of phototherapy products supply you the reliability and stability intensive phototherapy by LED light for your baby patient. The unit has a long-life that provides 20,000 to 0,000 hours of light therapy.

  • LED fluorescent lamp as the phototherapy radianting elements
  • Angle of lamp heal can be adjusted horizontally.
  • Height of lamp head can be adjusted.
  • Stainless steel support stand can be adjusted.
  • Wheels can be locked
  • Timer to record the phototherapy operation.
  • Use in incubator, irradiant heat bassinets, and any kind of bassinet.

The YR02194 unit like YR02194 unit with blue florescent tube has independent framework can use with incubator, irradiant heat bassinets, and any kind of bassinet in family care. Widely applicable in all hospitals and clinics and optimize for jaundiced baby.

Model YR02194
Irradiation source LED Light
Irradiation wavelength range (300 ~ 550) nm
Irradiance adjustable from 1 to 99 levels 3 000 uw / cm2
Time calculator
Total time
Display range 0 – 9999 h
Adjustable working height
Effective shelf life 5 000h
Nominal Lifespan of Blue Light 20 000h
Energy consumption ≤ 50W
AC motor
Irradiation wavelength range 400 ~ 550nm
Adjustable irradiation intensity (max.) 3 000 uw / cm²
Wavelength of wave crest 460nm
Irradiance adjustable from 1 to 99 soft
A fixed time
Time totalizer
Display range (hour) 0 – 9 999h
Structural parts
Adjustable in vertical height 1 100 – 1 589mm
Useful life 5 000h
Nominal Lifespan of Blue Light 20 000h
Dimension 500 x 600 x (1 355 ~ 1 705) mm
Electric parts
Power supply AC (220 ± 22) V (50 ± 1) Hz
Energy consumption ≤50W
Room temperature 10 – 40 ° C
Relative humidity ≤80%
Motor AC

Additional Information

Weight 46 kg
