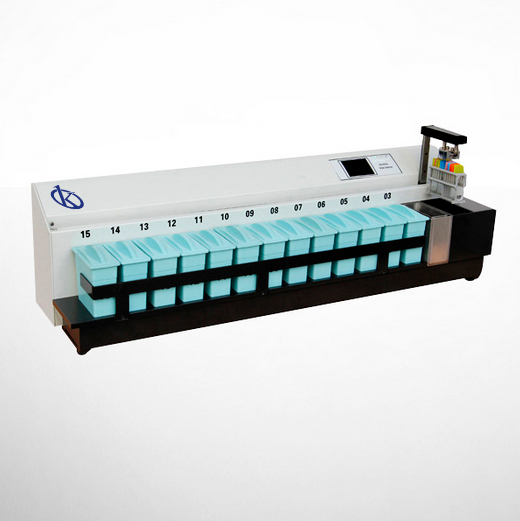

Fully automated slide staining YR436-1

Manufacturer: Kalstein

Product Description

Low-noise and wear-resistant flexible transmission system using imported high-quality materials and elements to ensure stable operation and reliable performance.

  • With its small footprint, this mini compact device can be positioned close to the section area for optimal workflow
  • With its intuitive touch screen interface and convenient communication between man and machine, operation is easy to learn and easy to use.
  • Integrated touch screen with a highly intelligent intuitive control system offers a full set of functions, reliable performance and easy operation
  • The robust APS coated housing, streamlined, easy to clean and highly resistant to corrosion
  • 24 runs can be stained simultaneously with a quick staining process
  • The slide rack can optionally be stopped up or dipped in a cup as per user selection after the staining process is complete, with a beep to alert the user
  • Allowing this device to be an ideal choice for H&E staining
  • Low-noise and wear-resistant flexible transmission system using imported high-quality materials and elements to ensure stable operation and reliable performance
  • Intelligent automatic inlet / outlet / drain flow system that ensures sufficient washing performance at each step and improves water efficiency
  • 25 sets of staining protocols can be programmed and stored in the system with each protocol containing 30 editable steps for staining
  • Operation error alert
Model YR436-1
Number of tanks 15 (station 1 is for drying, station 2 for washing and the 13 other stations for reagents)
Capacity of each tank about 350 ml
Duration of treatment in the tank adjustable between 0 and 59 minutes and between 0 and 59 seconds
Accuracy of temperature control ± 1%
Dripping time adjustable between 0 and 60 seconds
Stirring frequency adjustable between 0 and 6 times / minute
Working voltage AC220V ± 10% 50Hz (standard model); AC110V ± 10% 60Hz
Power 400W
Dimensions 925 × 250 × 260 mm (L × P × H)
Weight 27 kg

Additional Information

Weight 56 kg
