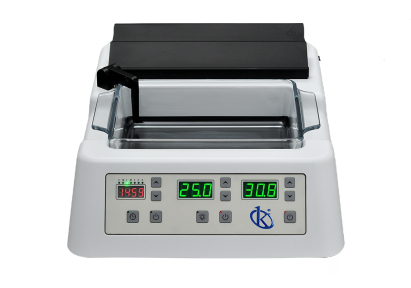

Floatation Workstation (Water Bath/slide dryer) YR456


Product Description

  • Pure-green digital screen for real-time monitoring of heating temperature, direct and clear, easy to operate; all parameters including preset temperatures, working temperatures, and wording status are real-time displayed
  • Temperature is automatically program-controlled by single-chip microprocessors
  • This device features multiple functions and its easy setting operation can meet the needs of different users;
  • Two independent heating tank with DC low-voltage illuminating system and removable transparent heating dish: easy operation and convenient observation
  • New heating mechanism using a new-type high-thermal-conductivity heating element provides even and quick heating: PID-controlled, Triple temperature controls, long lifespan, safe, reliable and energy-saving
  • Temperature is precisely measured by temperature-sensing integrated blocks made in USA, and all settings are automatically stored in the system
  • Special temperature-control and monitoring system characterized by strong resistance to abrasion and corrosion to ensure temperature precise;
  • Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system
  • Temperatures for floating and drying slides are individually controlled.
Technical Specifications
Model YR456
Left Temperature range of water bath RT – 70℃; automatically maintained
Right Temperature range of water bath  RT – 70℃; automatically maintained
Temperature range of slide dryer  RT – 100℃; automatically maintained
Automatic memory and restoration functions  After startup, all preset temperature data

are automatically stored in the system.

Temperature Control Precision ±2℃
Dimensions of water bath dish  155×155×55mm(W×D×H)
Dimensions of drying station(32pcs slides) 405×130mm(W×D×H)
Working Voltage  AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power  600W
Dimensions 475×460×175 mm (W×D×H)
Net weight 10kg

Additional Information

Weight 9,3 kg
