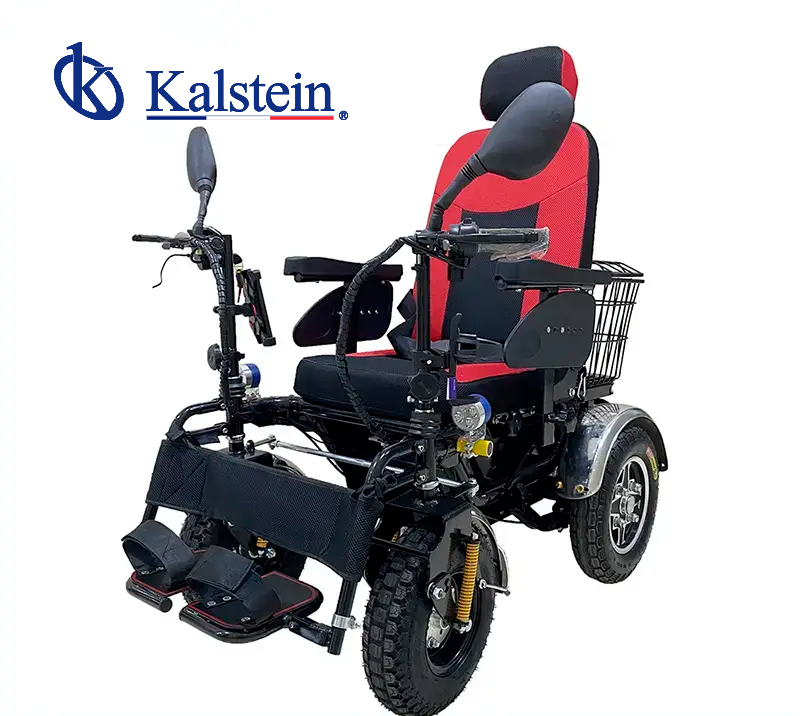

Electric Wheelchair YR05442

ManufacturerKalstein

Description

  • Electric strong power offroad wheels wheelchair for disabled and elderly people
  • Can climb 10cm high stairs and crawl slopes within 40degrees
  • Anti-slip design, the wheelchair will not slide backwards on the slope
  • Standard USB charging port, safety belt,optional selfie stiick bracket and personalized storage basket
  • Safe low-speed start design to avoid potential safety hazaeds caused by excessive acceleration
  • Speed  and battery life will vary with the battery & motor power changes.

Kalstein medical is an integrated industry and trade company focusing on medical device R&D, production, sales and consulting services. At present, the main products that are developed and sold are wheelchairs and medical beds, old-age scooters, walkers, toilet chairs, crutches, etc. We can provide OEM or ODM services according to the different needs of customers. At the same time, we can also recommend products that are popular among local market people based on our global market data analysis and sales. Our factory can provide you with a full range of purely customized services including brand, function, material, parts, etc., to ensure that it can meet the various customized needs of users;

Our products are exported to Europe, America, South America, the Middle East and Southeast Asia and other global markets, and we have established in-depth cooperative relations with local distributors, charities, and medical rehabilitation institutions. Our professional technology and industry experience in the medical field are the Professional guarantee for cooperation and service.

Wheelchair

Kalstein medical wheelchair is our most advantageous product. We can provide wheelchairs with different functions for people with different needs, including electric wheelchairs, manual wheelchairs, wheelchairs for children with cerebral palsy, standing wheelchairs, stair climbing wheelchairs and other wheelchairs with different functions.

Electric Medical Bed

Kalstein medical electric medical bed is not only able to provide hospital beds, but also home care beds according to personal care needs. In terms of function, there are multiple functions such as electric turning, back lifting, leg lifting, lifting, and defecation to provide options to meet the needs of different scenes and users.

Manual Medical Bed

Kalstein medical manual medical bed is a cost-effective product series. According to the needs of different people, there are many functions such as turning over, lifting back, lifting legs, and releasing bowels. At the same time, to meet the needs of hospital beds, we also launched a series of nursing beds for families and individuals, giving customers more choices.

Product Production Process
  1. Purchase and inspection of raw materials and standard parts.
  2. Processing and inspection of outsourcing components.
  3. Mechanical processing and inspection of parts.
  4. Component assembly and inspection.
  5. Surface treatment and inspection of parts.
  6. Product assembly.
  7. Product inspection.
  8. Product packaging and product storage.

Note: The surface treatment baking varnish, spraying, and electroplating are all made by outsourcing.

Technical Spécifications
Model YR05442
Seat width: 45 cm
Seat depth: 45 cm
Seat height: 56cm
Backrest height:  78cm
Overall Length: 129 cm
Overall width: 70 cm
Overall height: 124 cm
Rear wheel size:  14 inches
Front wheel size:  13 inches
N/G: 20A 104KG/112 KG 32A 125/133KG
Frame material:  steel
Load: 200KG
Driving Range: 35—75km
Max Speed: 0-20 km/h
Motor: 48V 600W central differential motor (changeable 60V)
Battery: 48V 20Ah/32Ah lead Acid/60V30AH lithium battery
Parking Brake: dual rear wheel mechanical drum brake, optional electromagnetic brake and disc brake
Cushion: Red
Modifiable option: Change the car leather seat,add the rear manned seat,disc brake, electromagnetic
brake,increase the lifting leg,change to 800 watt motor.

Additional information

Weight 137 kg
