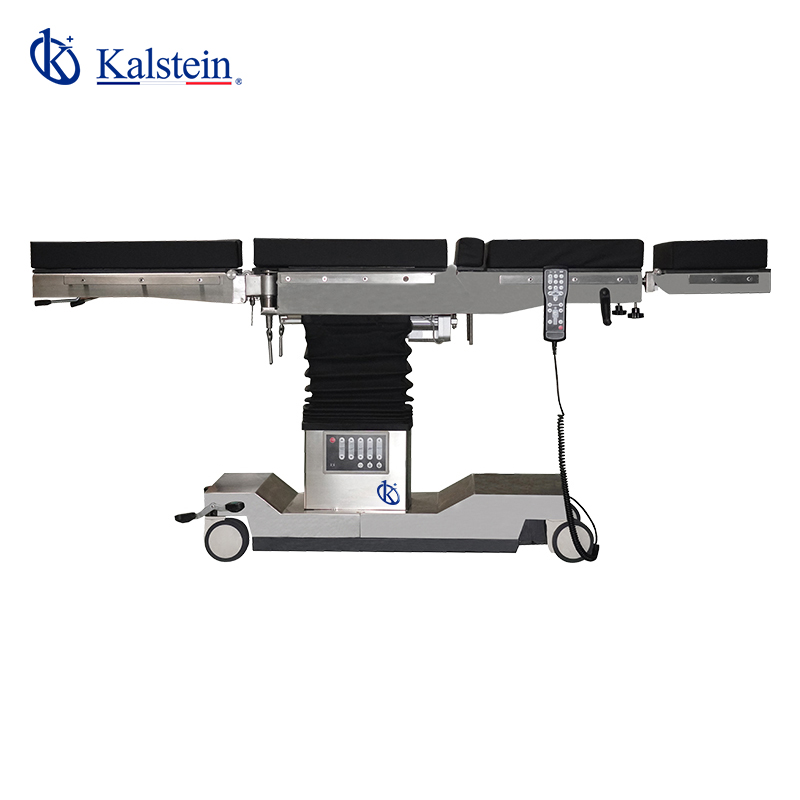

Electric Operating Table YR06229



  • This table is suitable for all general surgeries.
  • It has longitudinal moving 300mm function, very convenient for X-ray examination and C-arm photograph on different parts of body.
  • It adopts famous brand motors, smooth and silent operation.
  • The height adjustment, back section, Trendelenburg, lateral adjustment, moving 300mm are all controlled by motors.
  • The head is manual adjustment and legs section are gas spring adjustment.
  • Made of full premium 304 stainless steel.
  • Double controller system, one is hand remote controller, the other is on column.
Technical Specifications
Model YR06229
Length/width 2100mm/500mm
Height Adjustment (electric) 680-980mm
Trendelenburg (electric) ±30°
Lateral Tilt (electric) ±20°
Back Section (electric) 70°/-30°
Head Board (manual) 45°/-90°
Leg Board (manual) 15°/-90°
Table Top Longitudinal Moving (electric) 300mm
Build-in Kidney Elevator(manual) 0-120mm

Additional information

Weight 300 kg
