Description

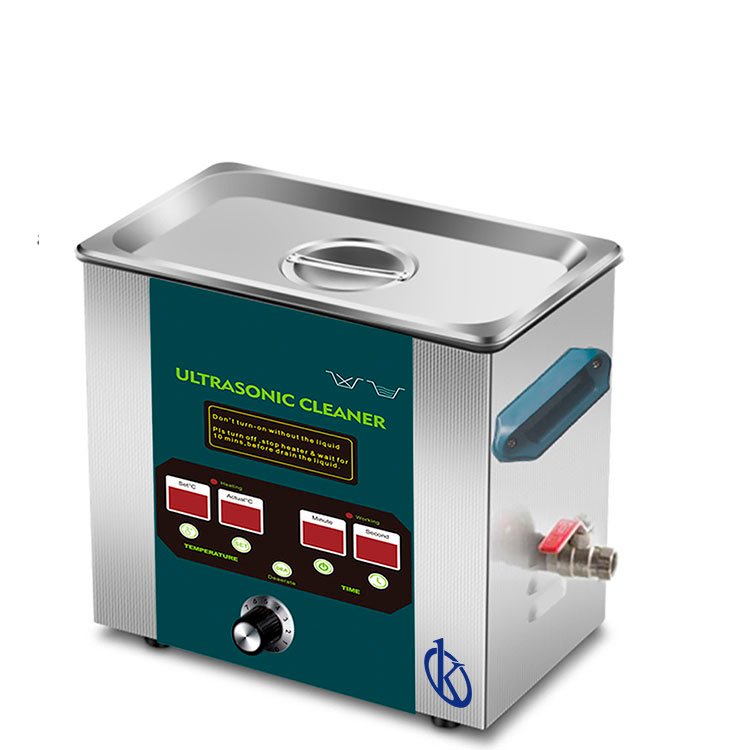

Our desktop ultrassonic cleaner capacity from 2liters to 30liters. Ultrasonic cleaning machine generates ultrasonic frequency electricity, which is converted by energy converter into high-frequency mechanical oscillation that is transferred to cleaning fluid.
Features of Dental Ultrasonic Cleaner

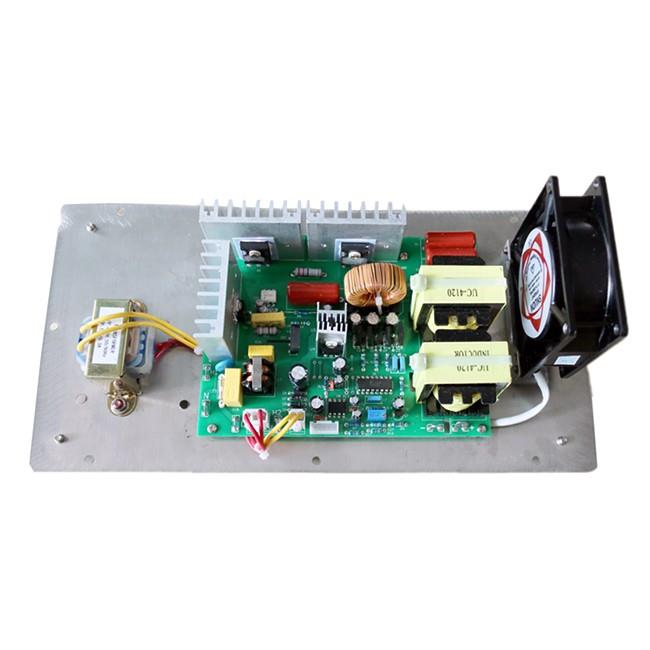

- Proprietary MCU-sweep ultrasonic generator driver circuit to present better cleaning performance and to minimize noise level.

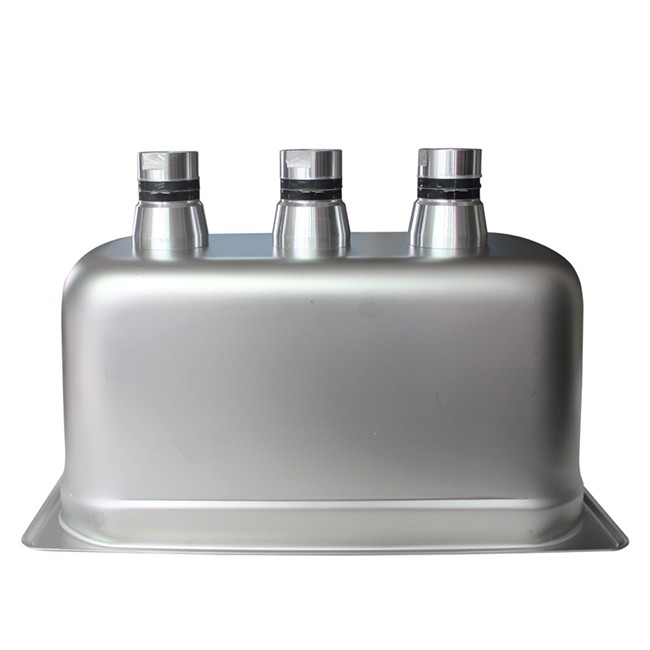

- Proprietary industrial ultrasonic transducer with high Q value and energy conversion efficiency and long service life.
- Imported high-strength glue, staple-free bonding, and long service life of tank.
- Digital timing for heating control between 1-99 minutes and temperature setting between1-80℃.
- Internal tank fabricated of 1.0mm SUS304 stainless steel to present good performance and long service life.
- Cleaning basket made of 304 stainless steel and electro-polished.
- Outer shell made of high-quality stainless steel to present good corrosion resistance.
| Model | Internal Dimensions | External Dimensions | Volume（L） | Gross
Weight(KG) |
Ultrasonic
Power(W) |
Heating
Powery(W) |
Drain valve | Frequency
(KHz) |
Time
(Min) |
Heating
Temperature(℃) |
| YR05220 | 240*135*100 | 268*170*290 | 3.2 | 6.7 | 120 | 100 | yes |
40
|
1~99
|
1~80
|
| YR05221 | 240*135*150 | 268*170*290 | 5.0 | 7.2 | 120 |
200
|
yes | |||
| YR05222 | 300*150*100 | 325*178*290 | 4.5 | 7.5 | 180 | yes | ||||
| YR05223 | 300*150*150 | 325*178*290 | 6.8 | 7.7 | 180 | 200 | yes | |||
| YR05224 | 300*240*150 | 368*270*290 | 11 | 8.5 | 240 | 300 | yes | |||
| YR05225 | 330*300*150 | 397*335*317 | 15 | 11.5 | 360 |
400
|
yes | |||
| YR05226 | 330*300*200 | 397*335*368 | 20 | 12.5 | 360 | yes | ||||
| YR05227 | 500*300*150 | 560*320*317 | 22 | 14.5 | 480 | 500 | yes | |||
| YR05228 | 500*300*200 | 560*320*385 | 30 | 16.0 | 600 | 500 | yes |
