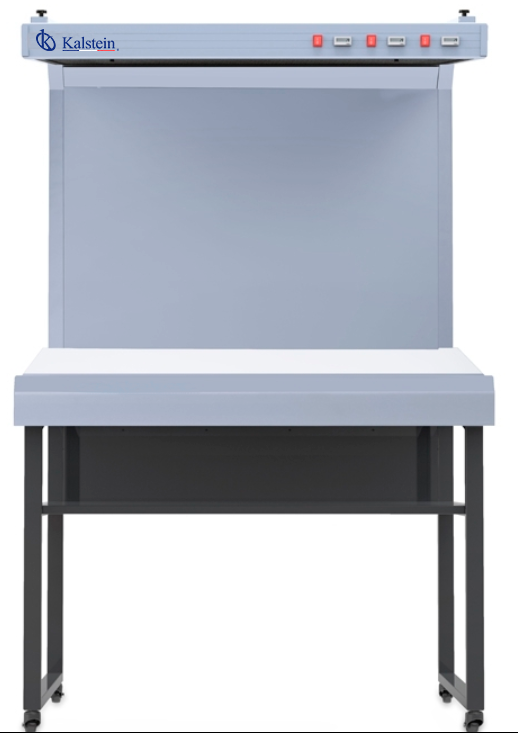

Color Proof Station Color Viewer Light Box YR05542 // YR05544

ManufacturerKalstein

Description

Model YR05542 // YR05544 light table features with upper and lower light. It can choose one or two or three light sources from D65, D50, TL84 in the upper part, which will have 4 pcs installation there. And it also can choose only one light source from D65, D50 or TL84 in the lower part, which is with 6 pcs installation there.

We offer standard light sources commonly used in the printing industry to meet ISO 3664:2009 standards.

YR05542 // YR05544 vertical standard light source color viewer is suitable for the printing workshop or proofing center with high environmental requirements. It can be applied to the printing factory with beautiful appearance, offset printing, flexo printing and gravure printing. It is also directly able to see the reflective manuscript.

YR05542 // YR05544 series vertical sample table is equipped with frequently-used lIght sources in prining industry, can meet the needs of ISO 3684:2009. It is also widely used for color checking in the feld of printing and dyeing, lextiles, plastis, hardware etc, which will provide standard enwironment for qualily checking in the process of sample comparison, production, quality inspection, acceplance ec. That is to say, it can help user improve the product qualty and market compettion.
Features
  • Comply with 1S03664 intemational standard, YR05542 // YR05544 has three modes optionisinge or double or riple light sources).
  • Use with high color-rendering index lamps. and with timer for the using time of larmp on display screen.
  • YR05542 is fine made wilth metal matenal, large size and good work manship, easy to use.
  • Equipped with frequently-used light sources in printing industry. can mee the needs of IS03664:2009.
  • YR05542 is widely used in printing sthop and sampling centers.
  • It also can check rllection file, and be used in the industry of ofset print, flexog raphygravure.
Warranty description:
  • The light source products are guaranteed for one year. If there is any product quality problem within one year, our company will be responsible for repair or replacement.
  • All of our products have standardized packaging. If the user finds the package or the product inside is damaged, please contact us immediately, so that we can handle it for you.
  • Replace professional standard light source lamp after it’s damaged;
Technical Specifications
Model YR05542 YR05543 YR05544
Light Source
Tubes D65 D65   6500K   36W D65    6500K      36W D65      6500K     36W
D50 NO D50    5000K      36W D50      5000K     36W
TL84 NO NO TL84      4000K     36W
Power  AC220V  50HZ  AC220V  50HZ  AC220V  50HZ
Worktable Size (cm) 135*90 135*90 135*90
Vertical Size (cm) 135*217 135*217 135*217
External Size (cm) 135*90*217 135*90*217 135*90*217
Lower Light source Optional (ONLY ONE)
D65 D50 TL84 6 PCS

Additional information

Weight 119 kg
Model

YR05542, YR05543, YR05544
