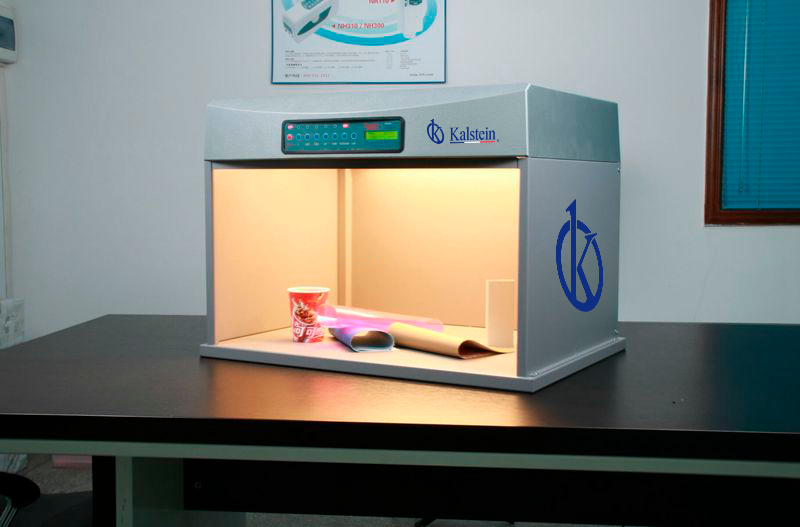

Color Light Box YR05520 // YR05523

ManufacturerKalstein

Description

YR05520 // YR05523 color light box is our updated version, and it can accommodate up to 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
YR053445 // YR053448 color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Product Features
  • TILO Color light box render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
  • Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
  • Easy to operate by using individual switches for each light source.
  • Elapsed time meter for tracking optimal lamp replacement.
  • Automatically alternating among light sources.
  • No warm-up time or flickering which insures quick and reliable color judgment.
  • Economic power consumption and low heat generation for high light efficiency.
  • The dimension can be made by customized.
Technical Specifications
Model YR05520 YR05521 YR05522 YR05523
Light source D65, TL84, UV, F, CWF, TL83 D65, TL84, UV, F, CWF D65, TL84, UV, F, CWF, TL83 D65, TL84, UV, F, CWF
Dimensions(W*D*H) 695x552x502 mm 695x552x502 mm 695x552x502 mm 695x552x502 mm
Inner Size(W*D*H) 665x490x360 mm
Voltage 220V/50Hz – 110V/60Hz
Light sources Configuration D65 2 PCS 2 PCS 2 PCS 2 PCS
TL84 2 PCS 2 PCS 2 PCS 2 PCS
F 4 PCS 4 PCS 4 PCS 4 PCS
UV 1 PCS 1 PCS 1 PCS 1 PCS
CWF 2 PCS 2 PCS 2 PCS 2 PCS
TL83 2 PCS / 2 PCS /
Weight 19.5 kg 19.5 kg 28.9 kg 28.9 kg
Light Source Specifications
Light Source Color Light Box Application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent)American Standard 4150 18
F “Sun-setting Light Yellow” incandescent light source

(imitation of sunset)

2700 40
UV Viewing under ultraviolet light to detect and evaluate

optical brighteners or fluorescent pigments

Wavelength:365nm 20
TL83 Applied to stores in Europe 3000 18
Remarks: Optional tubes D50, D75, U30, U35, A

Additional information

Weight N/A
Model

YR05520, YR05521, YR05522, YR05523
