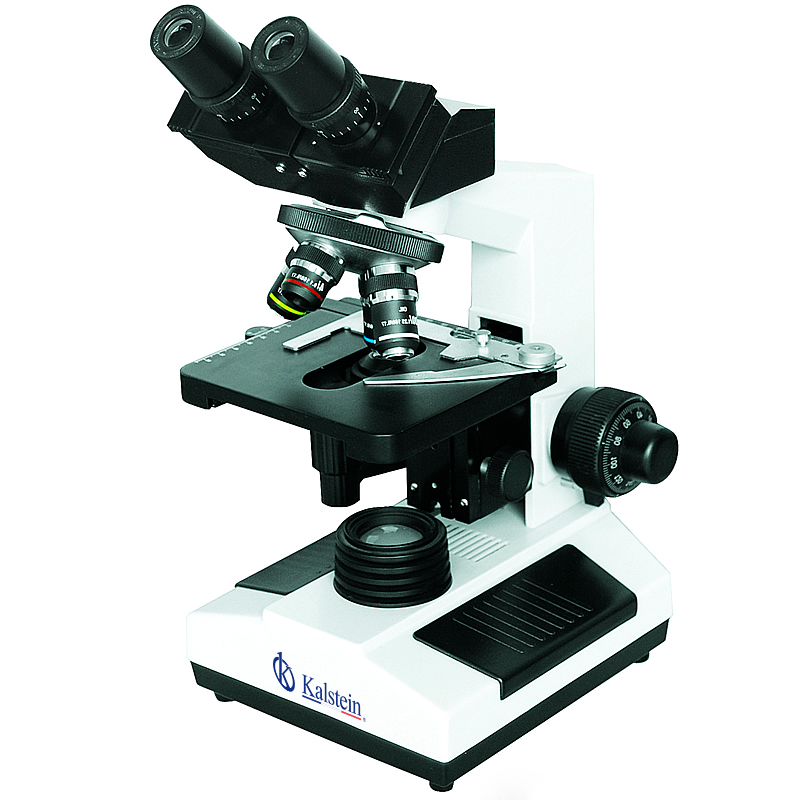

Binocular Student Biological Microscope YR0242 // YR0242-1

ManufacturerKalstein

Description

  • Anti-mould System Head Available
  • 195mm Achromatic Objectives, Mechanical Tube Length 160mm
  • WF10x/18mm, WF16x/11mm Wide Field Eyepiece
  • Monocular, Binocular, Trinocular Head Optional
  • Low Position Coaxial Coarse & Fine Focus System
  • Double Layer Mechinal Stage
Technical Specifications
Model YR0242 YR0242-1
Magnification 40x~1000x
Head Sliding Binocular Head, 45° Inclined o
Sliding Binocular Head, 45° Inclined, Anti-Mould System o
Eyepiece Wide Field WF10x/18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
Focusing Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit
Rubber Cover On Focusing Knob o
Condenser N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Yellow, Green
Light Source Plan-Concave Mirror
Built-in Illumination 6V20W Halogen Lamp, 100~240V
YR0242 Biological Microscope Optional Accessories
Head Sliding Trinocular Head, 45° Inclined, Anti-Mould System YR0242-1-op1
Seidentopf Binocular Head, 30° Inclined, Anti-Mould System YR0242-1-op2
Seidentopf Trinocular Head, 30° Inclined, Anti-Mould System YR0242-1-op3
Eyepiece Wide Field Eyepiece P16x/11mm YR0242-1-op4
Nosepiece Quintuple Nosepiece YR0242-1-op5

Additional information

Weight 6,5 kg
Model

YR0242, YR0242-1
