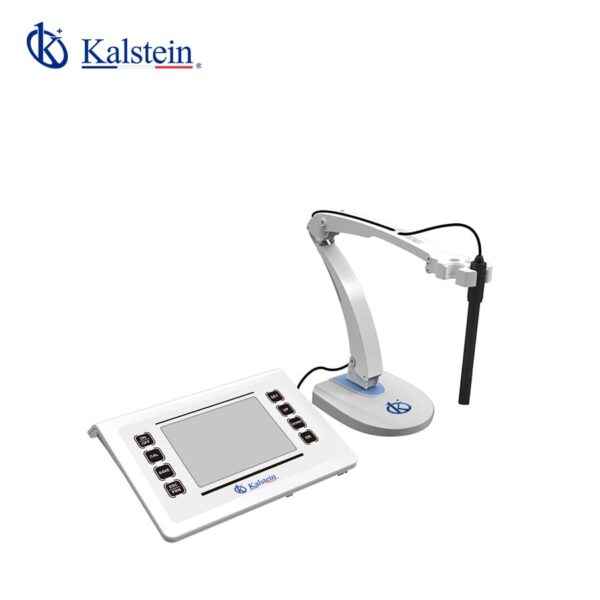

Benchtop Dissolved Oxygen Meter YR01833

Tracking

Fabricante: Kalstein

Precision laboratory dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 9 options, accuracy: 0.2mg/L.

• Precision laboratory dissolved oxygen meter is equipped with a large backlit LCD display.

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations eliminate the measurement error.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-Read function senses and locks the measurement endpoint.

• Calibration due alarm prompts user to calibrate the meter regularly.

• Setup menu allows setting the number of calibration points, resolution, stability criteria, date

and time, etc.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface for data transfer and timed interval readings.

Model	YR01833
Dissolved Oxygen
Range	0.00 to 20.00mg/L
Resolution	0.01, 0.1mg/L, selectable
Accuracy	±0.2mg/L
% Saturation of Oxygen
Range	0.0 to 200.0%
Resolution	0.1, 1%, selectable
Accuracy	±2.0%
General Specifications
Calibration Points	1 or 2 points
Temperature Compensation	0 to 50°C/32 to 122°F, automatic
Pressure Correction	60.0 to 112.5kPa/450 to 850mmHg, manual
Salinity Correction	0.0 to 50.0g/L, manual
Stability Criteria	Low or high
Calibration Due Alarm	1 to 31 days or off
Hold Function	Manual or auto-endpoint
Memory	Stores up to 500 data sets
Output	USB communication interface
Connector	6-pin nimi-DIN
Display	Custom LCD (125×100mm)
Power	DC5V, using AC adapter, 220V/50Hz
Dimensions	210(L)×188(W)×60(H)mm
Weight	1.5kg

Order Code	Accessories
YR01833	DO100 dissolved oxygen electrode
	DO electrolyte solution
	DO membrane cap
	USB cable
	DC5V power adapter

Weight	1,7 kg
