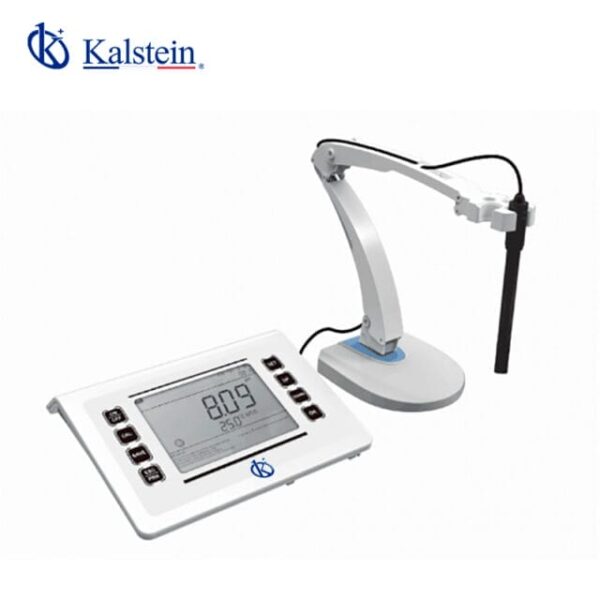

Benchtop Conductivity / TDS / Salinity / Conductivity Ash Meter YR01827

Manufacturer: Kalstein

Description

Professional benchtop conductivity meter contains 5 measurement modes, the meter is suitable for measuring the conductivity, TDS, salinity, resistivity, conductivity ash, accuracy: 0.5% F.S.

Features:

• Professional benchtop conductivity meter is equipped with a 7 inch TFT display.

• 1 to 3 points calibration with automatic recognition for conductivity standards.

• Selectable cell constant, reference temperature, TDS factor, linear/non-linear/pure water

compensations, percentage/seawater/practical salinity measurement modes.

• Automatic temperature compensation corrects conductivity measurment to reference

temperature.

• Auto-Read function senses and locks the measurement endpoint.

• Timed Interval Readings sends the measurement data to a PC or printer.

• Limit Alarm automatically alerts when reading exceeds the specified range.

• Calibration due alarm prompts user to calibrate the meter regularly.

• Calibration report shows the date, time, calibration point and factor.

• Password protection prevents the unauthorized calibration and settings.

• Expanded memory stores or recalls up to 1000 data sets.

• Reset function automatically resumes all settings back to the factory defaults.

Model YR01827
Conductivity
Range 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Resolution 0.001, 0.01, 0.1, 1
Accuracy ±0.5% F.S.
Calibration Points 1 to 3 points
Calibration Solutions 10µS, 84µS, 1413µS, 12.88mS, 111.8mS
TDS
Range 0 to 10.00, 100.0, 1000mg/L, 10.00, 200.0g/L
Resolution 0.01, 0.1, 1
Accuracy ±1% F.S.
TDS Factor 0.1 to 1.0 (default 0.5)
Salinity
Range 0.00 to 80.00ppt, 0.00 to 42.00psu, 0.00 to 8.00%
Resolution 0.01, 0.1, 1
Accuracy ±1% F.S.
Resistivity
Range 0.00 to 30.00MΩ
Resolution 0.01, 0.1, 1
Accuracy ±1% F.S.
Conductivity Ash
Range 0.00 to 100%
Accuracy ±1% F.S.
Measurement Modes Refined sugar or raw sugar
Temperature
Range 0 to 105°C/32 to 221°F
Resolution 0.1°C/0.1°F
Accuracy ±0.5°C/±0.9°F
Offset Calibration 1 point
Calibration Range Reading ±10°C
General Specifications
Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
Temperature Coefficient Linear (0.0 to 10.0%/°C), non-linear, pure water
Reference Temperature 20/25°C
Cell Constant 2-pole electrodes (K=0.1, 1, 10) or 4-pole electrode
Hold Function Manual or auto-endpoint
Stability Criteria Standard or high-accuracy
Calibration Due Alarm 1 to 31 days or off
Interval Readings 10, 30, 60 seconds, 10, 30 minutes or off
Password Protection 4 digits
Memory Stores up to 1000 data sets
Output USB communication interface
Connector 6-pin nimi-DIN, 3.5mm jack socket
Display 7” TFT LCD
Power DC12V, using AC adapter, 220V/50Hz
Dimensions 240(L)×220(W)×80(H)mm
Weight 1.7kg
Order Code Accessories
YR01827
CON-1 conductivity electrode
TP-10K temperature probe
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm
DC12V power adapter
YR01827-2
CON-0.1 conductivity electrode
CON-1 conductivity electrode
TP-10K temperature probe
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm
DC12V power adapter
YR01827-1
CON-1 conductivity electrode
CON-10 conductivity electrode
TP-10K temperature probe
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm
DC12V power adapter

Additional information

Weight 1,7 kg
Modelo

YR01827, YR01827-1, YR01827-2
