• 7” capacitive LCD color touch screen, fully automatic controlled, easy to operate on.

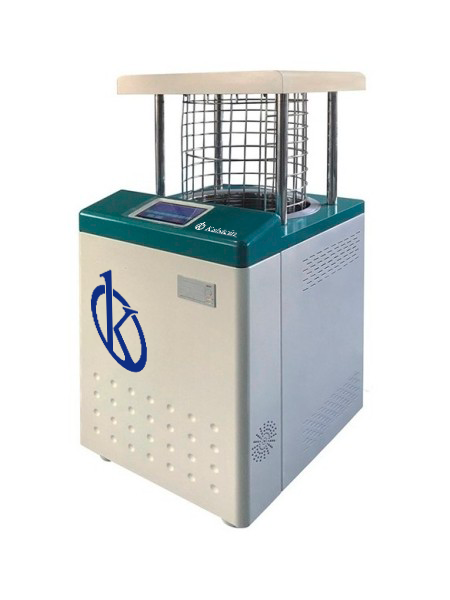

• Lifting type door, which is more convenient to place and fetch the objects from the autoclave.
• Dynamically showed the temperature, pressure, time, vacuum rate, drying, alarm, water level, and the full cycle.
• The whole procedure from water inlet, pulse vacuum, heating, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.
• Intellectualize vacuum drying system to guarantee the residual humidity of instrument less than 0.2% .
• The vacuum rate can reach -0.081Mpa, it fits various instruments, including packed, unpacked, dressings, solid, A, B type hollow whether multi-apertures or inset pipes.
• With 7 cycles: Instrument, Textile, Rubber, Liquid, User-defined, vacuum leakage test, BOWIE & DICK test.
• Equipped with the PT/TT testing connector, easy to run the testing.
• Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.2 um, which ensure the air is sterile, prevent the contamination.
• Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing.
• Adopted independent steam generator, with high heating efficiency.
• Steam-water inner circulation system: No steam discharge and the environment for sterilizing will be clean and dry.
• Automatically shut off with beep reminding after sterilization.
• Internal material: Stainless steel 304, External material: Stainless steel 304 and electrostatic powder coated stainless steel.
• Equipped with a printer.
• Accessories: Drainage hoses, drain(exhaust) bucket, stainless steel baskets.

Safety Protection Device

• Heater protection
• Anti-dry heating
• Safety interlock door: The program can’t start up when the door is unlocked under normal condition. Door is locked and the door can’t open when pressure in chamber.
• Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.
• Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.
• Automatic release safety valve.
• Over current protect.
• Electric safety protective device: Fuse protects control units when short circuit or overload occurs.
• Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.
• Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.

Technical Specifications
