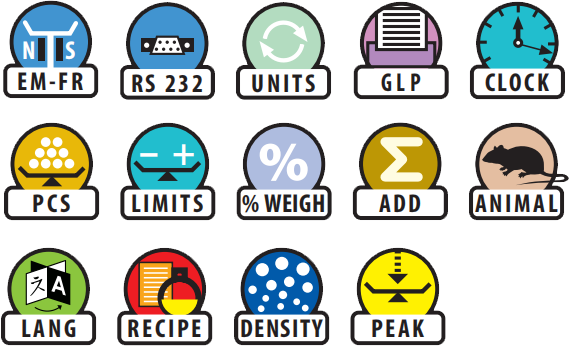

Description
- Recipe database: 99 datas can be stored
- Automatic internal calibration
- Tare/counting/percentage test/animal weighing
- Baud rate is adjustable/ Density function
- Unit conversion (g/mg/ct/oz)…
- Multi-Language : English/ German/French/Italian/Spanish/Portuguese
- Keep weight values in GLP/ISO format,Includes date, time, and serial number
- Plastic protection cover for keypad
- Sensitivity/speed adjustable
- Overload alarm/fault alarm/level indicator
Optional Accessories
- ION-A15 Static Eliminator
- Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)
- DPP-250-BT Bluetooth printer for system (AC013)

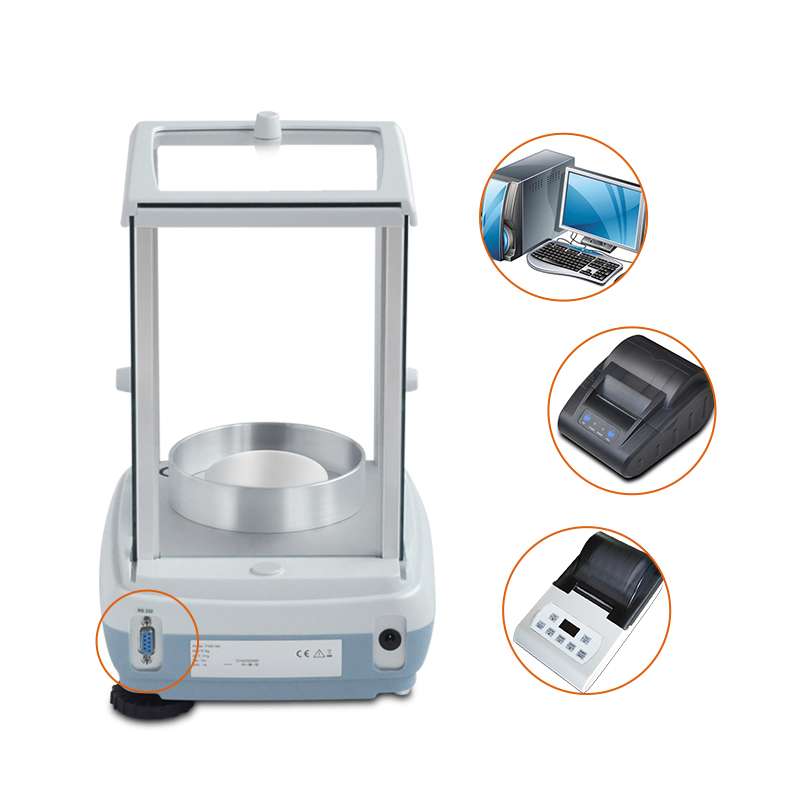

- TLP-50 serial printer with date/time (C054)
- DPP-250 serial printer (AC007)
- STAT serial printer with statistical function (AC022)
- Alphanumeric external keyboard (AC005)
- Serial to USB converter (E1002)
- Serial cable for serial output to printer or computer (E743)
- Factory calibration certificate (BL0333)
Technical Specifications
| Model | YR05562 | YR05563 | YR05564 | YR05565 | YR05566 | YR05567 | ||||
| Capacity(g) | 62g/120g | 82g/220g | 102g/220g | 122g | 162g | 210g | ||||
| Resolution(g) | 0.01mg/0.1mg | 0.01mg | ||||||||
| Min weighing(g) | 60mg | 100mg | 100mg | |||||||
| Stable Time | ≤6s | |||||||||
| Display | LCD（white back light with black font） | |||||||||
| Pan size | Φ80mm | |||||||||
| Operation temp | 5-25℃ 20-80% humidity | |||||||||
| Repeat ability | 0.03mg/0.1mg | 0.05mg/0.1mg | 0.05mg | 0.05mg | ||||||
| Liner | ±0.08/±0.2mg | ±0.1/ ±0.2mg | ±0.1mg | ±0.1mg | ||||||
| Draft shield size | 152mm×160mm×225mm | |||||||||
| Cal.weight | Internal Calibration | |||||||||
| Option | RS232C & RS485、Printer | |||||||||
| Dimension | 345×215×345mm | |||||||||
| G.N . weight | 8.25kg/5.8kg | 8.3kg/5.85kg | ||||||||
| IONISER | Option | Standard | ||||||||
| Language | Italian/English/Portugues/Deutsch/France/Espanol | |||||||||
| Packing Size | 510x400x620mm(No pallet) | |||||||||
| Power Supply | 110-230V 50/60Hz Out DC 12V 1A | |||||||||
