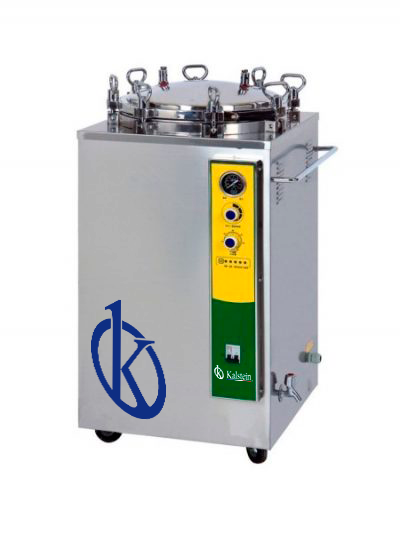

Low Price Vertical Pressure Steam Sterilizer YR05682 // YR05687

Manufacturer:ย Kalstein

$1.223,64$3.680,82

Manufacturer:ย Kalstein

Product Description

  • Fully stainless steel 304 structure.
  • Microprocessor control,indicator light indicates working status: pressure, time, temperature.
  • Auto discharge the cool air, and steam discharging automatically after sterilizing.
  • Double scale indication pressure gauge.
  • Wing nut locking mechanism.
  • Self-inflating type seal.
  • Automatically shut off with beep reminding after sterilization.
  • With two stainless steel sterilizing baskets.
  • Standard PT/TT test interface is provided for convenient testing.
  • Emergency exhaust valve.
Safety Protection Device
  • Safe protection of water lacking.
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature&over pressure auto-protection.
  • Over current protector.
  • Safety valve of auto release against over-pressure.
Technical Specifications
Model YR05682 YR05683 YR05684 YR05685 YR05686 YR05687
Max. working pressure 0.23Mpa
Working pressure 0.22Mpa
Working temperature 134โ„ƒ
Working temperature range 105 โ€“ 134โ„ƒ
Sterilization time 0 โ€“ 60 min
Heat average โ‰คยฑ 1โ„ƒ
Type Vertical Steam Sterilizer
Control ย Microprocessor
Display Indicator light
Light Working status indicator light
Water level indicator light
Sterilization basket 2 PCS
Language English
Voltage 110/220V, 50/60Hz, single-phase
Chamber Size(mm) 35L / ร˜318ร—450 50L / ร˜340ร—550 75L / ร˜400ร—600 100L / ร˜440ร—650 120L / ร˜480ร—660 150L / ร˜510ร—740
Outer Size(mm) 450ร—450ร—1010 510ร—470ร—1130 560ร—560ร—1130 560ร—560ร—1250 600ร—640ร—1140 670ร—690ร—1130
Packing Size(mm) 570ร—570ร—1150 590ร—590ร—1280 650ร—650ร—1280 680ร—680ร—1370 730ร—730ร—1270 760ร—760ร—1270
G.W. / N.W. 72 kg / 56 kg 88 kg / 68ย kg 100 kg / 80ย kg 110 kg / 85 kg 125kg / 100kg 140kg / 110kg
Power 2.5 KW 3.0 KW 4.5 KW 4.5 KW 6.0 KW 6.0 KW

Additional Information

Weight N/A
Dimensions N/A
Model

YR05682, YR05683, YR05684, YR05685, YR05686, YR05687
