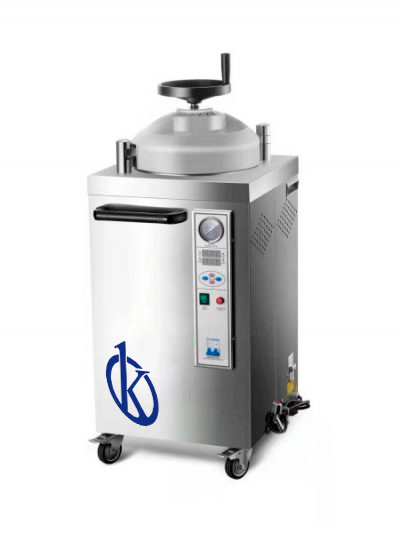

Hand Wheel Type Autoclave Vertical Sterilizer YR05661 // YR05664

Manufacturer:ย Kalstein

$1.542,42$3.084,84

Manufacturer:ย Kalstein

Product Description

  • Fully stainless steel 304 material.
  • Microcomputer control heating, air release, sterilization, pressure, temperature, time and steam release.
  • LED digital display sterilization temperature and time.
  • Hand wheel quick open door.
  • Double safety interlocking system to ensure safe.
  • Tempered glass anti-scald protection.
  • Sound-light alarm when sterilization finished.
  • Drying function and printer can be added if need.
Safety Protection Device
  • Safety protection of water lacking.
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature & over pressure auto-protection.
  • Over current protector.
  • Door safety interlock device.
  • Safety valve of auto release against over-pressure.
Technical Specifications
Model YR05661 YR05662 YR05663 YR05664
Working pressure 0.22Mpa
Working temperature 100 โ€“ 134โ„ƒ
Sterilization time 0-9999 min
Accuracy of temperature display 0.1โ„ƒ
Heat average โ‰คยฑ1โ„ƒ
Type Vertical Steam Autoclave
Control Microprocessor
Display Digital display
Door Hand wheel quick open door
Steam generator Stainless steel 304
Material Fully stainless steel 304
Loading 1 pcs stainless steel drum
Language English
Voltage 110-220V. 50/60Hz
Optional ย Drying function, Printer
Chamber Size(mm) 35L / ร˜318ร—420 50L / ร˜318ร—530 75L / ร˜388ร—480 100L / ร˜388ร—630
Outer Size(mm) 500ร—500ร—900 520ร—500ร—1000 570ร—570ร—1100 570ร—570ร—1200
Packing Size(mm) 550ร—540ร—1000 570ร—550ร—1090 620ร—620ร—1210 620ร—620ร—1310
G.W. / N.W. 65/44 kg 73/49 kg 91/71 kg 103/74 kg
Power 2.5 kw 2.5 kw 3.5 kw 4.0 kw

Additional Information

Weight N/A
Dimensions N/A
Model

YR05661, YR05662, YR05663, YR05664
