Polarizing Microscope YR0261
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives 4x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
| Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
| Filter | Netural Filter ND25 | YR0261-op1 |
| Netural Filter ND26 | YR0261-op1 | |
| Adapter | Photo Adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

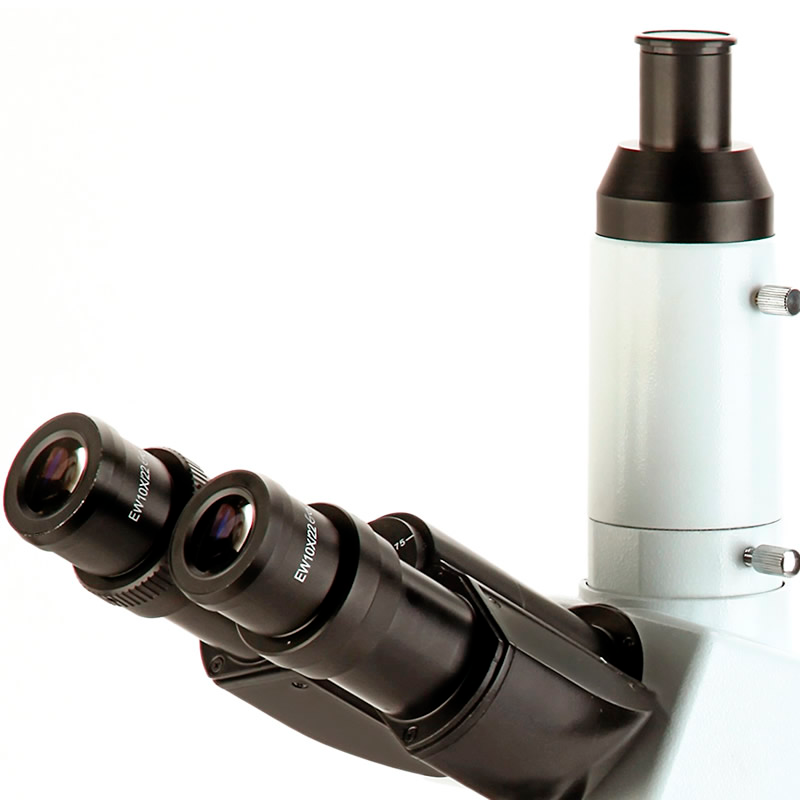

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Plan Eyepiece With Scale of Crosshair | ||
| Plan Eyepiece With Cross | ||
| Plan Eyepiece With Gridding | ||
| Objective | Strainfree Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W.D.17.3mm | ||
| 10x/0.25/∞/0.17 W.D.10mm | ||
| 40x/0.65/∞/0.17 W.D.0.54mm | ||
| 100x/1.25/∞/0.17 W.D.0.13mm | ||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |
| Switch Between Orthoscopic And Conoscopic Observation | ||
| Bertrand Lens Postion Adjustable | ||
| Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||

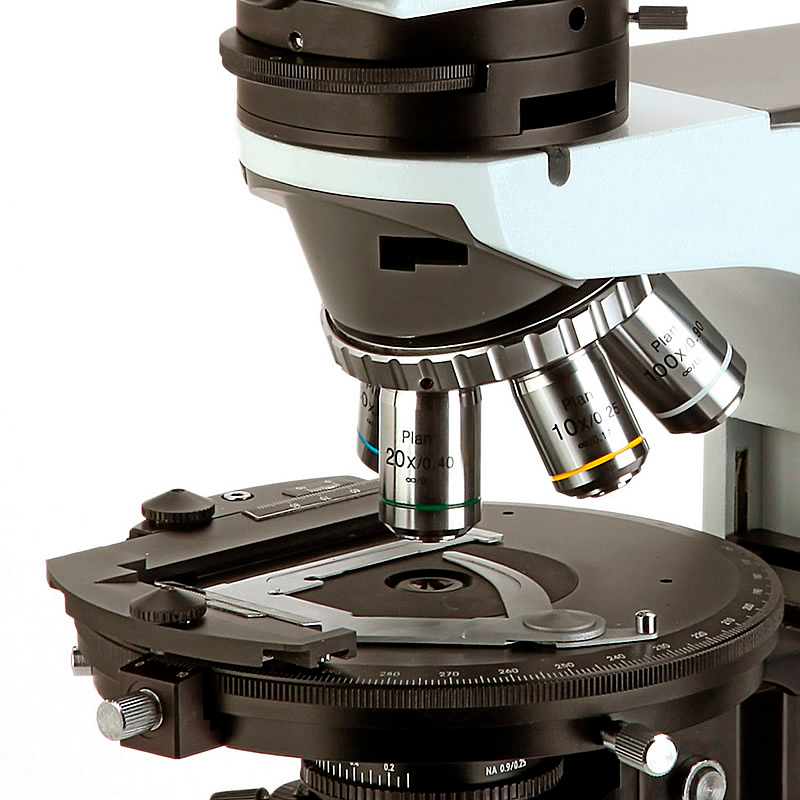

| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
| 360° Scale, Minimum Division 1° | ||
| Minimum Reading 6′ By Means of Vernial Scale | ||
| 45° Click Stop Knob | ||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

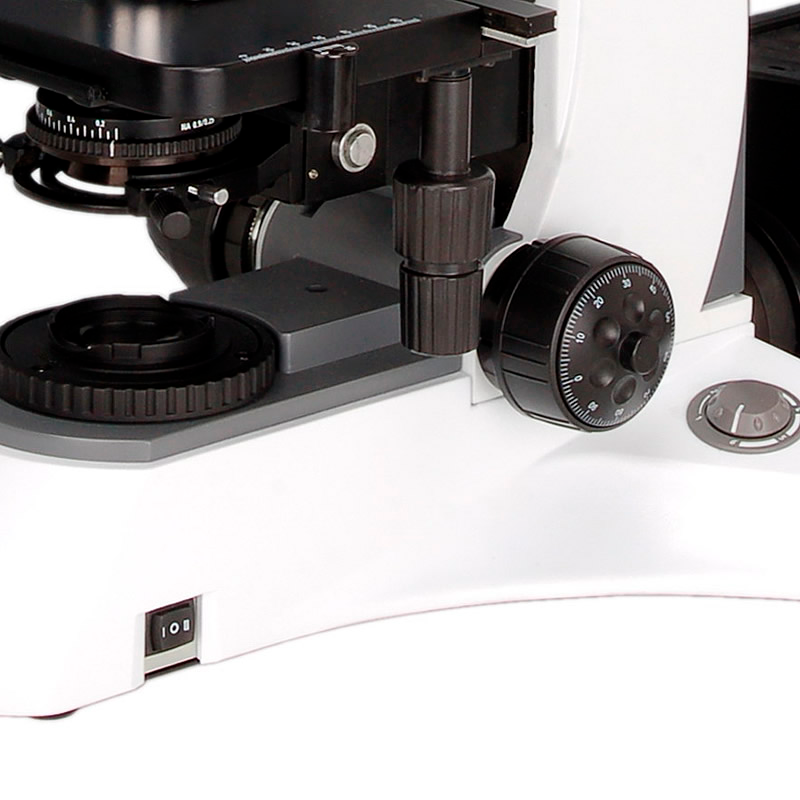

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
| Polarizer | 360° Rotatable, 0° Position Adjustable | |
| Filter | Blue Filter, Dia.45mm | |
| Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable | |
Additional Information
| Weight | 16,5 kg |
|---|
