Internal Calibration Analytical Balance YR05568 // YR05572
Manufacturer: Kalstein
Product Description
The YR05569 // YR05572 High Performance Balance Series includes analytical balances with the highest measurement performance. They are equipped with a highly integrated load cell that provides high stability, is not changed by temperature and time, and has a fast response capability due to reduced mass and reduced number of components.
The YR05569 // YR05572 balance has an automatic internal calibration function in standard configurations to ensure that measurements are always accurate and truly unaffected by ambient temperature changes.
The maximum weight of YR05569 // YR05572 series analytical balance is 310g/410g/510g/610g. All models feature backlit LCD displays and windshields that protect the large internal measuring chambers.
Each scale is equipped with an RS232 output interface.
Function
- Internal calibration
- LCD(White back light with black font)
- One key/Time trigger internal calibration
- Electromagnetic force sensor
- Glass draft shield with 3 sliding doors for easy access to the items being weighed
- Tare function/Counting/Percentage
- Unit conversion(g/mg/ct/oz)…
- Sensitivity/Speed set
- Overload alarm/Fault alarm/Level indicator
Option: Static Eliminator
Technical Data
- Range drift (+10… +30°C): +/– 2ppm/°C
- Dimensions: length×width×height (mm): 345×215×345
- Weighing room size: length × width × height (mm): 162 × 171 × 225

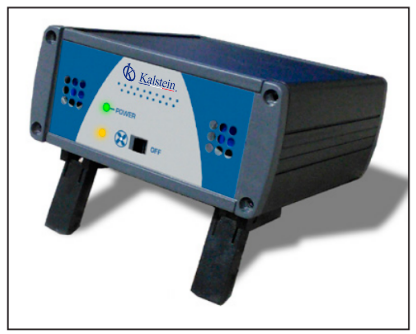

- External electronic box size: length × width × height (mm): 175 × 105 × 50 (mm), weight 500 grams
- Power supply 110-230 Vac, 50/60 Hz: output 24 V / 500 mA / 13 VA
- Net weight: 7 kg
Optional Accessories
- ION-A15 Static Eliminator
- Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)
- DPP-250-BT Bluetooth printer for system (AC013)
- TLP-50 serial printer with date/time (C054)
- DPP-250 serial printer (AC007)
- STAT serial printer with statistical function (AC022)
- Alphanumeric external keyboard (AC005)
- Serial to USB converter (E1002)
- Serial cable for serial output to printer or computer (E743)
- Factory calibration certificate (BL0333)
Technical Specifications
| Model | YR05568 | YR05569 | YR05570 | YR05571 | YR05572 |
| Calibration | Internal / External Calibration | ||||
| Capacity (g) | 220 g | 310g | 410g | 510g | 610g |
| Resolution (g) | 0.1mg | ||||
| Min weighing (g) | 0.4mg | ||||
| Stable Time | ≤4s | ||||
| Display | LCD(white back light with black font) | ||||
| Pan size | Φ80mm | ||||
| Operation temp | 5-35℃ | ||||
| Repeat ability | 0.1mg if weight ≤ 220g 0.3 mg from 220g to 310g 0.35mg from 310g to 610g | ||||
| Liner | ± 0.5mg | ||||
| Draft shield size | 162mm×171mm×225mm | ||||
| Cal.weight | External（Internal） Calibration | ||||
| Interface | RS232C(Standard)/RS485/Printer(Optional) | ||||
| Dimension | 345×215×345mm | ||||
| N . weight | 7 kg | ||||
Additional Information
| Weight | 8,3 kg |
|---|---|
| Model | YR05568, YR05569, YR05570, YR05571, YR05572 |
