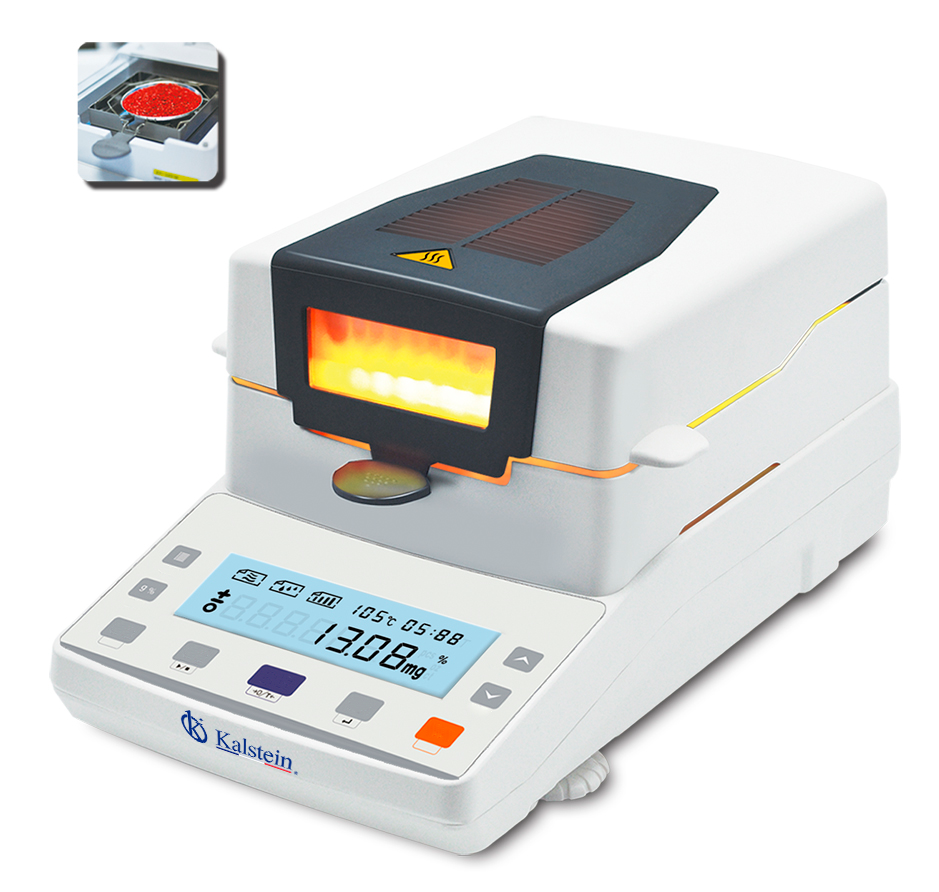

Halogen Moisture Analyzer YR05552 // YR05555
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
- Halogen lamp/HBM sensor
- Aluminum shell/Stainless steel chamber
- LCD（White back light with black font）
- Temperature/Time set
- The percentage of moisture content/dry residual
- Store historical set
- Option: Aluminum box/Printer/Grinder
Technical Specifications
| Model | YR05552 |
YR05553 | YR05554 | YR05555 |
| Capacity | 110g | |||
| Readability | 0.01g | 0.005g | 0.002g | 0.001g |
| Operating Temp | 5℃-35℃ | |||
| Display | LCD(White back light with black font) | |||
| Calibration | External Calibration | |||

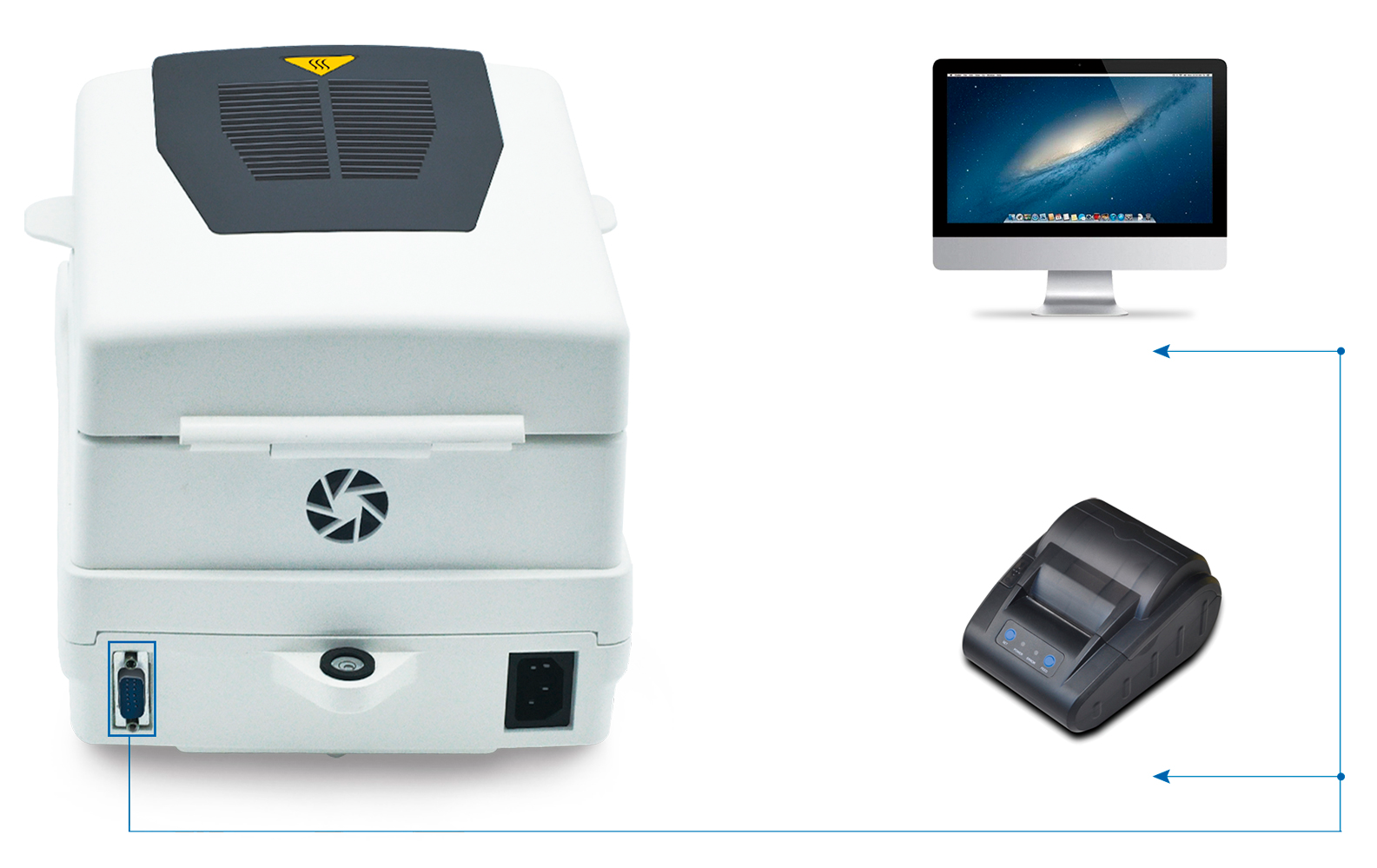

| Interface | RS232/RJ45/USB… | |||
| Pan Size | Ø90mm | |||
| Packing Size | 490x350x360mm | |||
| Gross Weight | 7.5kg | |||
| Heating Source | Halogen Lamp-1 | |||
| Temp.Sensor | PT100 | |||
| Temp.Range | 40℃-199℃ | |||
| Temp.Step | 1℃ | |||
| Moisture Range | 0.00%-100.00% | |||
| Moisture Readability | 0.20% | 0.10% | 0.04% | 0.01% |
| Dry Range | 100.00%-0.00% | |||
| Dry Readability | 0.20% | 0.10% | 0.04% | 0.01% |
| Temp Setting | 40℃-199℃ By 1℃ Step | |||
| Time Setting | 1-99min By 10s | |||
| Number Of Storage | 15 | |||
| Heater | 220V ±15% 50HZ/110V±15% 60HZ/400W | |||
| Balance | Input:220V 50HZ/110V 60HZ Output:9V | |||
Additional Information
| Weight | N/A |
|---|---|
| Model | YR05552, YR05553, YR05554, YR05555 |
